Removal (CANADA Only)

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument panel assembly. REMOVAL AND INSTALLATION .
Disconnect the harness connector from the dongle unit (1).
Remove screw (A) and dongle unit (1) from heating and cooling unit assembly (2).

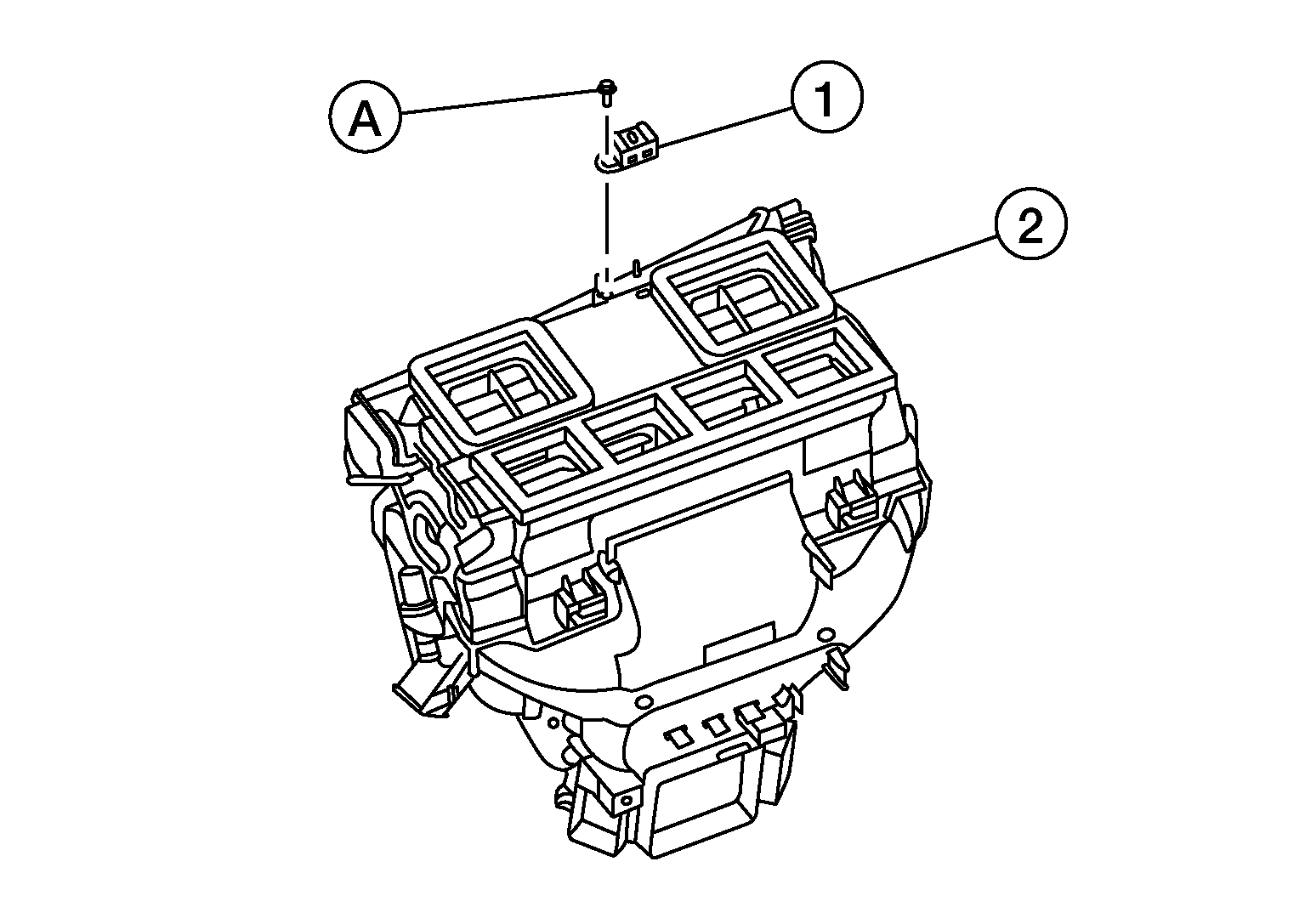

Fig 1: Locating Dongle Unit Screw
Courtesy of NISSAN NORTH AMERICA, INC.
