Exploded View With Torque Specifications

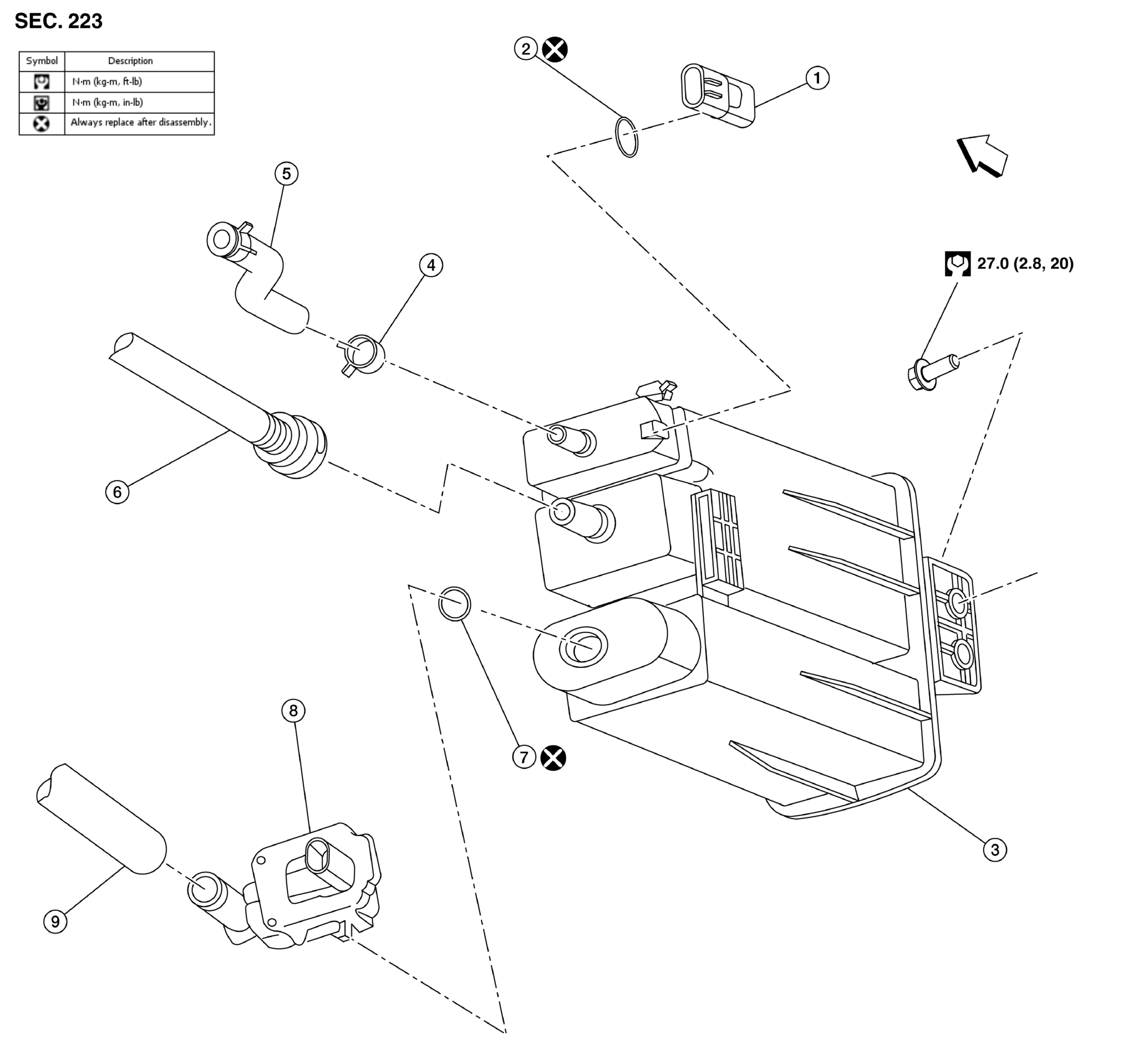

Fig 1: EVAP Canister Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP Canister Control Pressure Sensor	2.	O-Ring	3.	EVAP Canister
4.	Hose Clamp	5.	EVAP Canister Purge Hose	6.	EVAP Canister Vent Line
7.	O-Ring	8.	EVAP Canister Vent Control Valve	9.	EVAP Canister Vent Control Valve Hose
	Front
