Exploded View - Rear Wheel Sensor

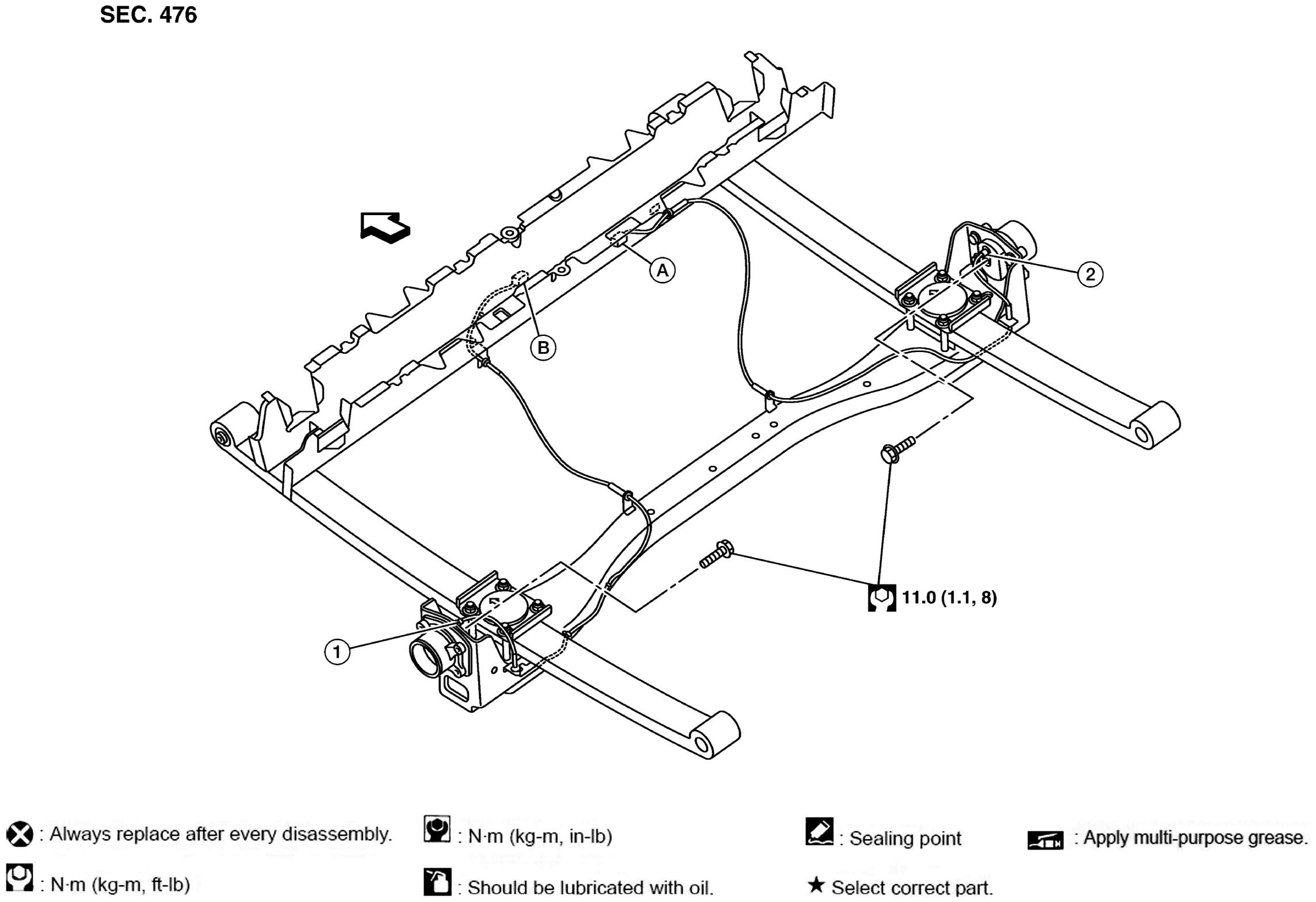

Fig 1: Exploded View Of Rear Wheel Sensor With Torque Specifications
GNSAWFIA0985ZZ-985ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Rear wheel sensor (LH) 2. Rear wheel sensor (RH) A. Rear wheel sensor harness connector (RH)
B. Rear wheel sensor harness connector (LH) ARROW Front
