Exploded View

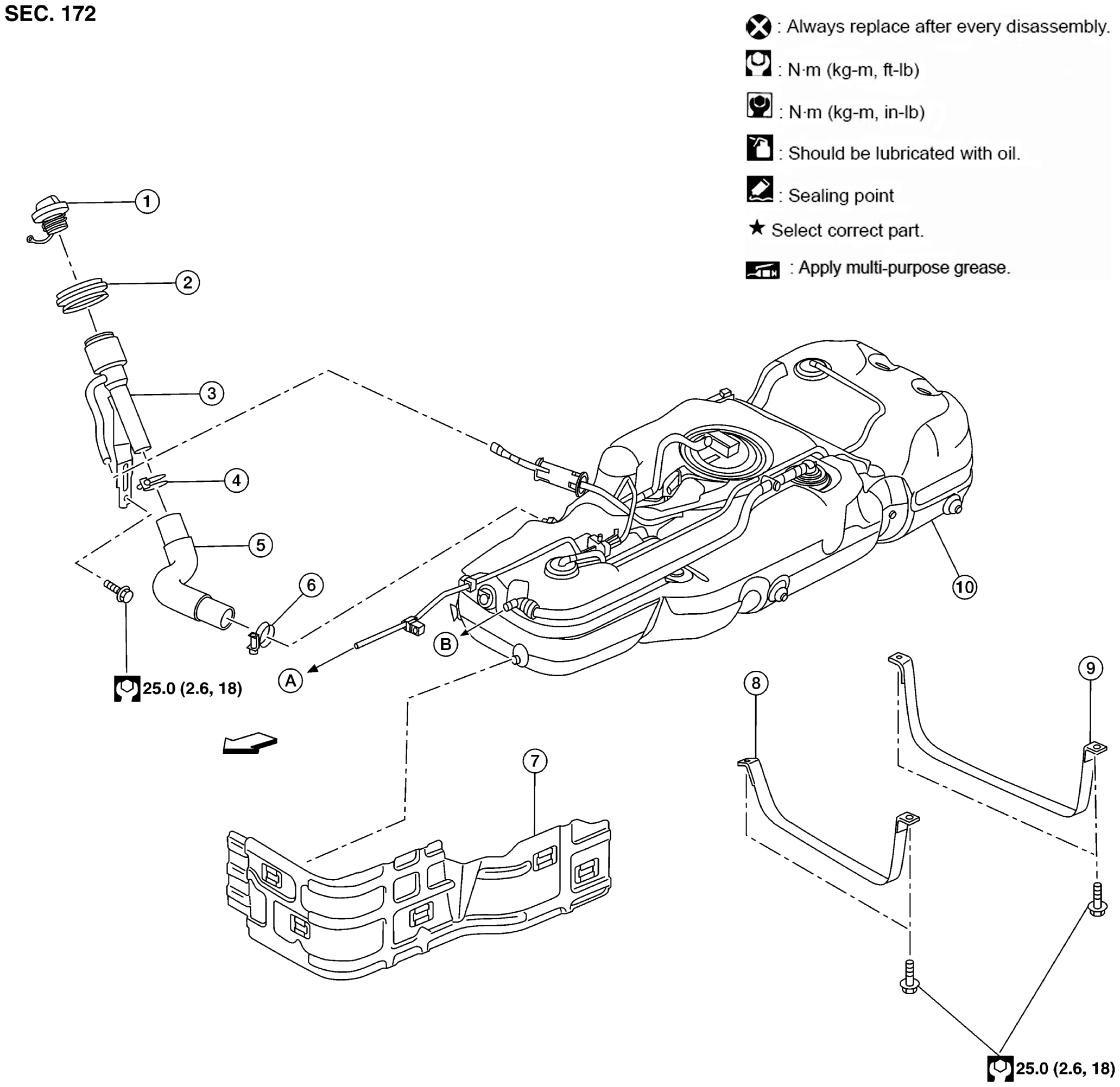

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel filler cap	2.	Grommet	3.	Fuel filler tube
4.	Clamp	5.	Fuel filler hose	6.	Clamp
7.	Protector	8.	Fuel tank mounting band (front)	9.	Fuel tank mounting band (rear)
10.	Fuel tank	A.	To Engine	B.	To EVAP canister
	Front
