Removal And Installation: Removal

  1. Disconnect the negative battery terminal. Refer to REMOVAL AND INSTALLATION (BATTERY) .
  2. Remove the instrument finisher B. Refer to REMOVAL AND INSTALLATION .
  3. Release pawls using suitable tool and remove push button ignition switch (1) from NATS antenna amp (2).

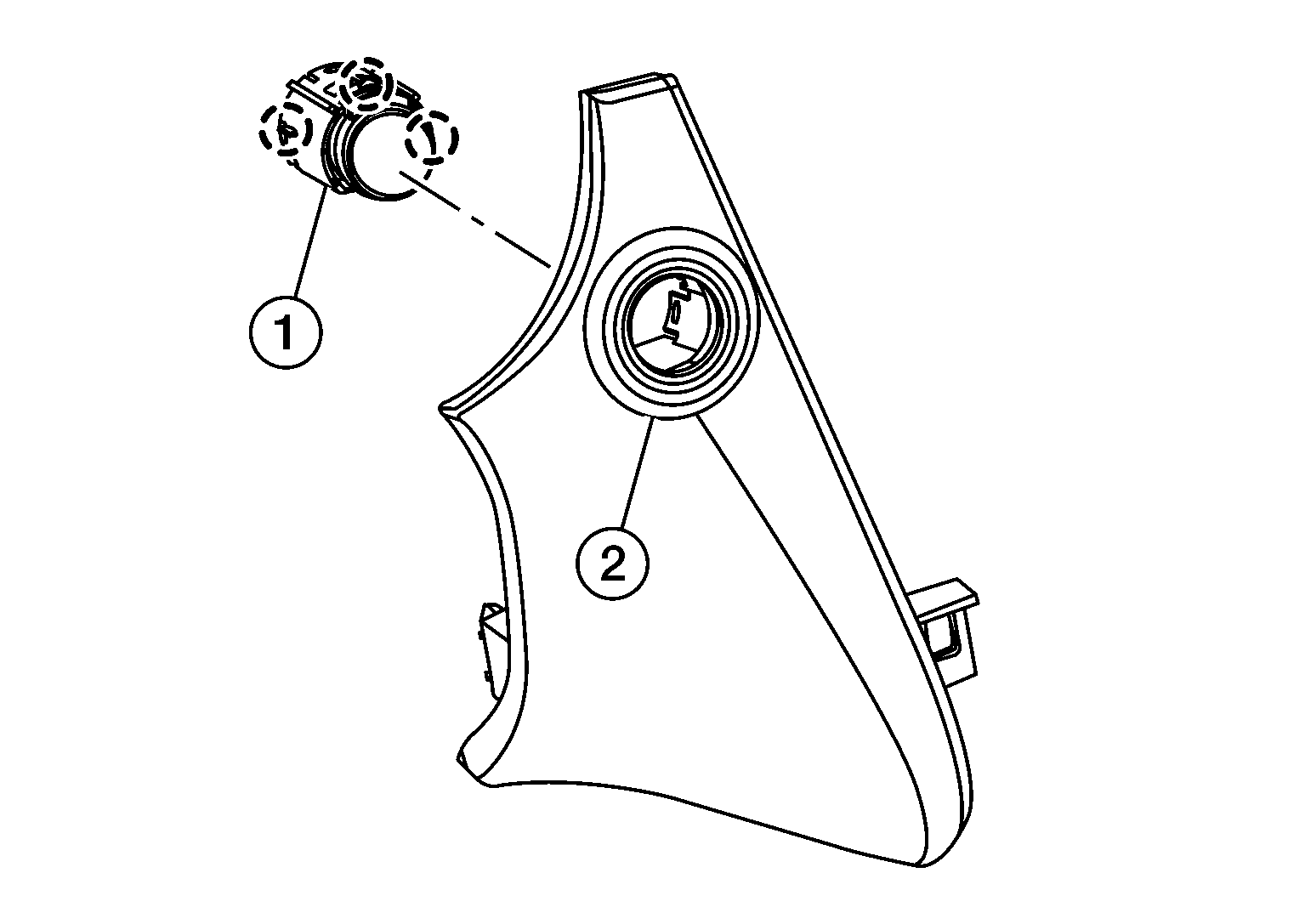

    Fig 1: View Of Pawls, Push Button Ignition Switch & NATS Antenna Amp
    GNSAWKIA3218ZZ-218Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl
