Exploded View With Torque Specifications

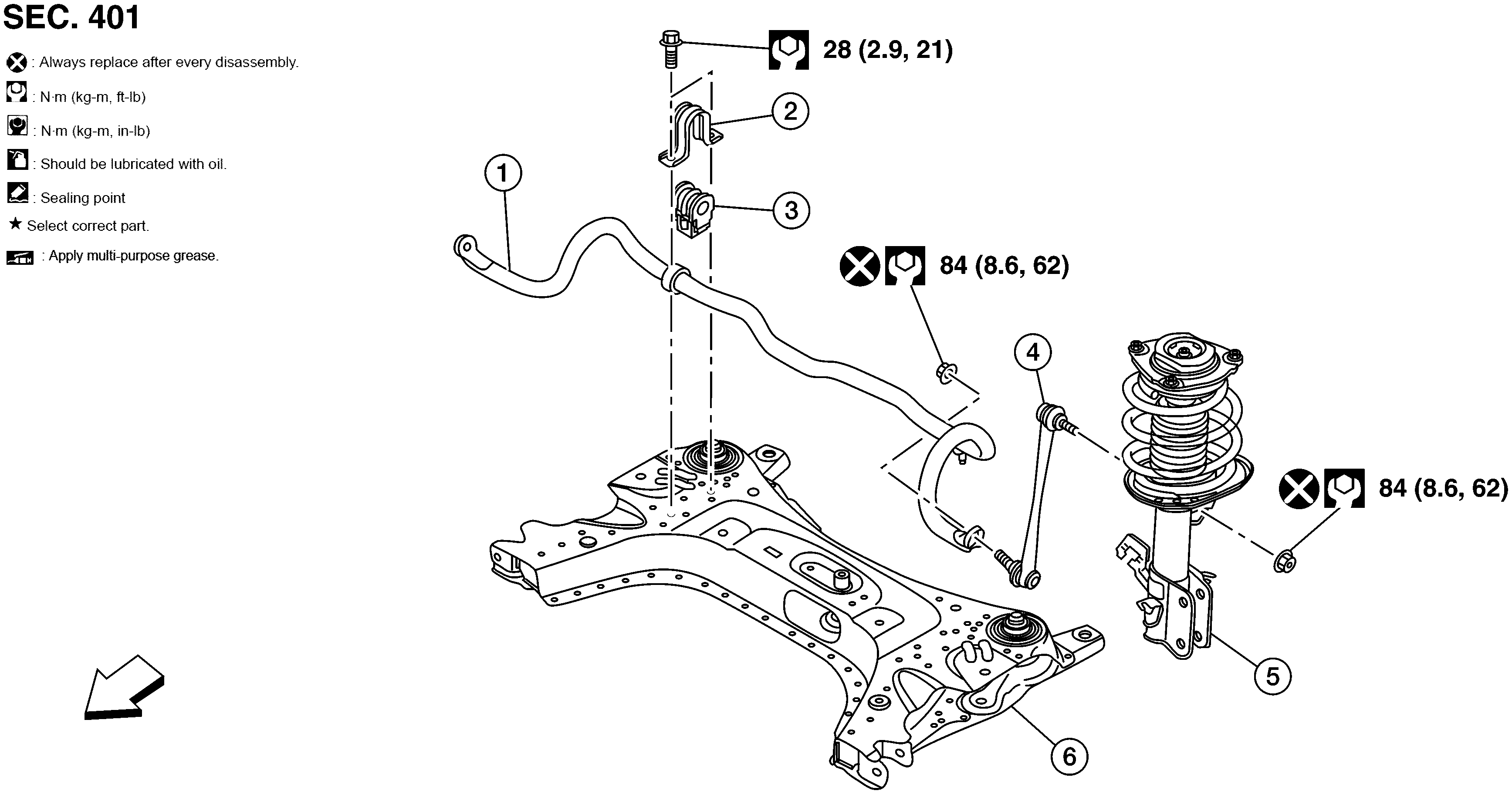

Fig 1: Exploded View Of Front Stabilizer With Torque Specifications
GNSAWEIA0291ZZ-291Courtesy of NISSAN NORTH AMERICA, INC.
1. Stabilizer bar 2. Stabilizer clamp 3. Stabilizer bushing
4. Stabilizer connecting rod 5. Front coil spring and strut 6. Front suspension member
ARROW Front
