Exploded View With Torque Specifications

(CVT)

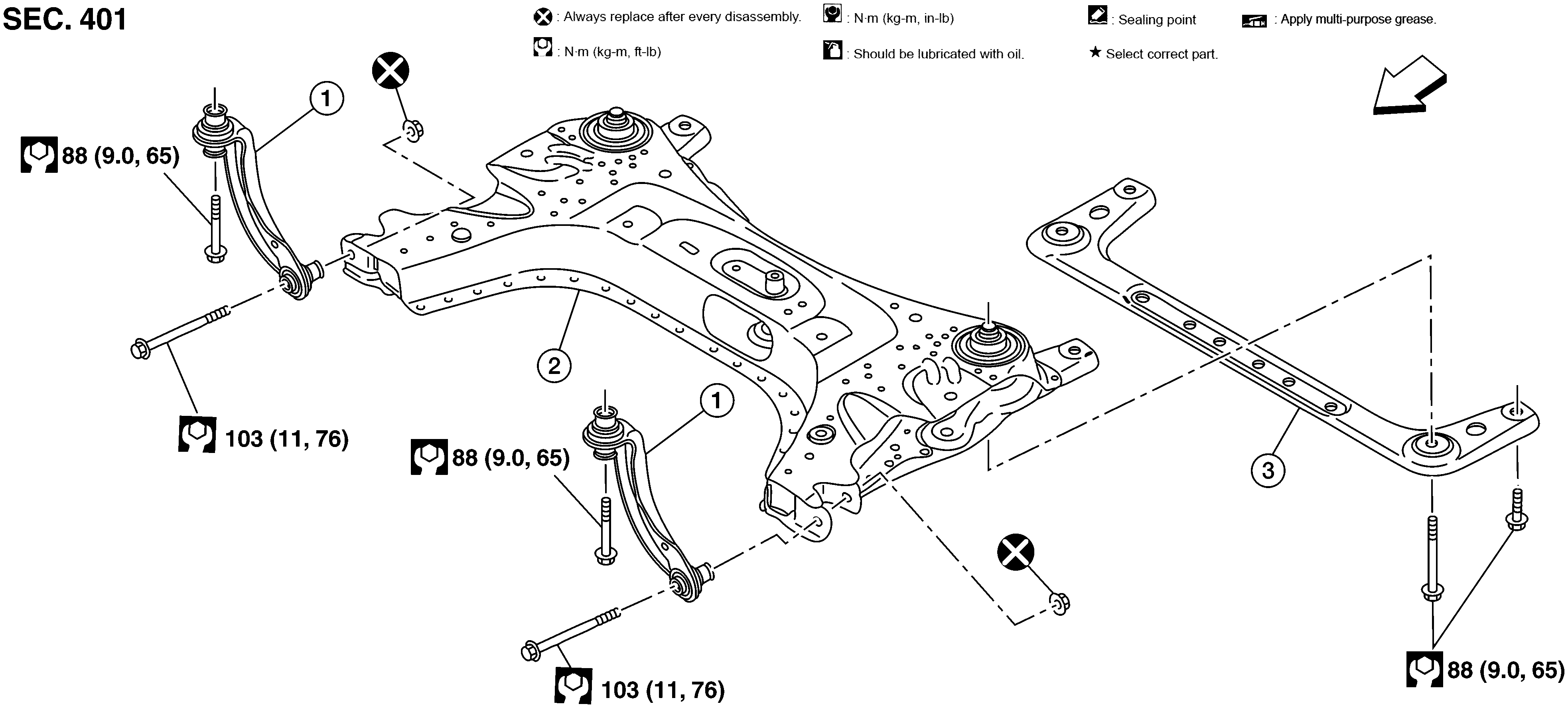

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications(1 Of 2)
GNSAWEIA0293ZZ-293Courtesy of NISSAN NORTH AMERICA, INC.
1. Upper link 2. Front suspension member 3. Member stay
ARROW Front

(M/T)

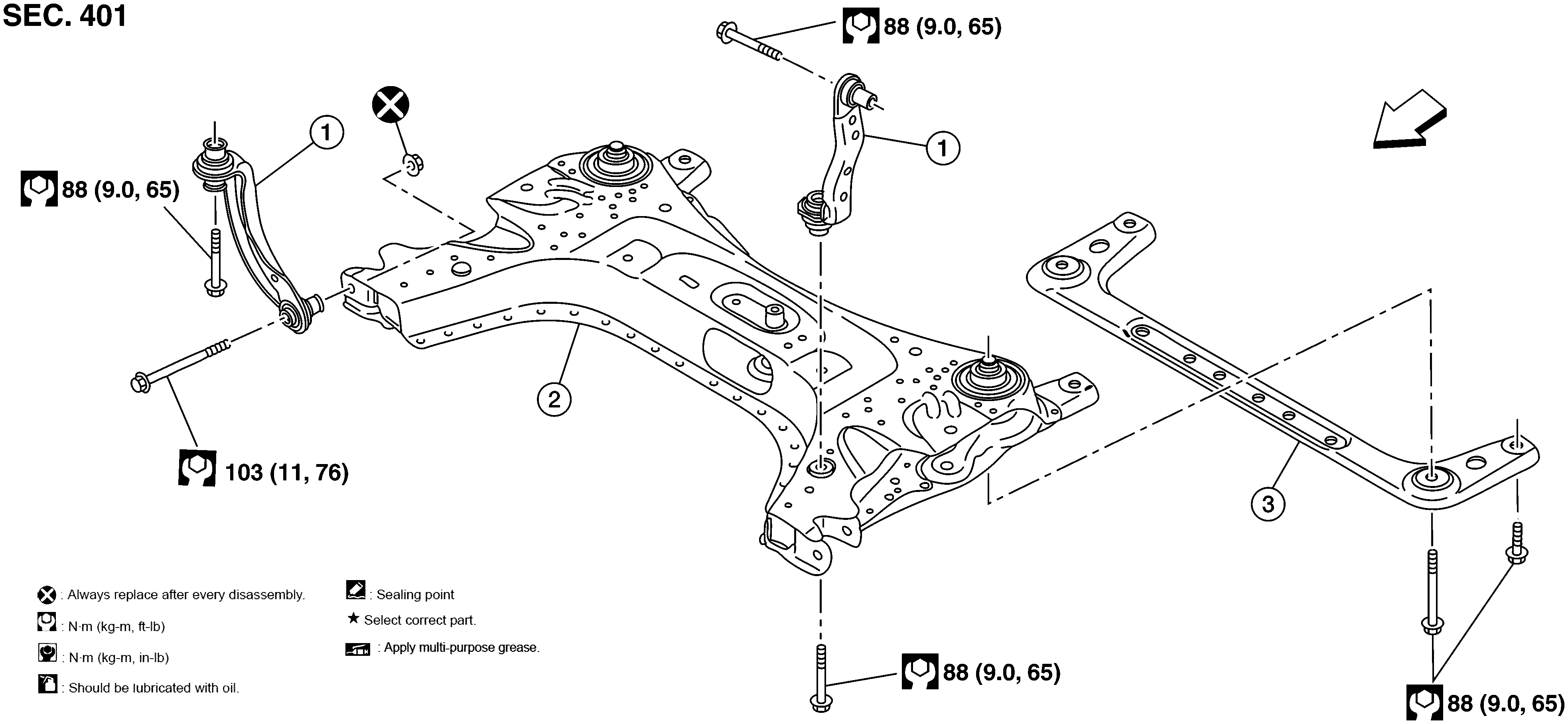

Fig 2: Exploded View Of Front Suspension Member With Torque Specifications(2 Of 2)
GNSAWEIA0292ZZ-292Courtesy of NISSAN NORTH AMERICA, INC.
1. Upper link 2. Front suspension member 3. Member stay
ARROW Front
