Removal And Installation: Removal

  1. Remove the instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .
  2. Release pawls (A) using suitable tool and remove the VDC OFF switch.

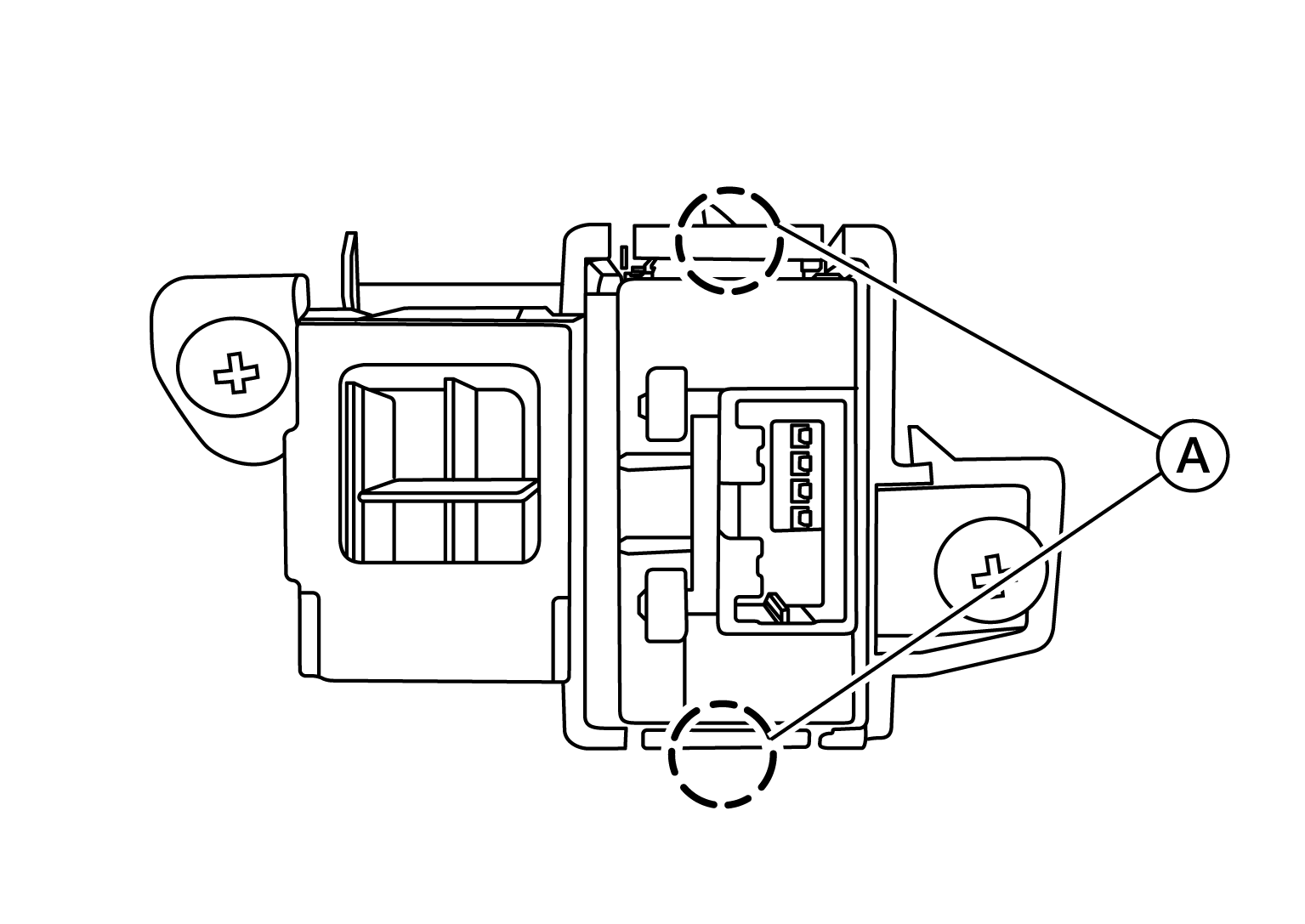

    Fig 1: VDC OFF Switch Pawls
    G08200277Courtesy of NISSAN NORTH AMERICA, INC.
