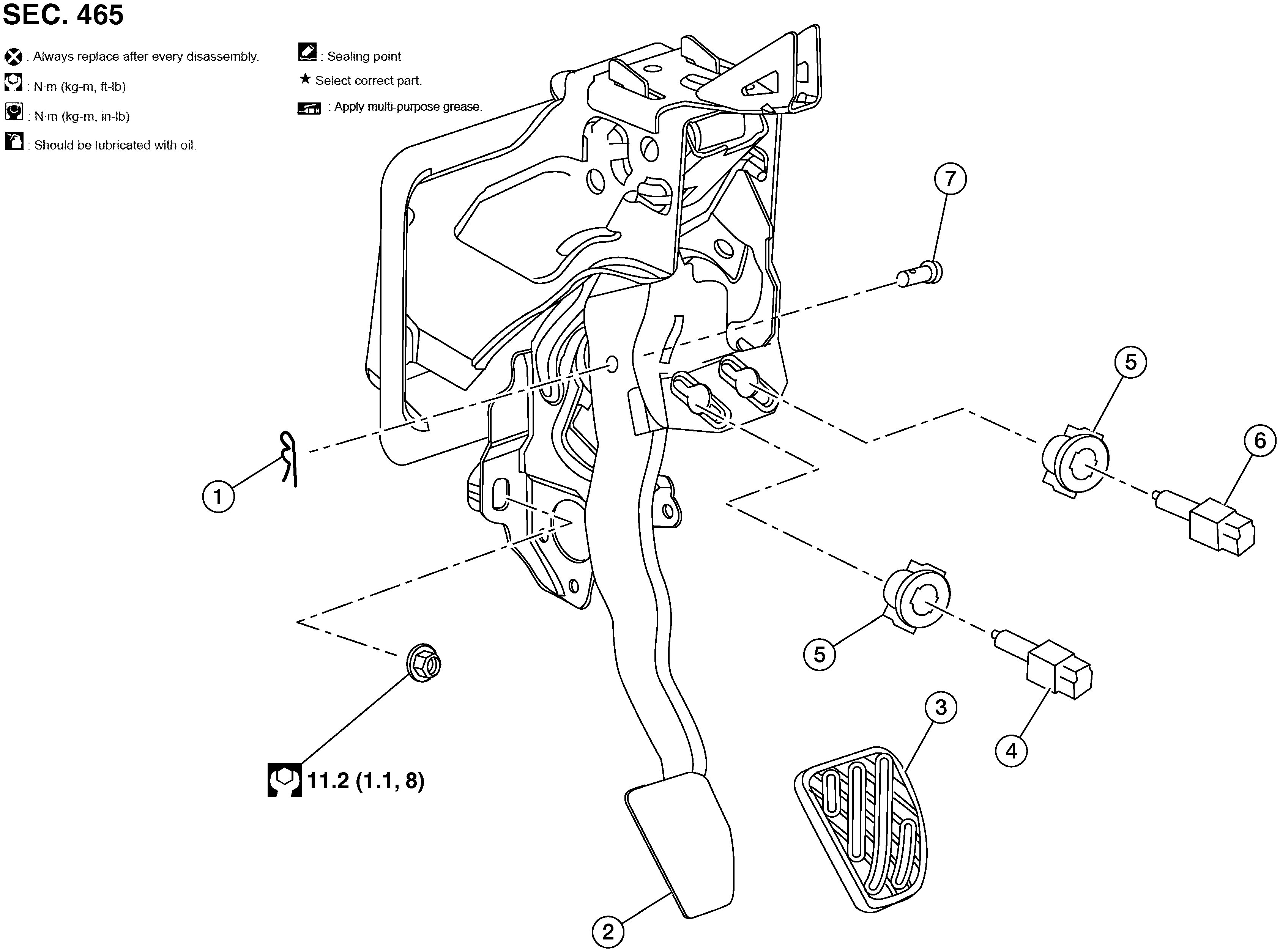

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Clevis pin |
2. |
Brake pedal assembly |
3. |
Brake pedal pad |
| 4. |
Stop lamp switch |
5. |
Clip |
6. |
Brake pedal position switch (if equipped) |
| 7. |
Snap pin |
|
|
|
|
NOTE:
CVT and A/T brake pedal assemblies shown, M/T brake pedal assembly similar.
