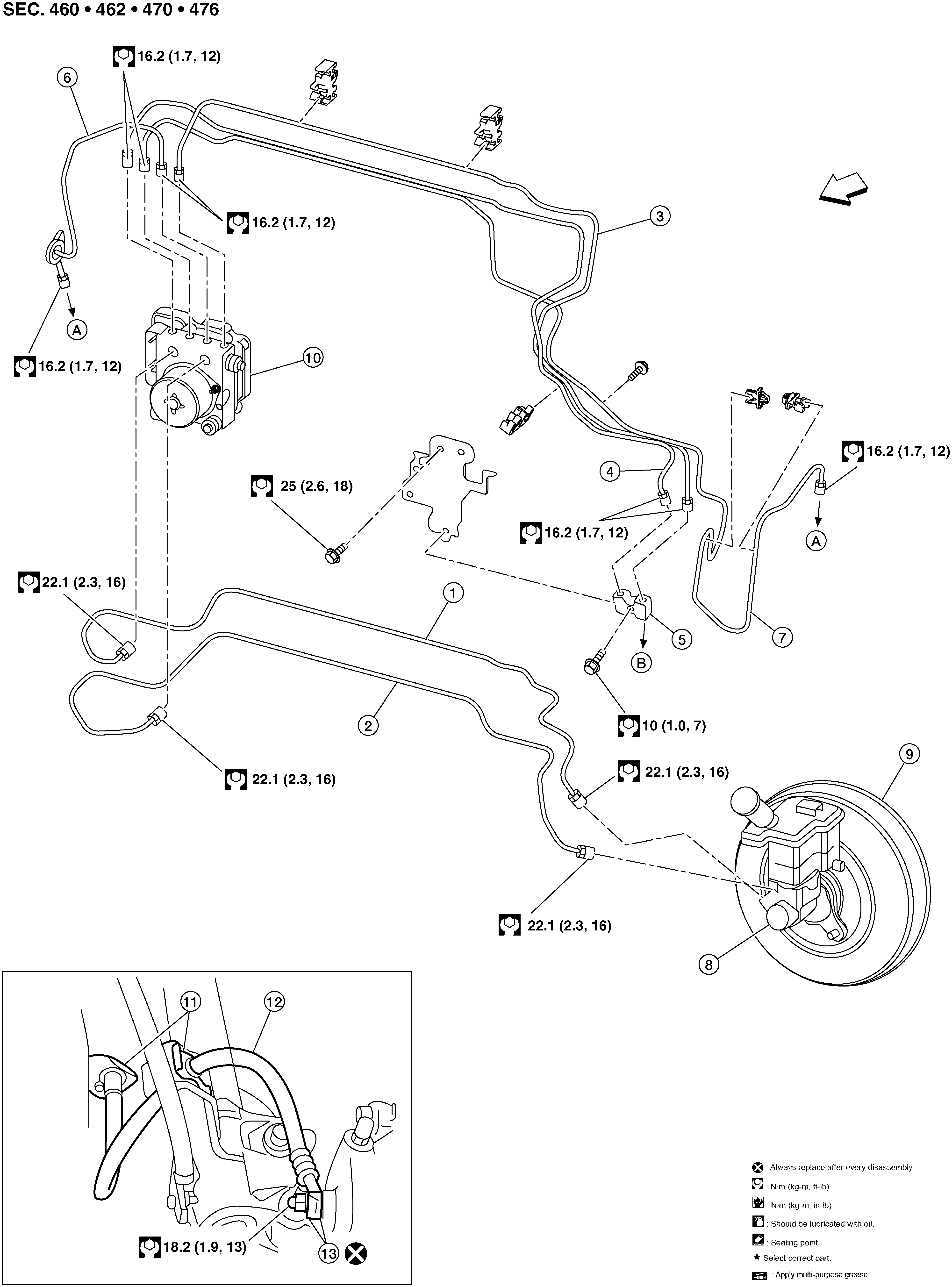

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Master cylinder brake pipe assembly (front) | 2. | Master cylinder brake pipe assembly (rear) | 3. | ABS actuator to connector brake pipe assembly (RH) |
| 4. | ABS actuator to connector brake pipe assembly (LH) | 5. | Brake pipe connector | 6. | Brake pipe assembly (RH front) |
| 7. | Brake pipe assembly (LH front) | 8. | Master cylinder assembly | 9. | Brake booster |
| 10. | ABS actuator and electric unit (control unit) | 11. | Lock plate | 12. | Front brake hose |
| 13. | Copper sealing washer | A. | To front brake hose | B. | To rear brake pipe |
| Front |
