Inspection After Disassembly

Check contact surface and sliding surface of fork rod and shift fork for excessive wear, uneven wear, and damage. Replace if necessary.

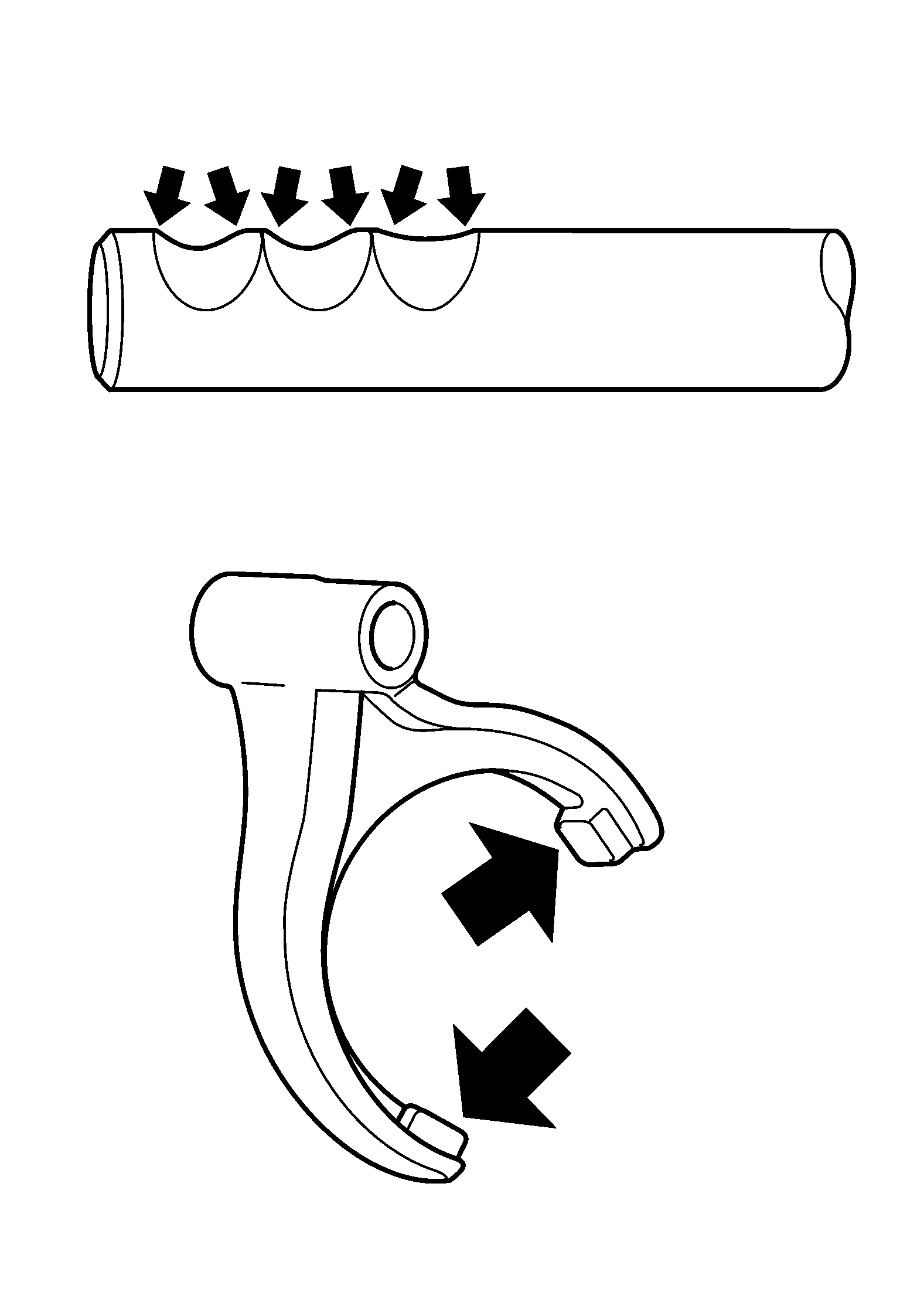

Fig 1: Contact Surface And Sliding Surface Of Fork Rod And Shift Fork

Courtesy of NISSAN NORTH AMERICA, INC.
