Final Drive: Assembly

Install differential side bearings, using Tool (A).

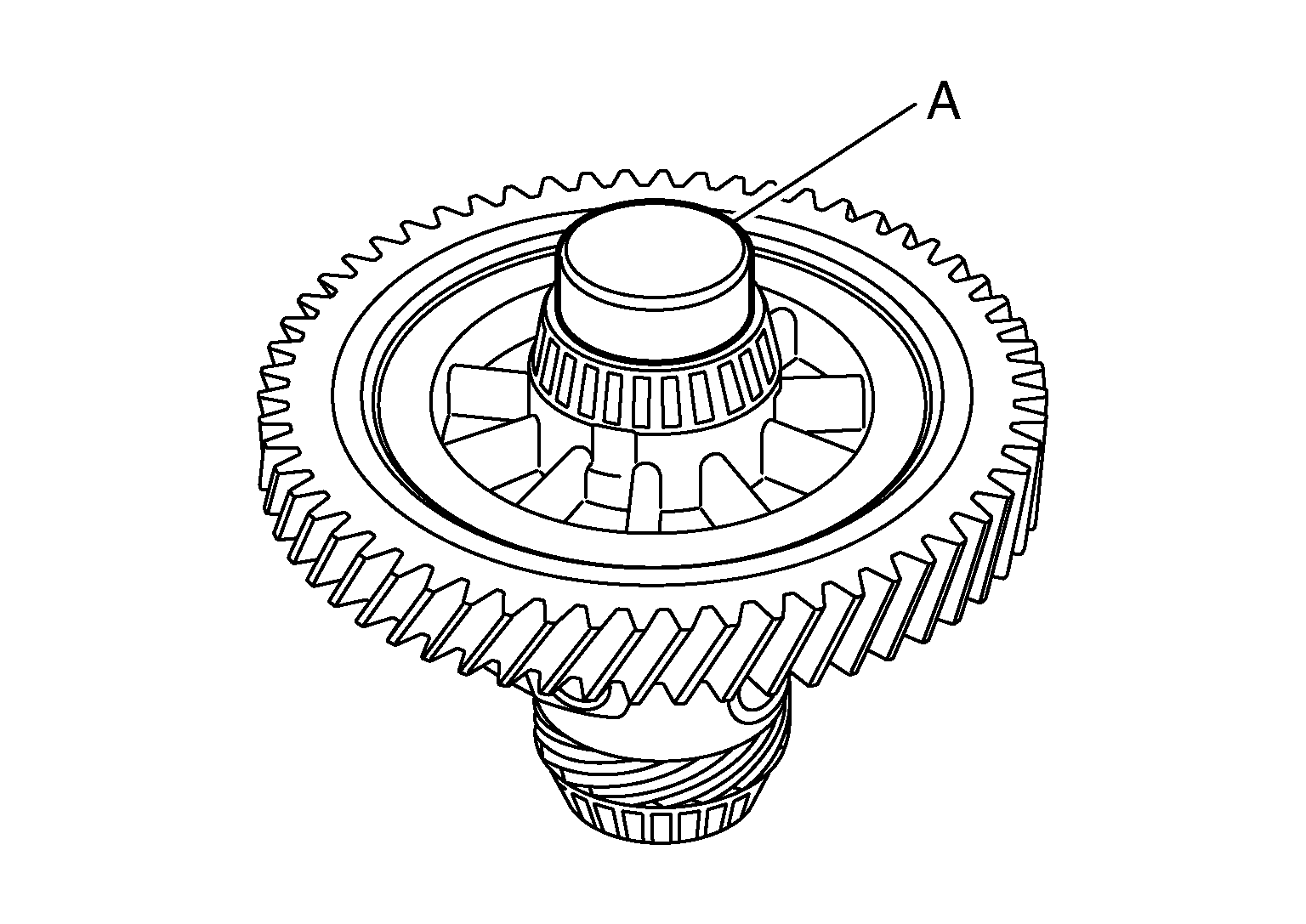

Fig 1: Installing Differential Side Bearings Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Replace differential side bearing outer race and differential side bearing as a set.

Tool number : KV40104920 (-)
