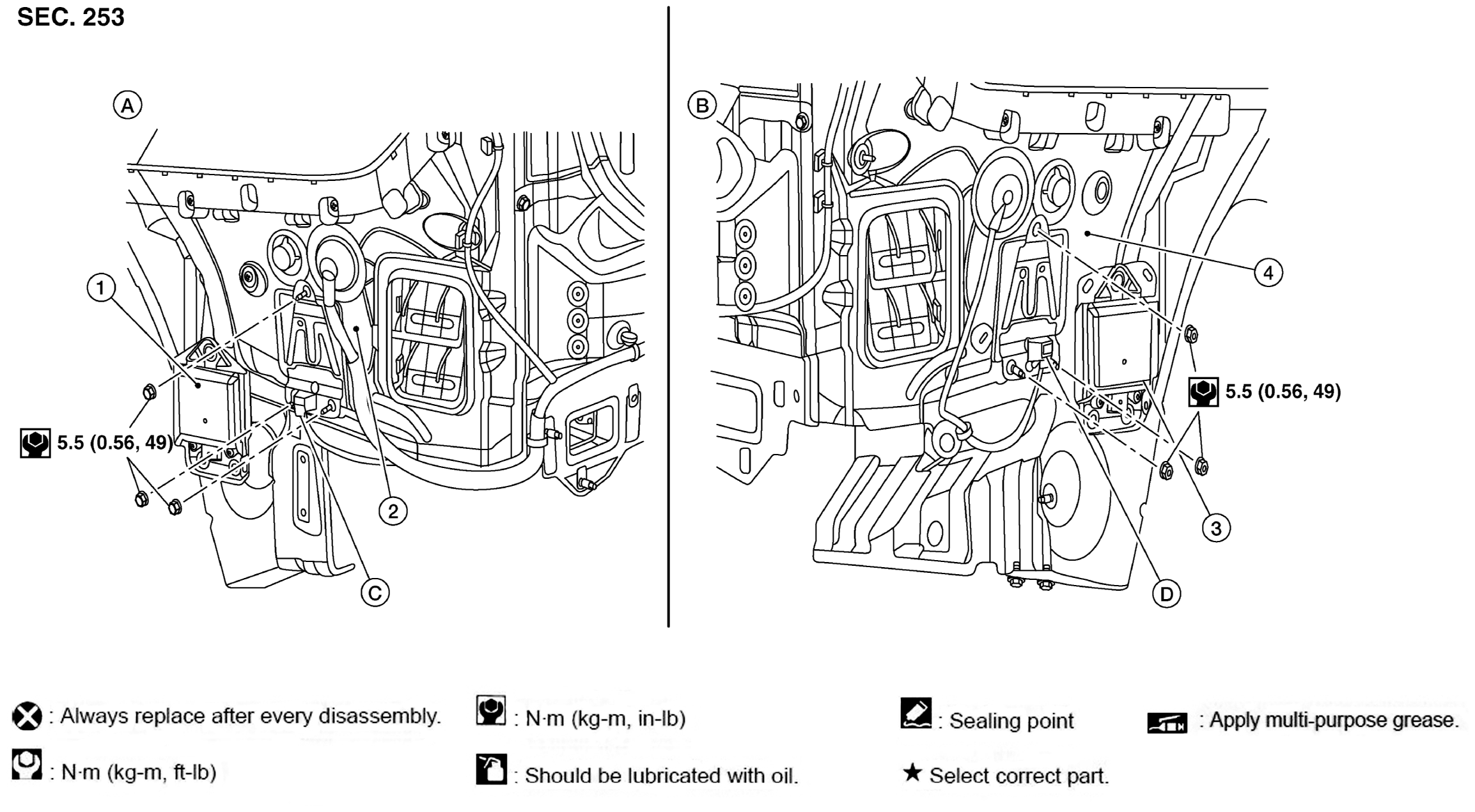

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Side radar (LH) |
2. |
Body side (LH) |
3. |
Side radar (RH) |
| 4. |
Body side (RH) |
A. |
LH side |
B. |
RH side |
| C. |
Harness connector (LH) |
D. |
Harness connector (RH) |
|
|
