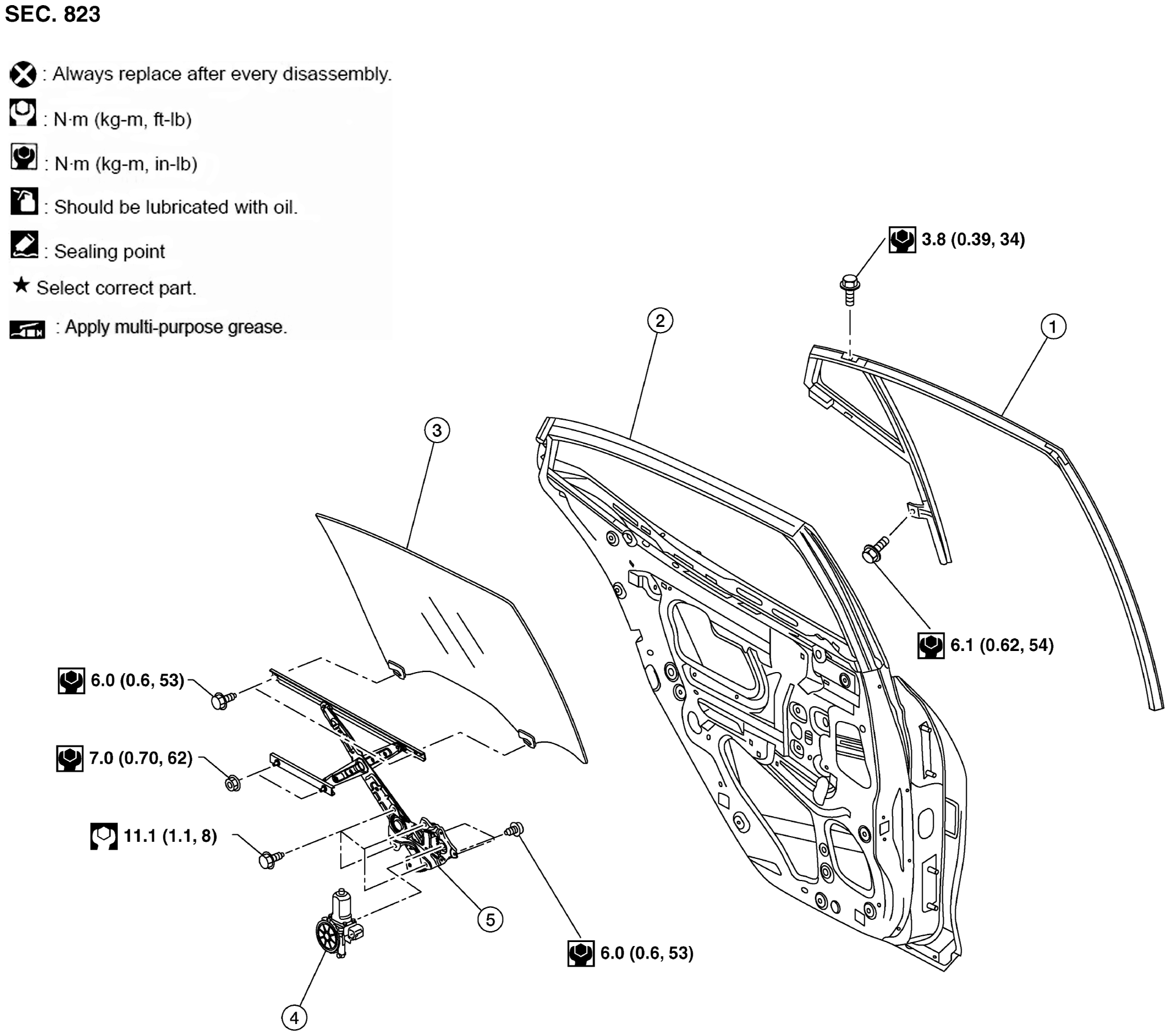

Exploded View With Torque Specifications

GNSAWKIA3523ZZ-523Courtesy of NISSAN NORTH AMERICA, INC.
1. Door glass rubber run and partition glass 2. Door 3. Door glass
4. Rear power window motor 5. Door glass regulator
