Exploded View

FWD

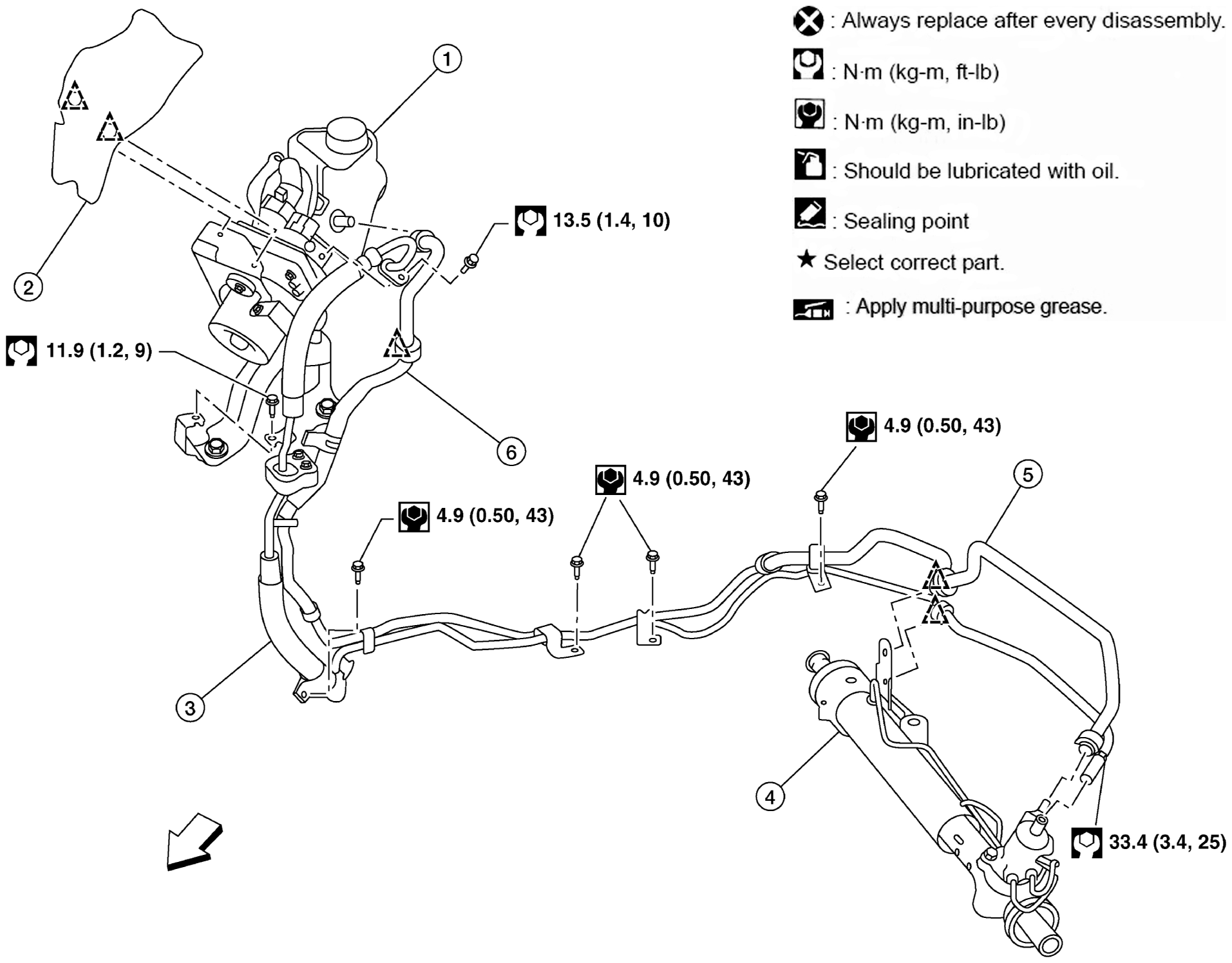

Fig 1: Hydraulic Line FWD With Torque Specifications

GNSAWGIA0339ZZ-339

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering oil pump	2.	Cover	3.	High-pressure piping
4.	Steering gear	5.	Low-pressure piping (lower)	6.	Low-pressure piping (upper)
	Clip		Front

NOTE:

Service high-pressure and low-pressure piping as an assembly of hydraulic lines.

AWD

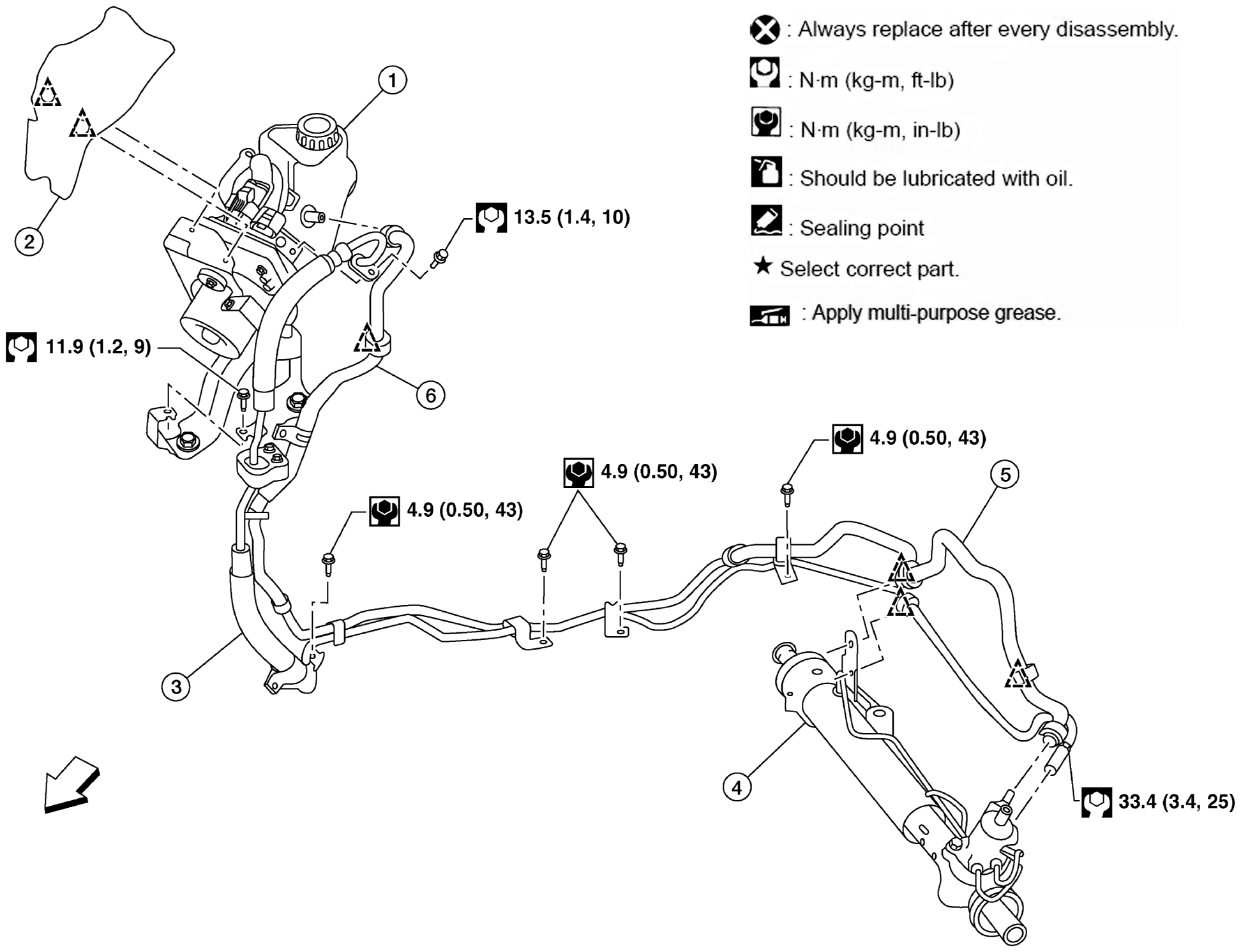

Fig 2: Hydraulic Line AWD With Torque Specifications

GNSAWGIA0340ZZ-340

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering oil pump	2.	Cover	3.	High-pressure piping
4.	Steering gear	5.	Low-pressure piping (lower)	6.	Low-pressure piping (upper)
	Clip		Front

NOTE:

Service high-pressure and low-pressure piping as an assembly of hydraulic lines.
