Component Location

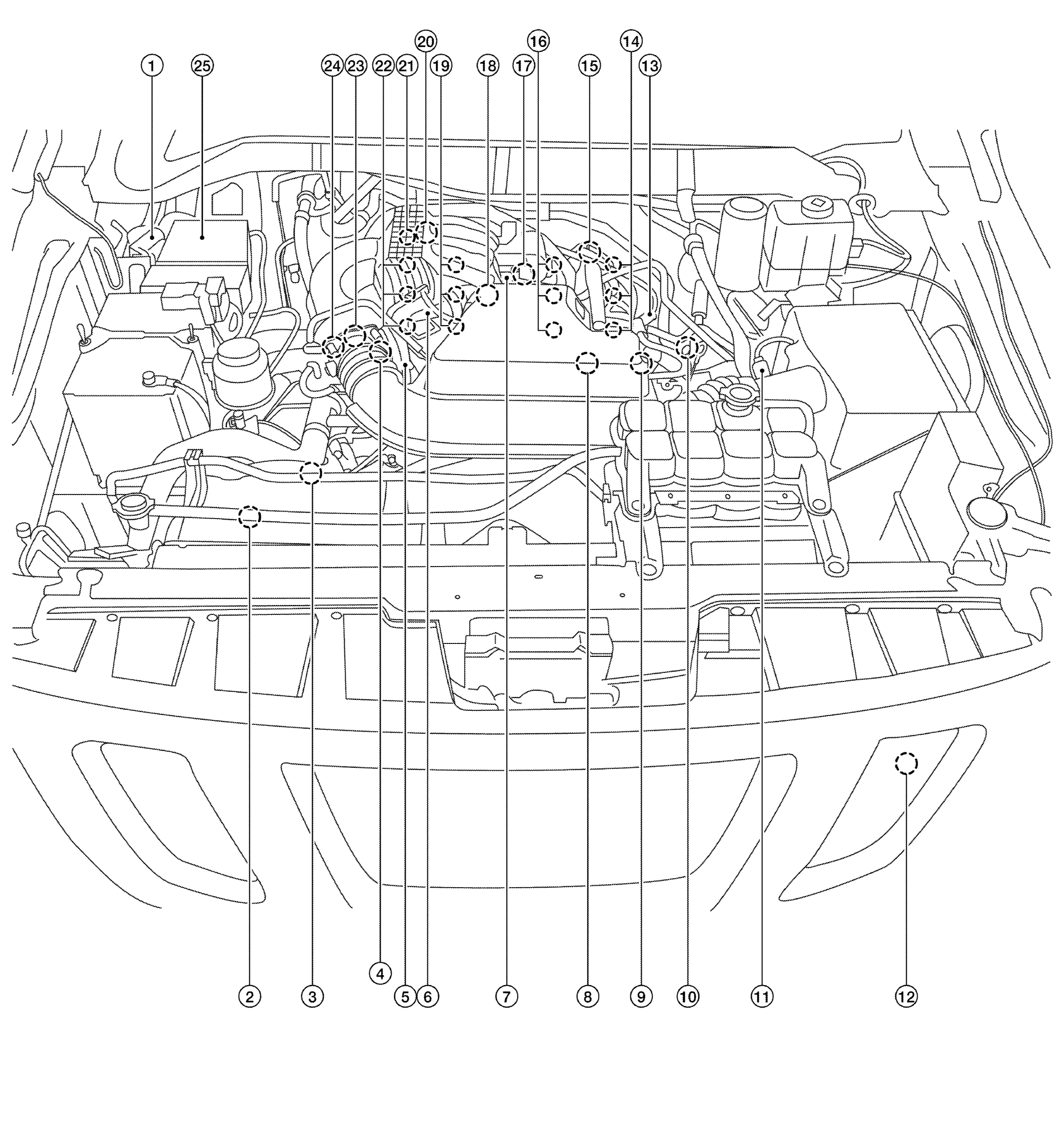

GNSALBIA0726ZZ-726Courtesy of NISSAN NORTH AMERICA, INC.
1. ECM 2. Cooling fan motor 3. Power steering pressure sensor
4. Intake valve timing control solenoid valve (bank 1) 5. Electric throttle control actuator 6. Power valve actuator
7. VIAS control solenoid valve 8. EVAP canister purge volume control solenoid valve 9. Intake valve timing control solenoid valve (bank 2)
10. Air fuel ratio (A/F) sensor 1 (bank 2) 11. Mass air flow sensor (with intake air temperature sensor) 12. Refrigerant pressure sensor
13. EVAP service port 14. Ignition coil (with power transistor) and spark plug (bank 2) 15. Camshaft position sensor (PHASE) (bank 2)
16. Fuel injector (bank 2) 17. Knock sensor (bank 2) 18. Knock sensor (bank 1)
19. Fuel injector (bank 1) 20. Engine coolant temperature sensor 21. Camshaft position sensor (PHASE) (bank 1)
22. Ignition coil (with power transistor) and spark plug (bank 1) 23. Crankshaft position sensor (POS) 24. Air fuel ratio (A/F) sensor 1 (bank 1)
25. IPDM E/R

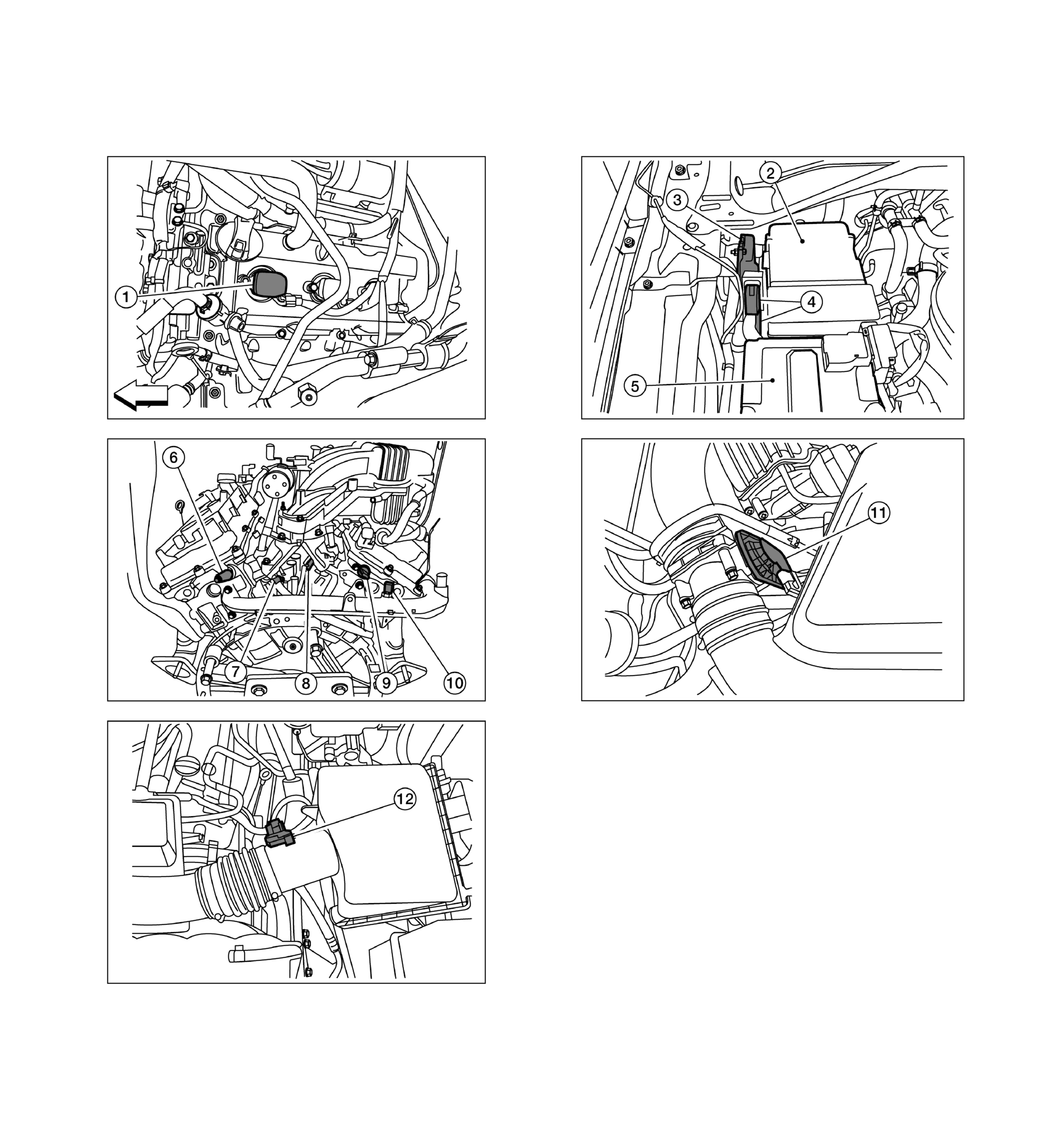

GNSALBIA0733ZZ-733Courtesy of NISSAN NORTH AMERICA, INC.
1. Ignition coil (with power transistor) and spark plug (bank 2) 2. IPDM E/R 3. ECM
4. ECM connector 5. Battery 6. Camshaft position sensor (PHASE) (bank 2)
(view with engine removed)
7. Knock sensor (bank 2) 8. Knock sensor (bank 1) 9. Camshaft position sensor (PHASE) (bank 1)
10. Engine coolant temperature sensor 11. Electric throttle control actuator 12. Mass air flow sensor (with intake air temperature sensor)
ARROW : Vehicle front

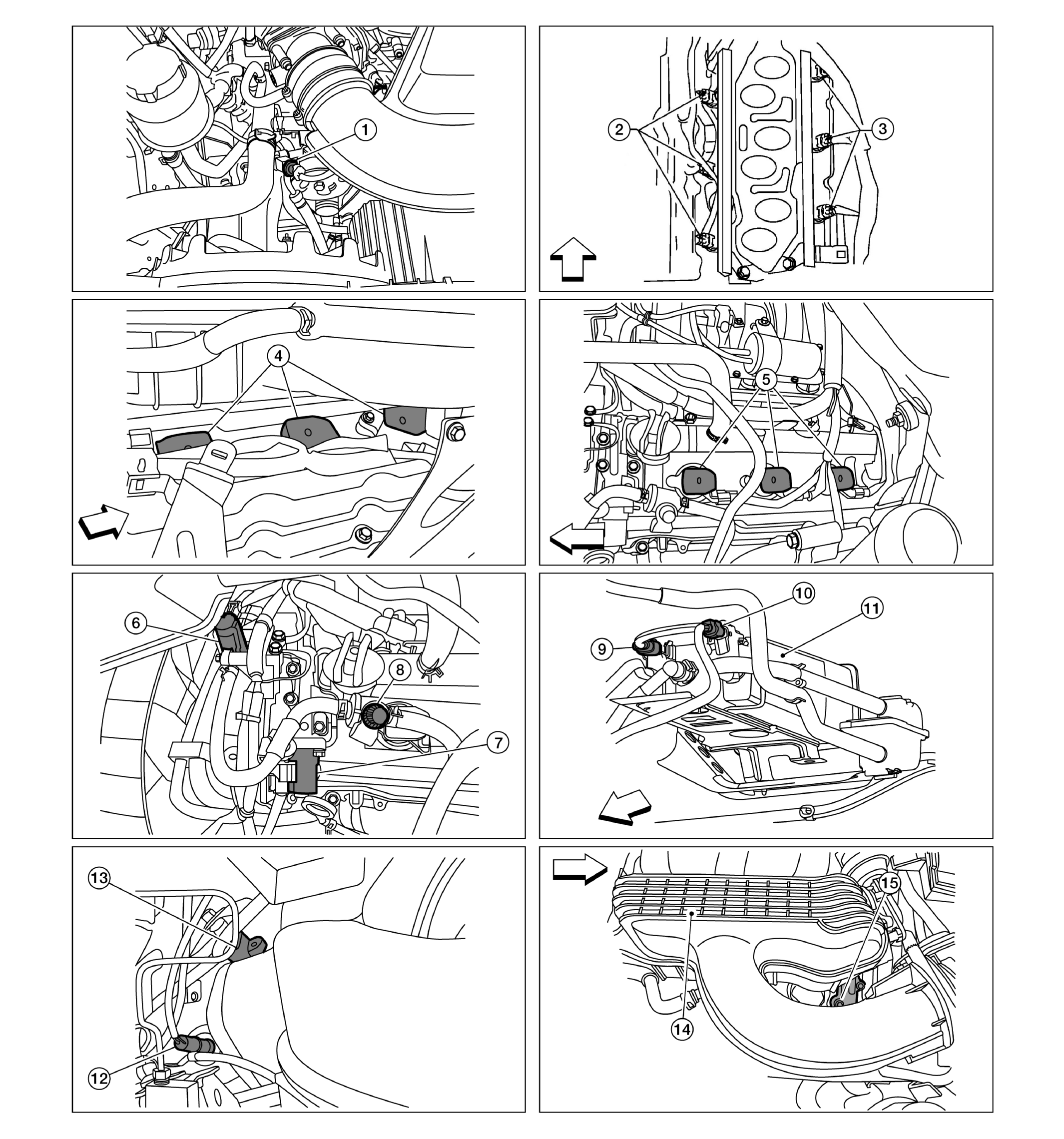

GNSALBIA0734ZZ-734Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering pressure sensor 2. Injector harness connector (bank 2)
(view with intake manifold collector removed)
3. Injector harness connector (bank 1)
(view with intake manifold collector removed)
4. Ignition coils (bank 1) (with power transistor) 5. Ignition coils (bank 2) (with power transistor) 6. EVAP canister purge volume control solenoid valve
7. Intake valve timing control solenoid valve (bank 2) 8. EVAP service port 9. EVAP control system pressure sensor
10. EVAP canister vent control valve 11. EVAP canister 12. Air fuel ratio (A/F) sensor (bank 1)
(view through fender cover RH)
13. Crankshaft position sensor (POS) 14. Intake manifold collector 15. Intake valve timing control solenoid valve (bank 1)
ARROW : Vehicle front

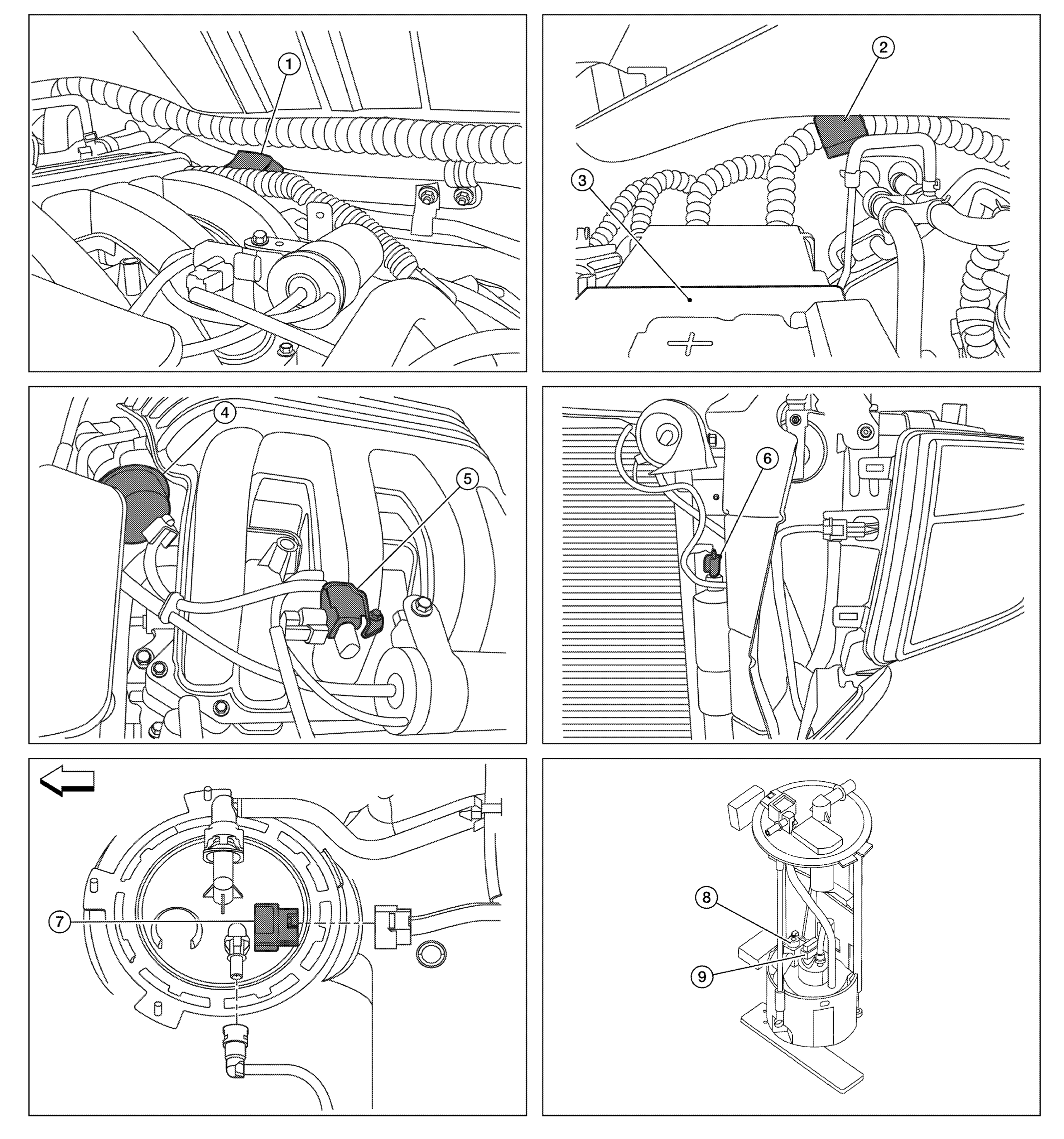

GNSALBIA0735ZZ-735Courtesy of NISSAN NORTH AMERICA, INC.
1. Condenser-1 2. Condenser-2 3. Battery
4. Power valve actuator 5. VIAS control solenoid valve 6. Refrigerant pressure sensor
(view with front grille removed)
7. Fuel level sensor unit and fuel pump harness connector
(view with fuel tank removed)
8. Fuel pressure regulator 9. Fuel pump, fuel level sensor unit and fuel filter
ARROW : Vehicle front

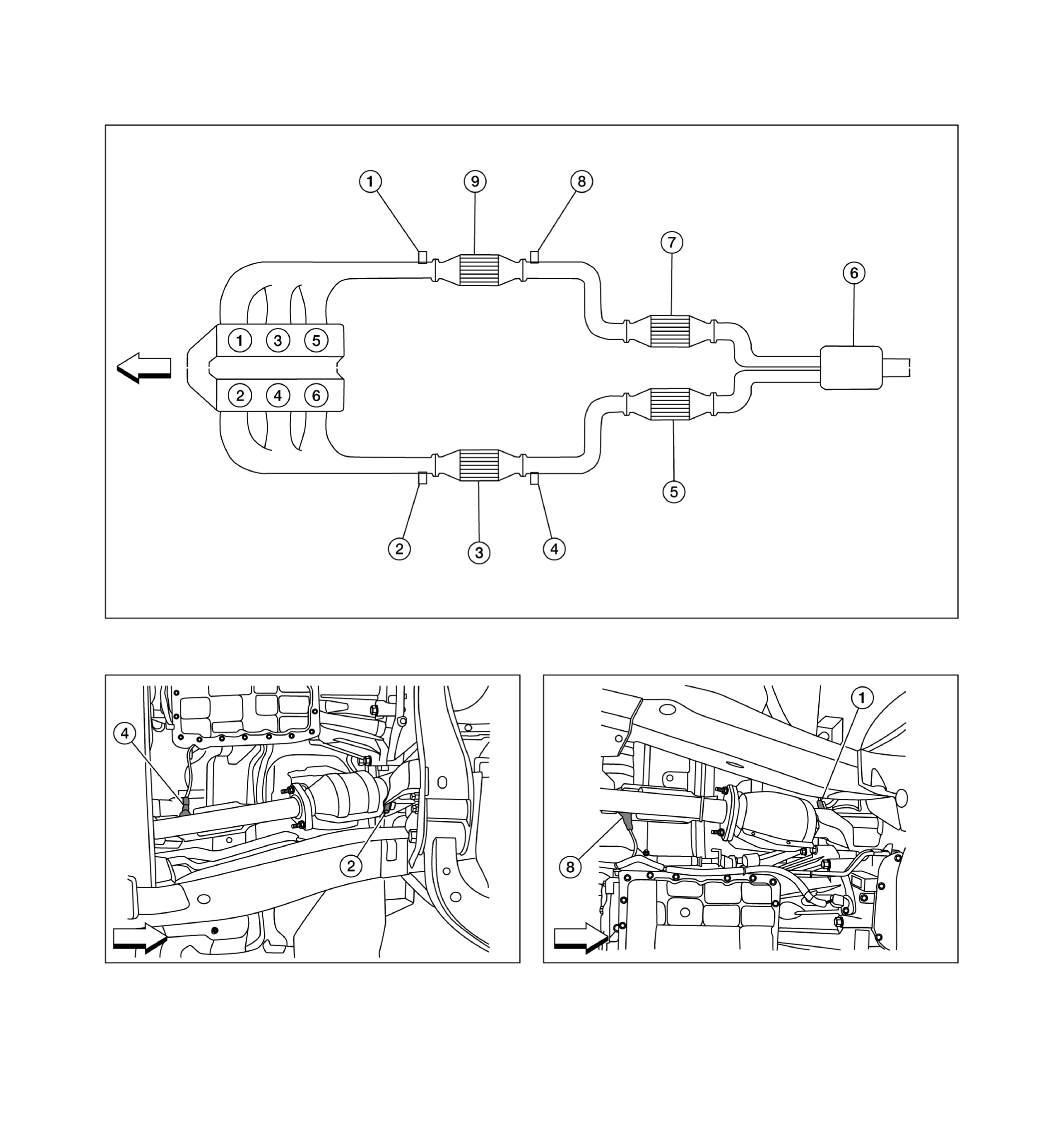

GNSALBIA0736ZZ-736Courtesy of NISSAN NORTH AMERICA, INC.
1. Air fuel ratio (A/F) sensor 1 (bank 1) 2. Air fuel ratio (A/F) sensor 1 (bank 2) 3. Three-way catalyst (manifold) (bank 2)
4. Heated oxygen sensor 2 (bank 2) 5. Three-way catalyst (under floor) (bank 2) 6. Muffler
7. Three-way catalyst (under floor) (bank 1) 8. Heated oxygen sensor 2 (bank 1) 9. Three-way catalyst (manifold) (bank 1)
ARROW : Vehicle front

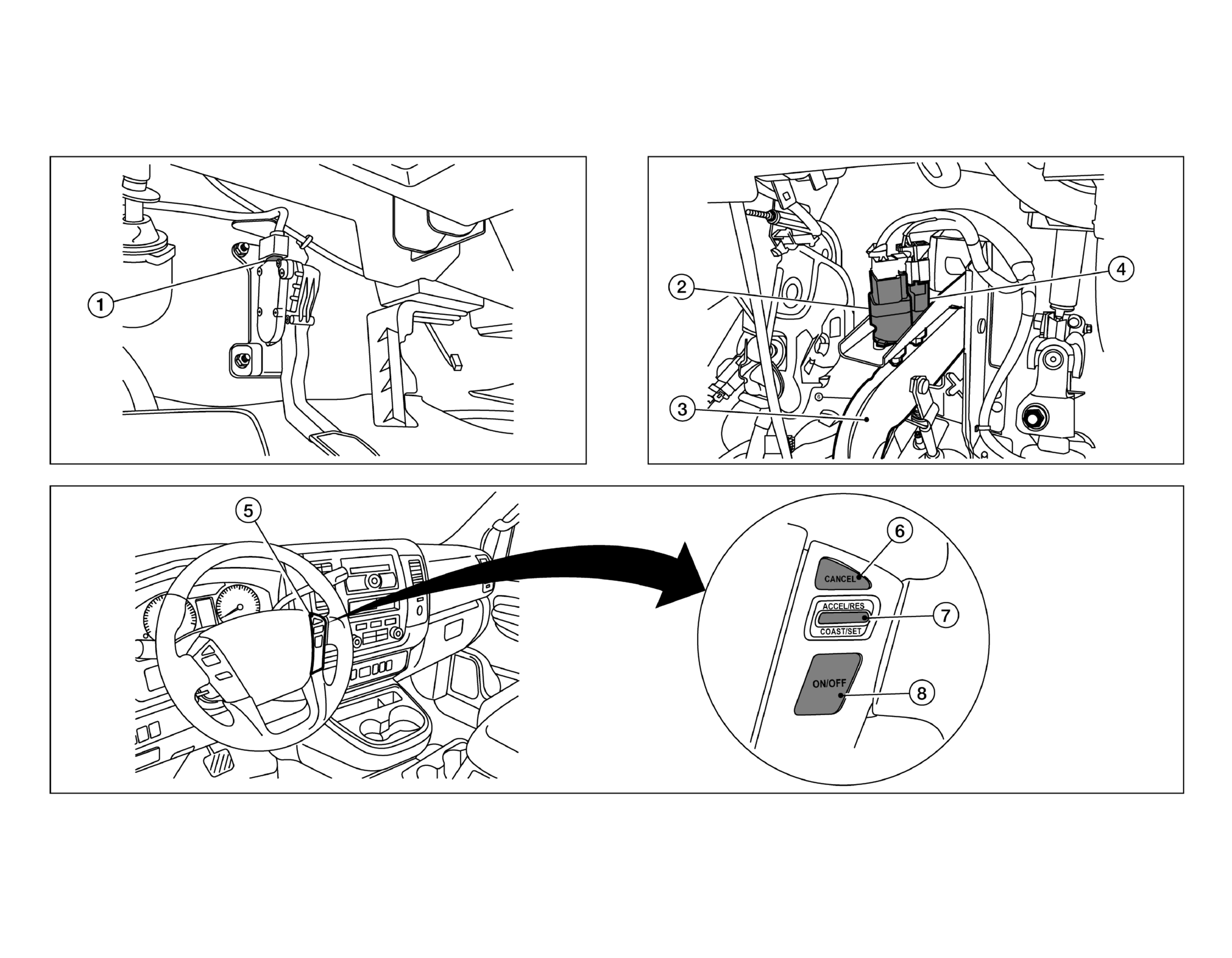

GNSALBIA0737ZZ-737Courtesy of NISSAN NORTH AMERICA, INC.
1. Accelerator pedal position sensor 2. Stop lamp switch 3. Brake pedal
4. Brake pedal position switch 5. ASCD steering switch 6. CANCEL switch
7.
  • ACCEL/RES switch
  • COAST/SET switch
8. MAIN switch
