Removal And Installation: Removal

  1. Remove instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .
  2. Remove switch bracket from instrument lower panel.

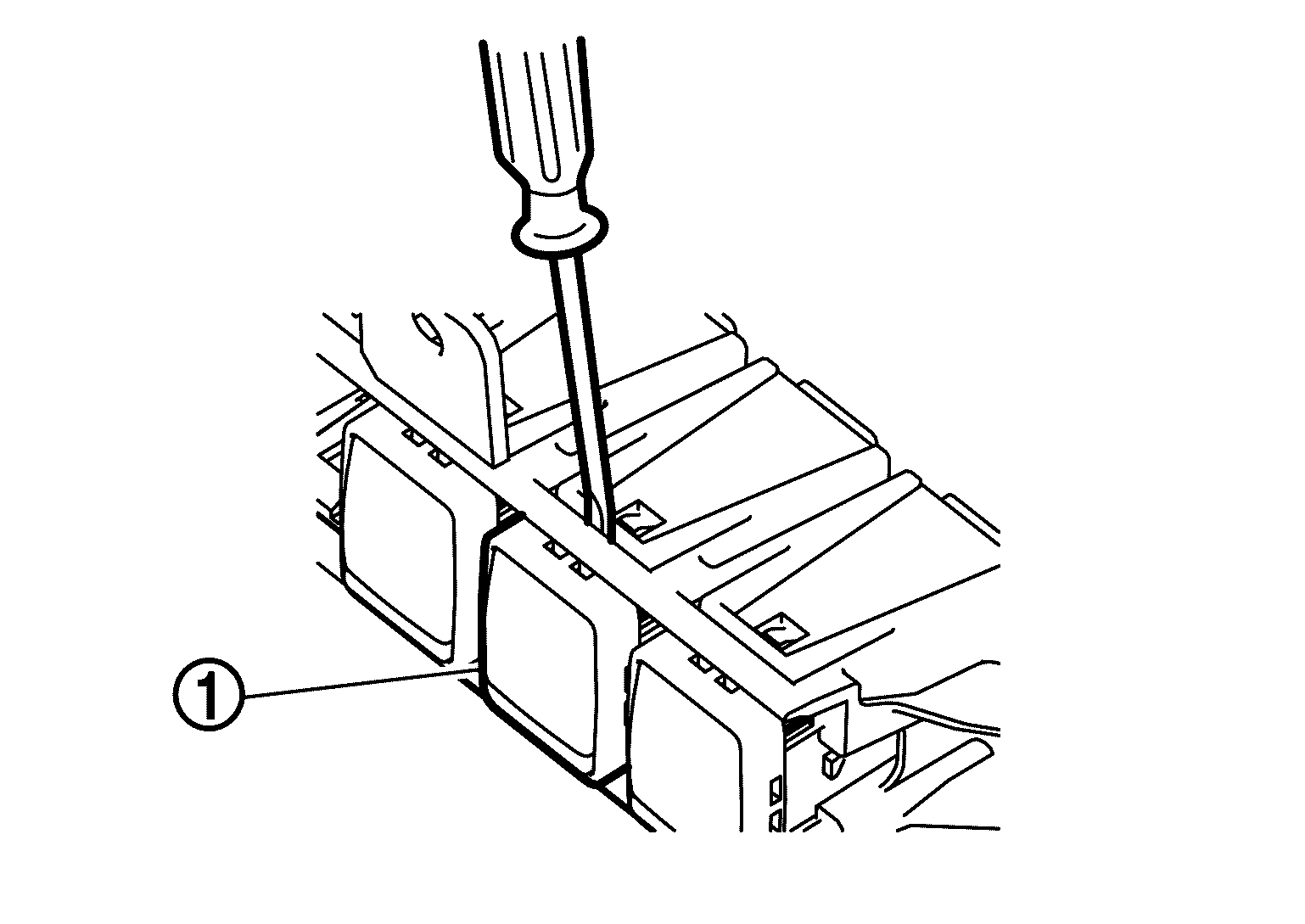

  3. Remove ECO mode switch WHITE-1 from switch bracket.
    GNSJSOIA1375ZZ-375Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:

    For design of ECO mode switch, refer to ECO MODE SWITCH .
