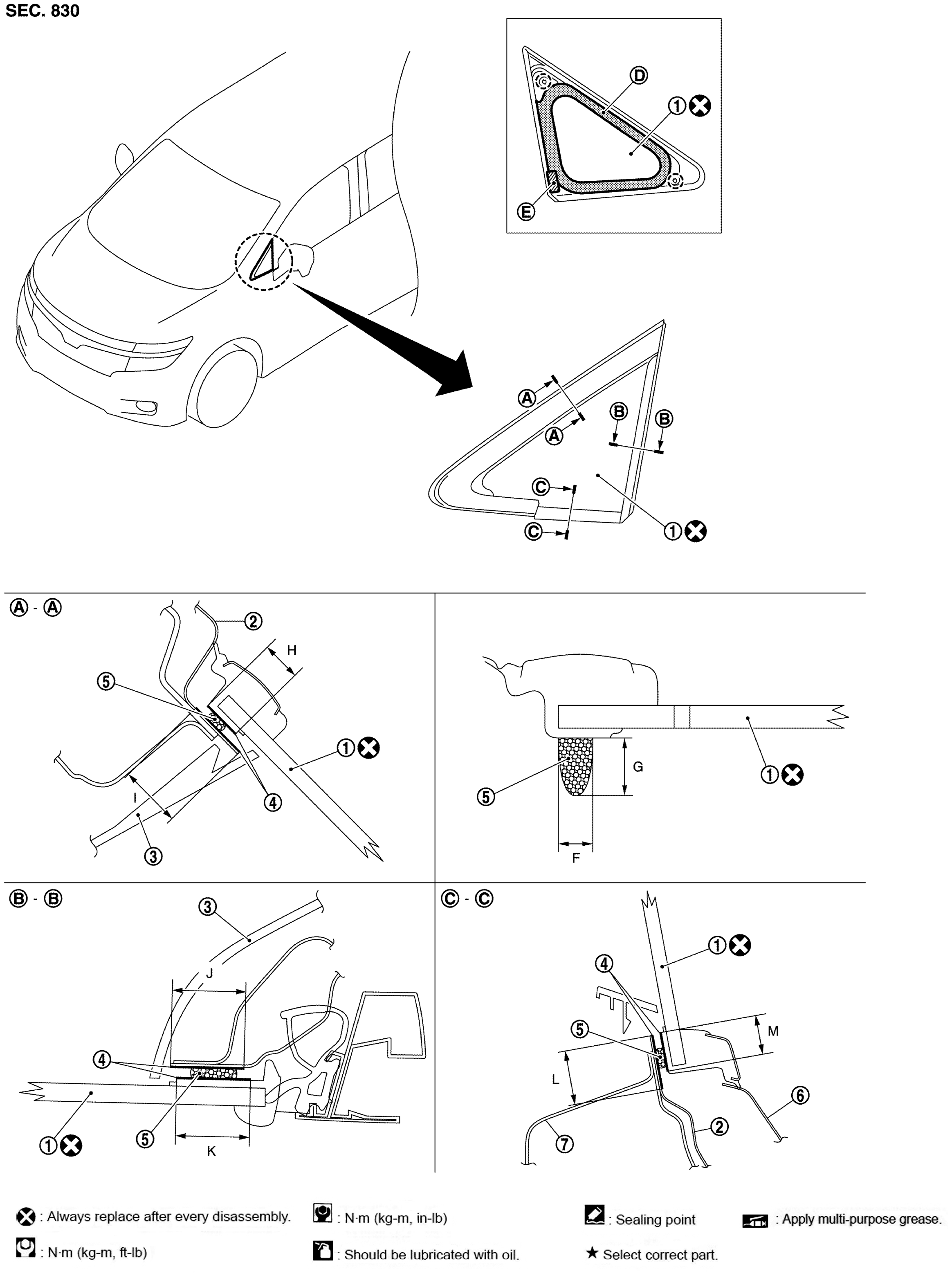

Exploded View With Torque Specifications
| 1. | Opera window | 2. | Body side outer | 3. | Front pillar garnish |
| 4. | Primer | 5. | Adhesive | 6. | Front fender |
| 7. | Front pillar inner lower | ||||
| D | : Glass primer application area | ||||
| E | : Double sided tape | ||||
| F | : 6 (0.236) | G | : 10 (0.394) | H | : 13 (0.512) |
| I | : 20 (0.787) | J | : 20 (0.787) | K | : 20 (0.787) |
| L | : 20 (0.787) | M | : 14 (0.551) | ||
| Unit | : mm (in) | ||||
| : Clip | |||||
| : Always replace after every disassembly. | |||||
