ICC Sensor Initial Vertical Alignment

NOTE:

The ICC sensor initial vertical alignment procedure must be performed anytime the distance sensor is removed and reinstalled.

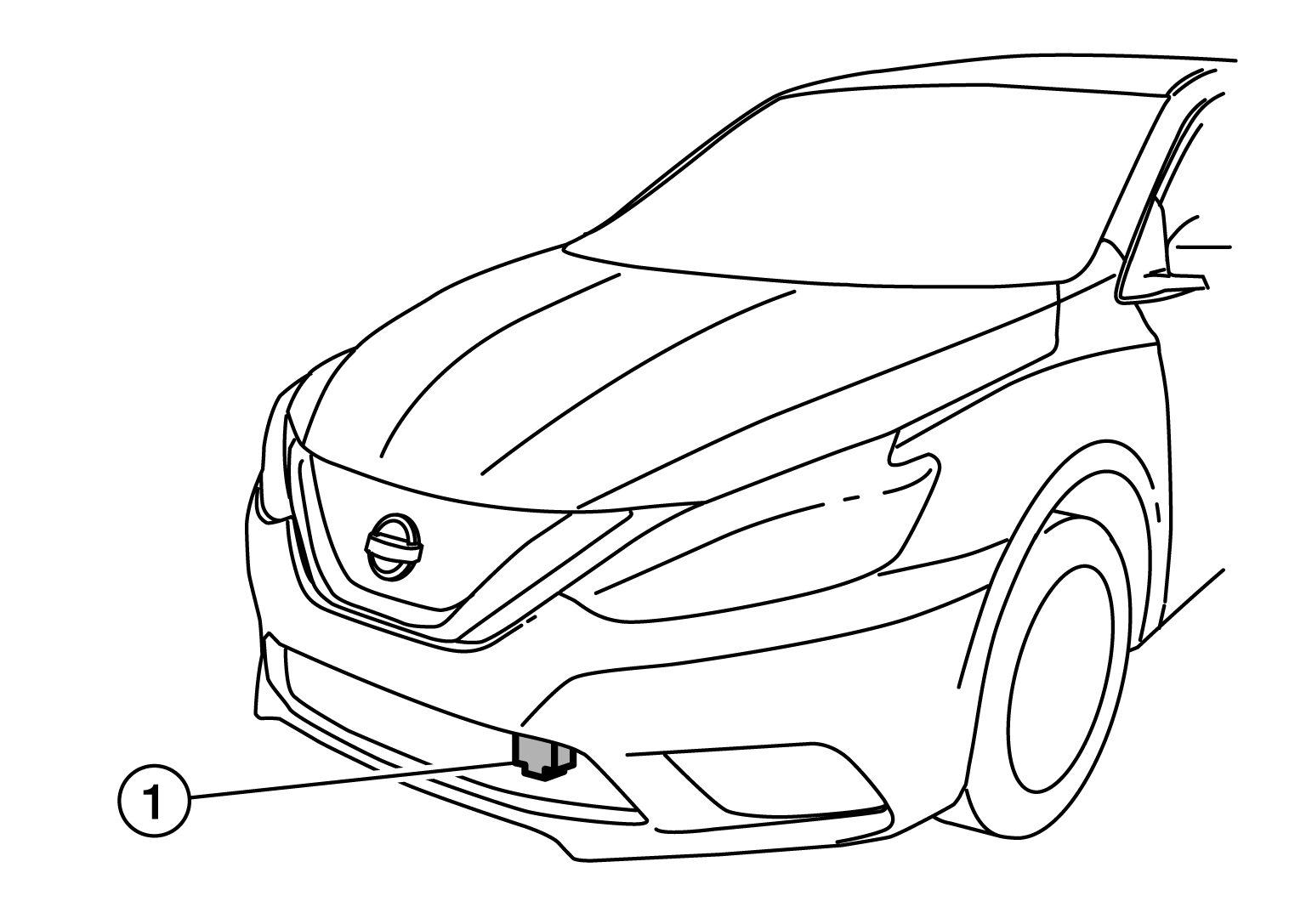

The ICC sensor (1) is located near the right front headlamp behind the front bumper fascia.

Courtesy of NISSAN NORTH AMERICA, INC.

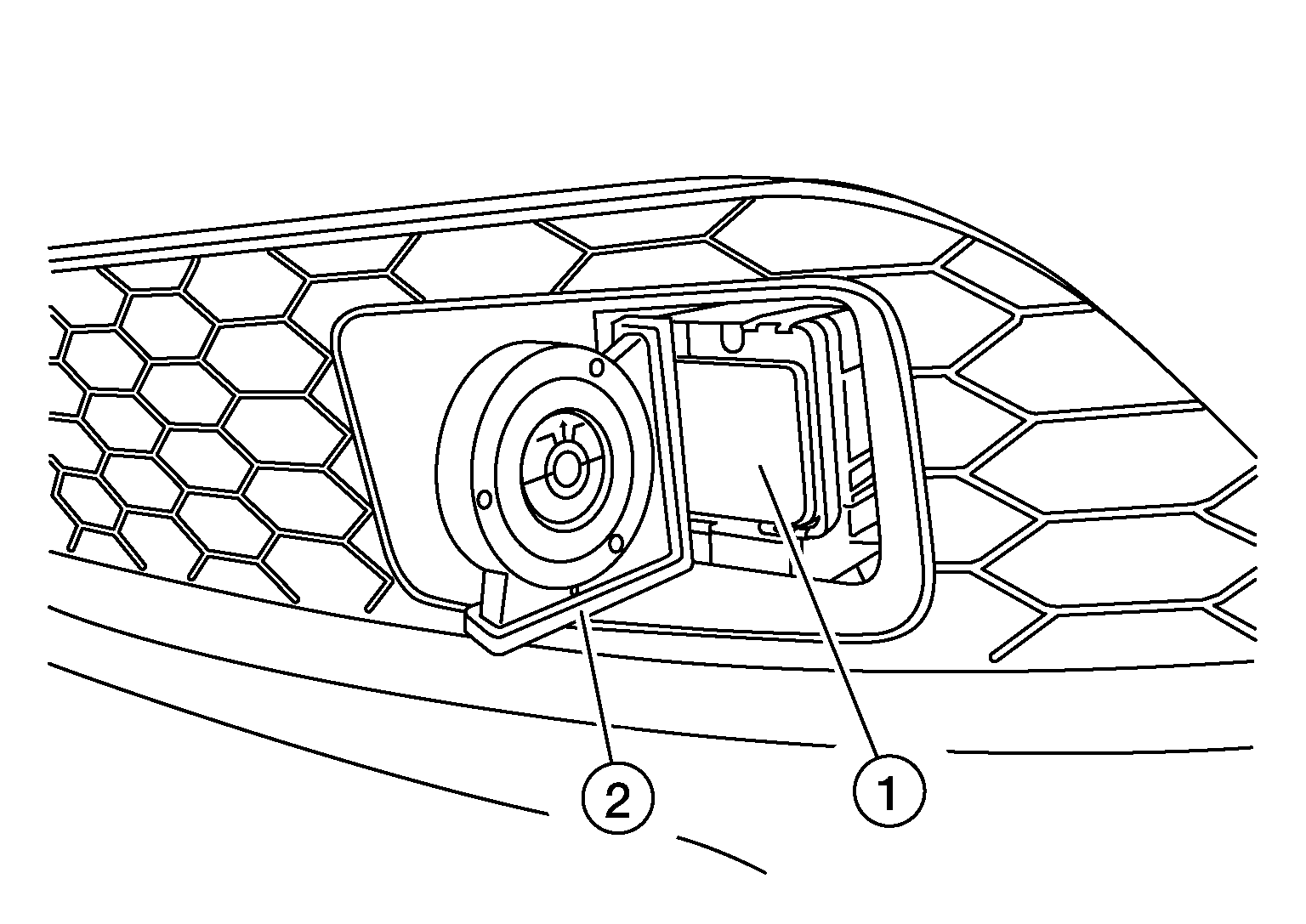

Place the small level or angle meter (2) against the face of the ICC sensor (1).

Courtesy of NISSAN NORTH AMERICA, INC.

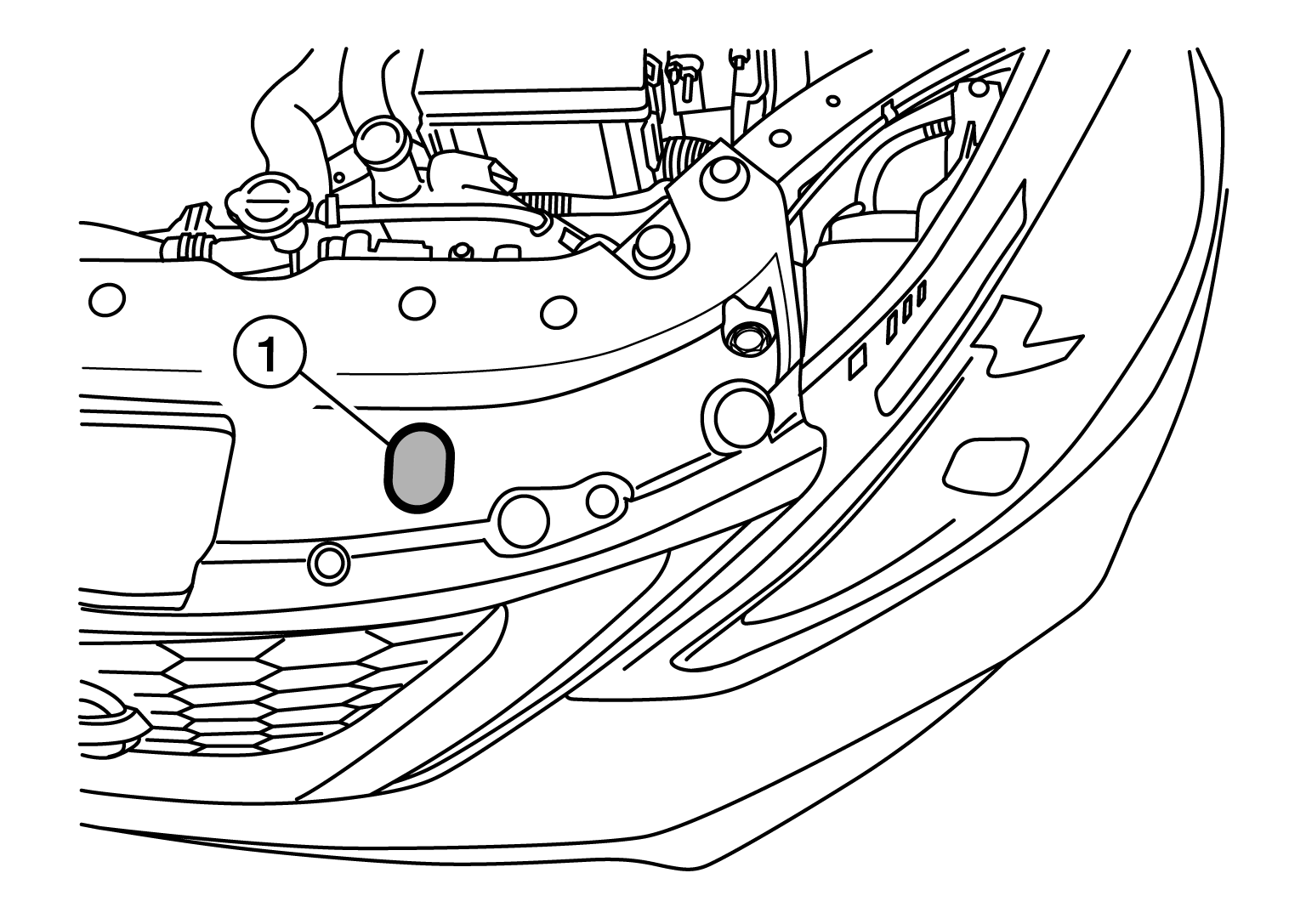

Turn the ICC sensor adjustment screw (1) through the ICC sensor adjustment screw access hole to level the sensor.

Courtesy of NISSAN NORTH AMERICA, INC.
Ensure the ICC sensor electrical connector located on the bottom of the sensor is connected.
Perform the ICC sensor alignment procedure. Refer to DESCRIPTION .
