Exploded View With Torque Specifications

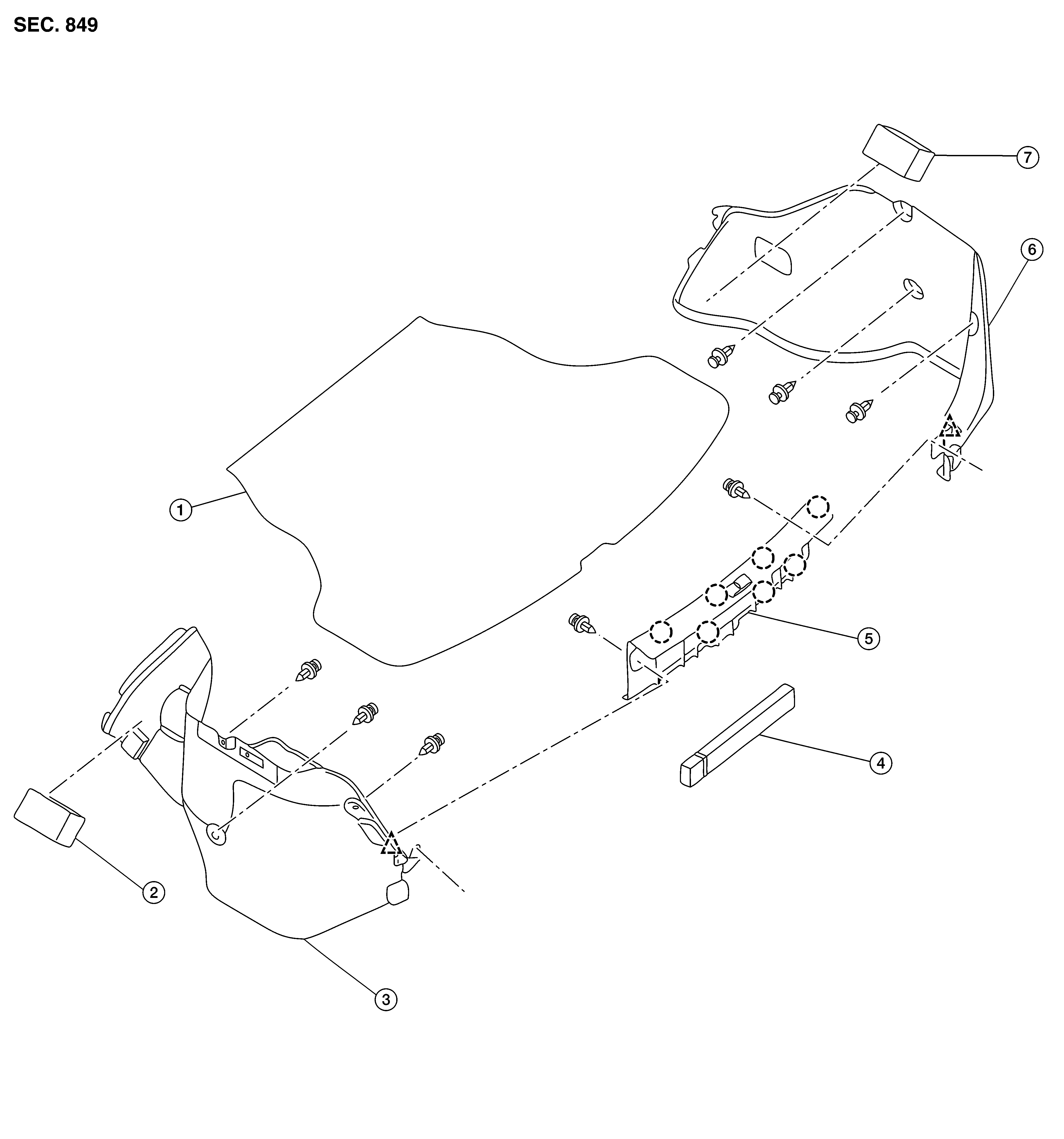

GNSDB122780Courtesy of NISSAN NORTH AMERICA, INC.
1. Trunk floor trim 2. Trunk front floor spacer (LH) 3. Trunk side finisher (LH)
4. Reflector box assembly* 5. Trunk rear plate 6. Trunk side finisher (RH)
7. Trunk front floor spacer (RH) SANKAKU-H Clip MARU-H Pawl
