Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

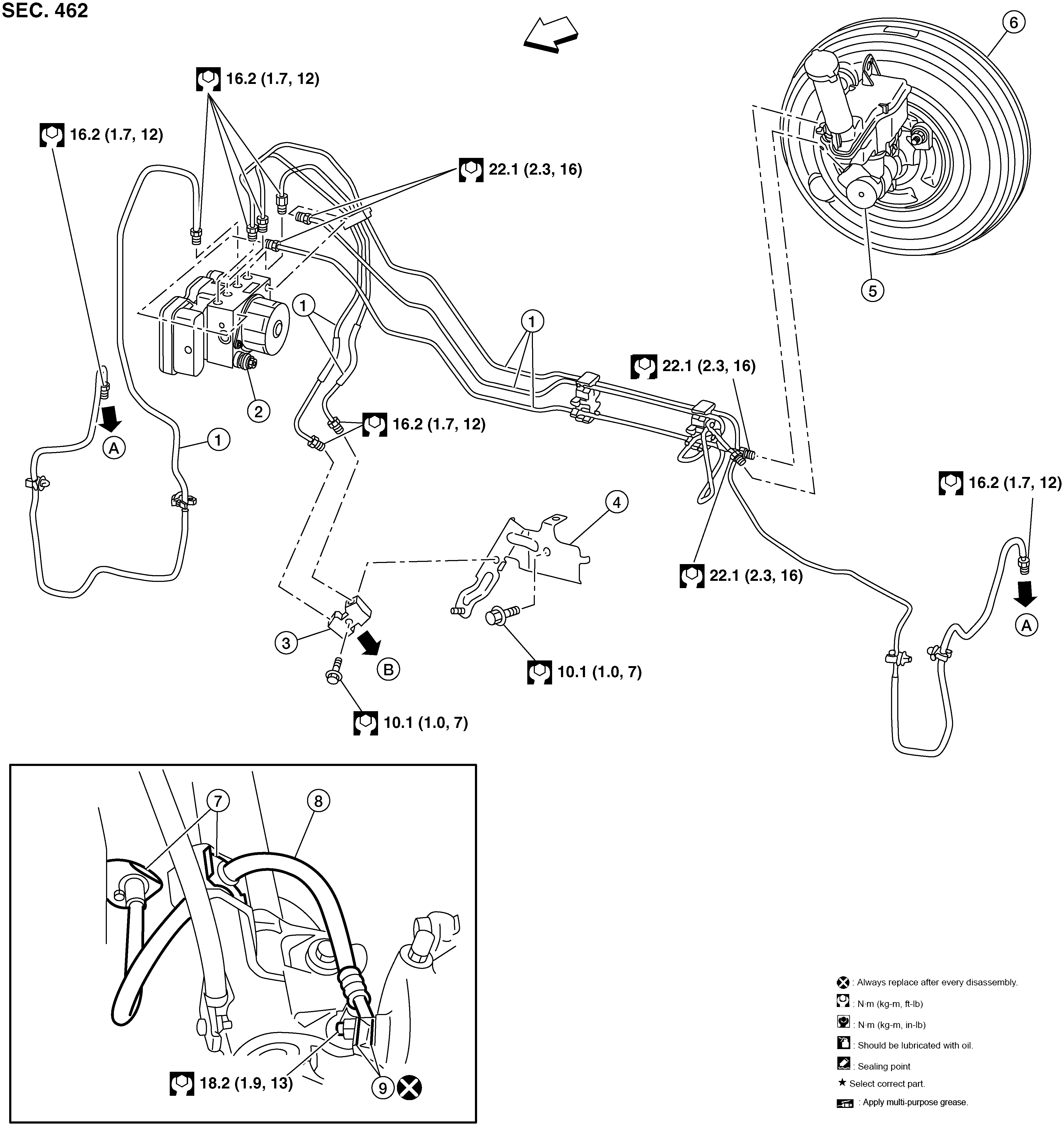

Fig 1: Exploded View Of Brake Piping With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake tube	2.	ABS actuator and electric unit (control unit)	3.	Connector
4.	Connector bracket	5.	Master cylinder assembly	6.	Brake booster
7.	Lock plate	8.	Brake hose	9.	Copper sealing washer
A.	To front brake hose	B.	To rear brake pipe		Front
