Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

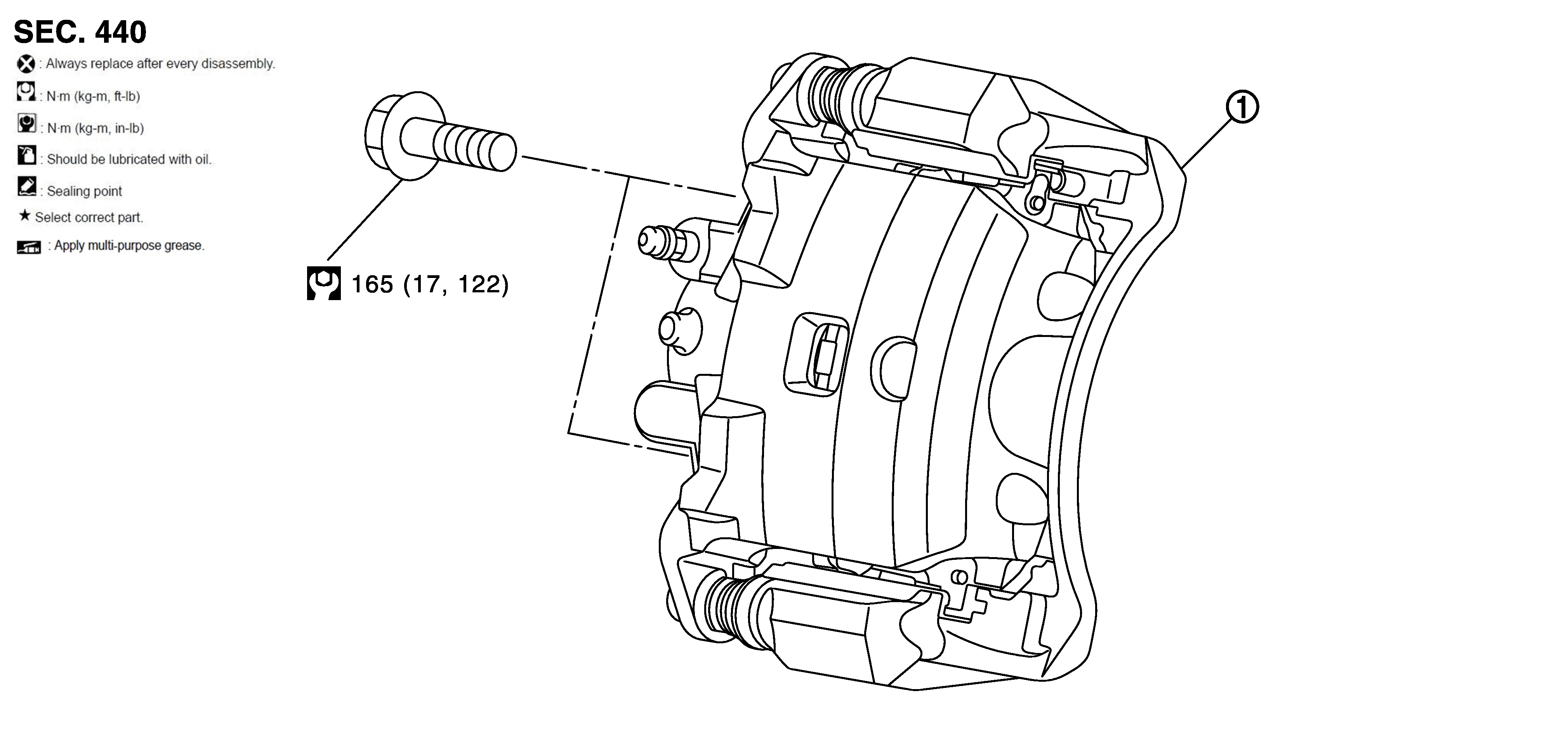

Fig 1: Exploded View Of Brake Caliper Assembly With Torque Specifications
G06933701Courtesy of NISSAN NORTH AMERICA, INC.
1. Brake caliper assembly
