Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

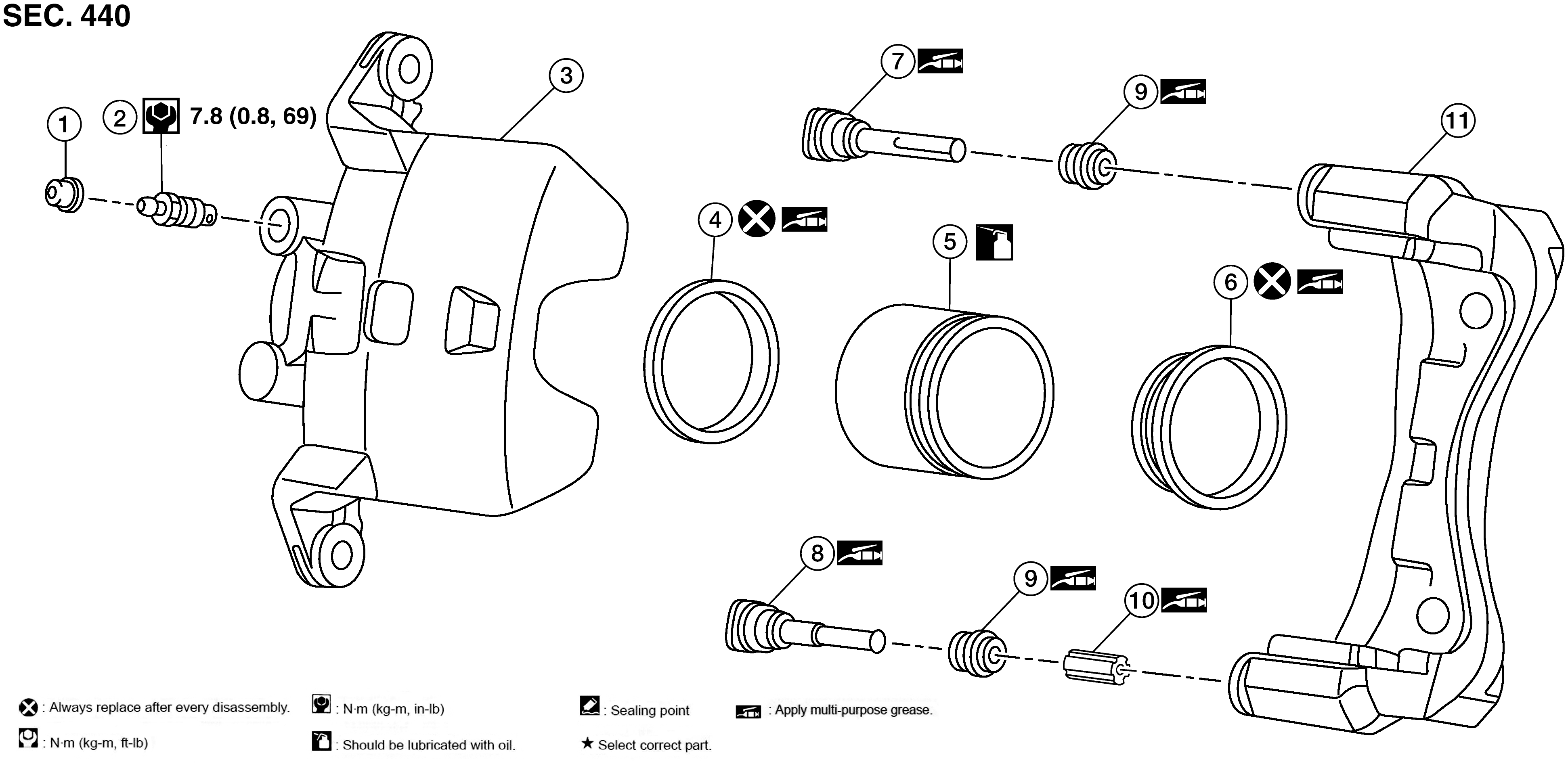

Fig 1: Exploded View Of Front Disc Brake With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cap	2.	Bleeder valve	3.	Cylinder body
4.	Piston seal	5.	Piston	6.	Piston boot
7.	Upper sliding pin	8.	Lower sliding pin	9.	Sliding pin boot
10.	Bushing	11.	Torque member		Apply brake fluid
	Apply rubber grease
