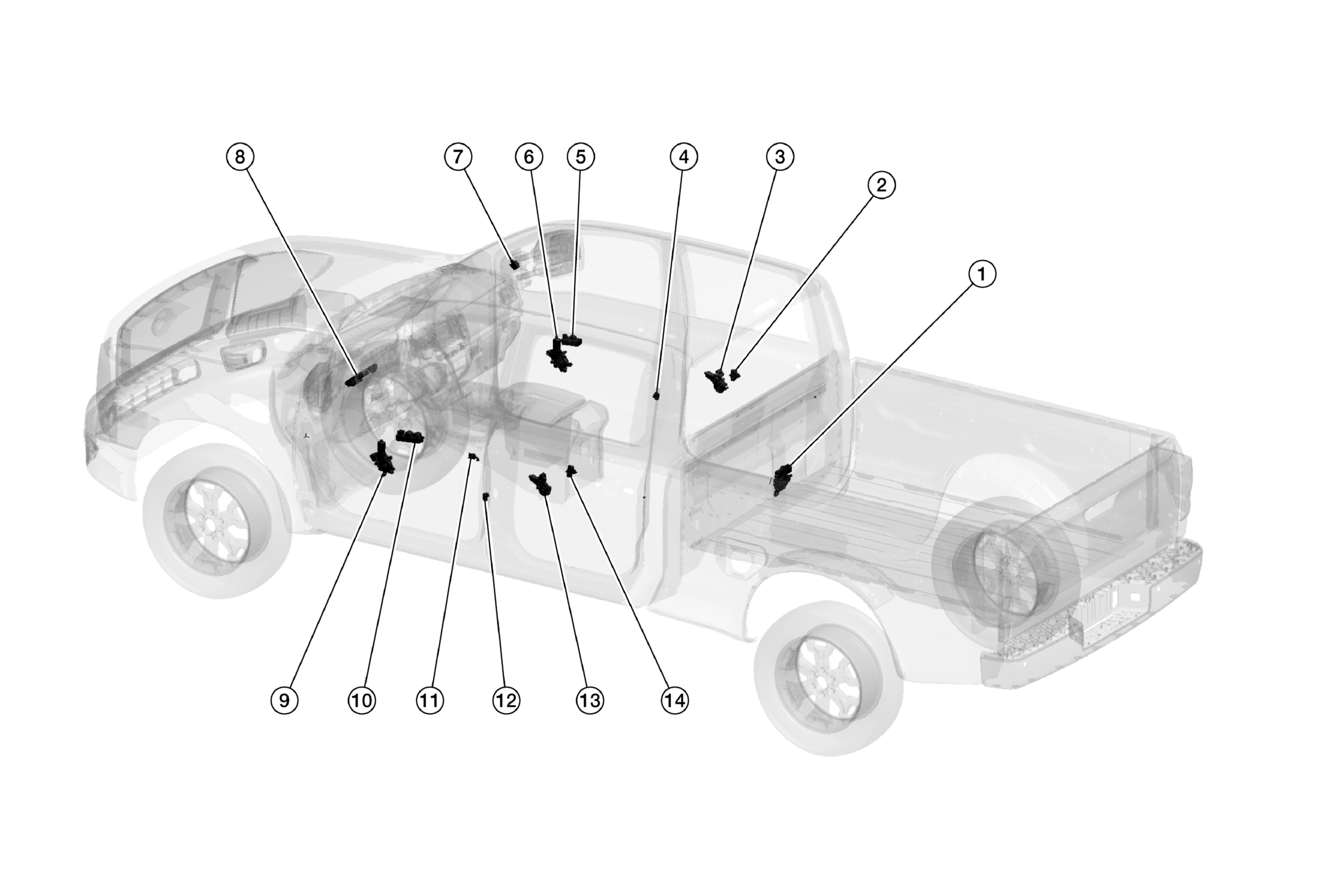

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Part	Function
1.	Rear Power Slide Glass Motor (If Equipped)	Refer to REAR POWER SLIDE GLASS MOTOR .
2.	Rear Power Window Switch RH (If Equipped)	Refer to REAR POWER WINDOW SWITCH .
3.	Rear Power Window Motor RH (If Equipped)	Refer to POWER WINDOW MOTOR .
4.	Front Door Switch RH	Detects door open/close condition and transmits to BCM. Refer to FRONT DOOR SWITCH .
5.	Power Window And Door Lock/Unlock Switch RH	Refer to POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH .
6.	Front Power Window Motor RH	Refer to POWER WINDOW MOTOR .
7.	Rear Power Slide Glass Switch (If Equipped)	Refer to REAR POWER SLIDE GLASS SWITCH .
8.	BCM	Supplies power to the window switches. Controls retained power. Refer to COMPONENT LOCATION for detailed installation location.
9.	Front power window motor LH	Refer to POWER WINDOW MOTOR .
10.	Main power window and door lock/unlock switch	Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH- WITH CREW CAB , or MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH- EXCEPT CREW CAB .
11.	Front door lock assembly LH (key cylinder switch)	Transmits operation condition of door key cylinder switch to main power window and door lock/unlock switch.
12.	Front door switch LH	Detects door open/close condition and transmits to BCM. Refer to FRONT DOOR SWITCH .
13.	Rear power window motor LH (if equipped)	Refer to POWER WINDOW MOTOR .
14.	Rear power window switch LH (if equipped)	Refer to REAR POWER WINDOW SWITCH .
