Exploded View

XD Models

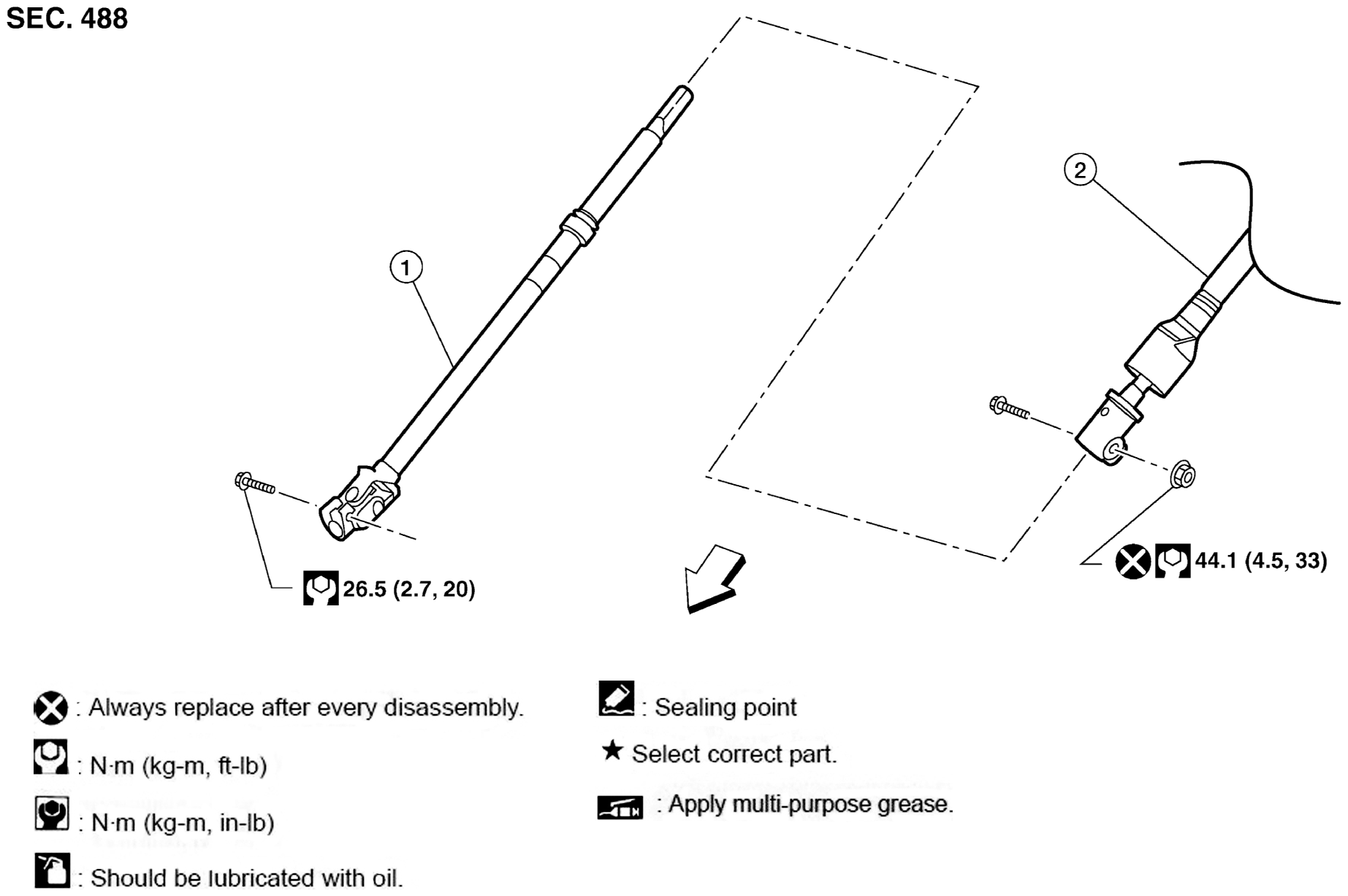

Fig 1: Lower Joint XD With Torque Specifications

GNSAWGIA0408ZZ-408

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Intermediate shaft

Front

Non-XD Models

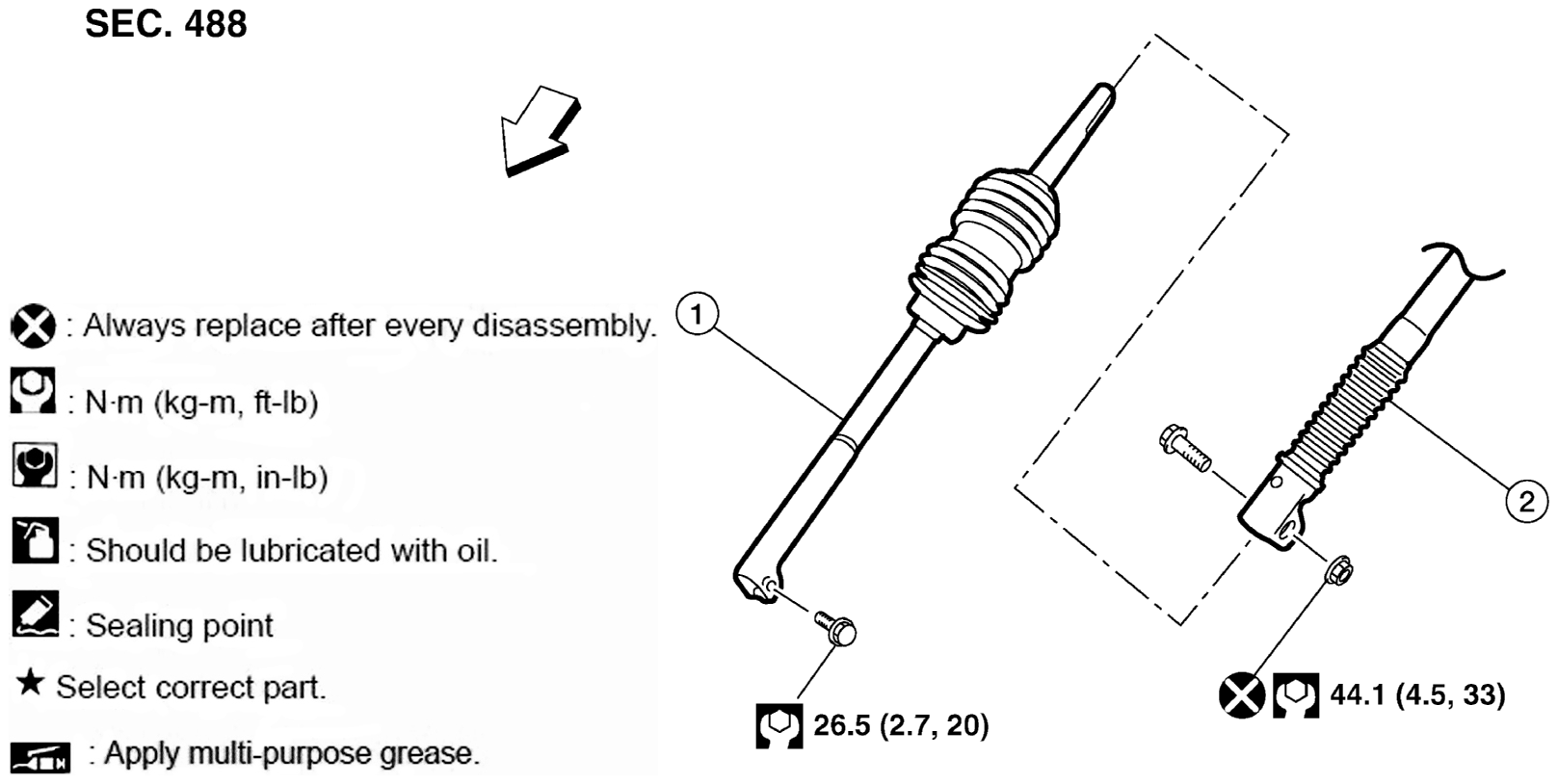

Fig 2: Lower Joint Except XD With Torque Specifications

GNSAWGIA0466ZZ-466

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Intermediate shaft

Front
