Component Location

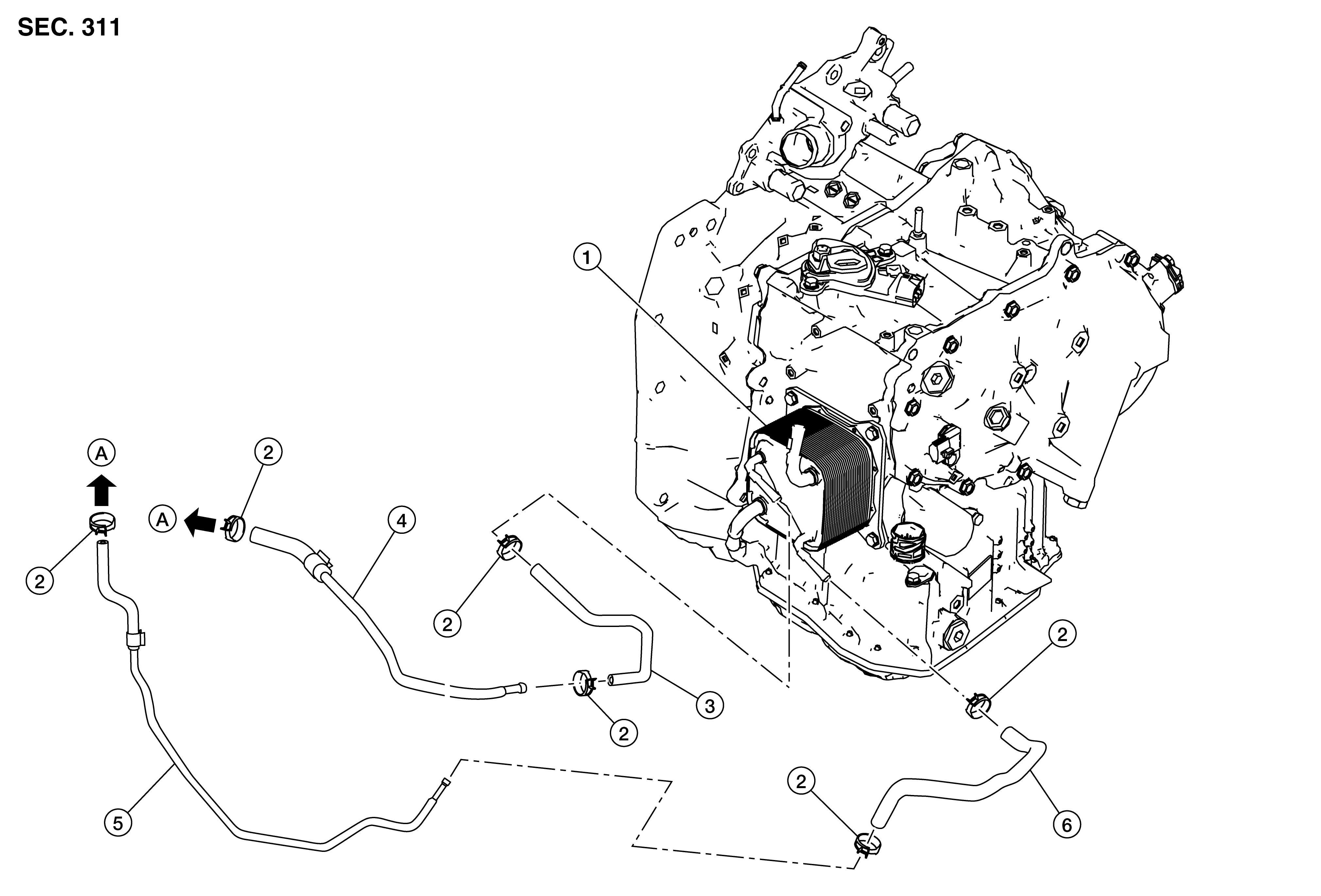

GNSALDIA1080ZZ-080Courtesy of NISSAN NORTH AMERICA, INC.
1. Oil warmer 2. Hose clamp 3. CVT fluid cooler hose A
4. CVT fluid cooler tube A 5. CVT fluid cooler tube B 6. CVT fluid cooler hose B
A. To radiator
