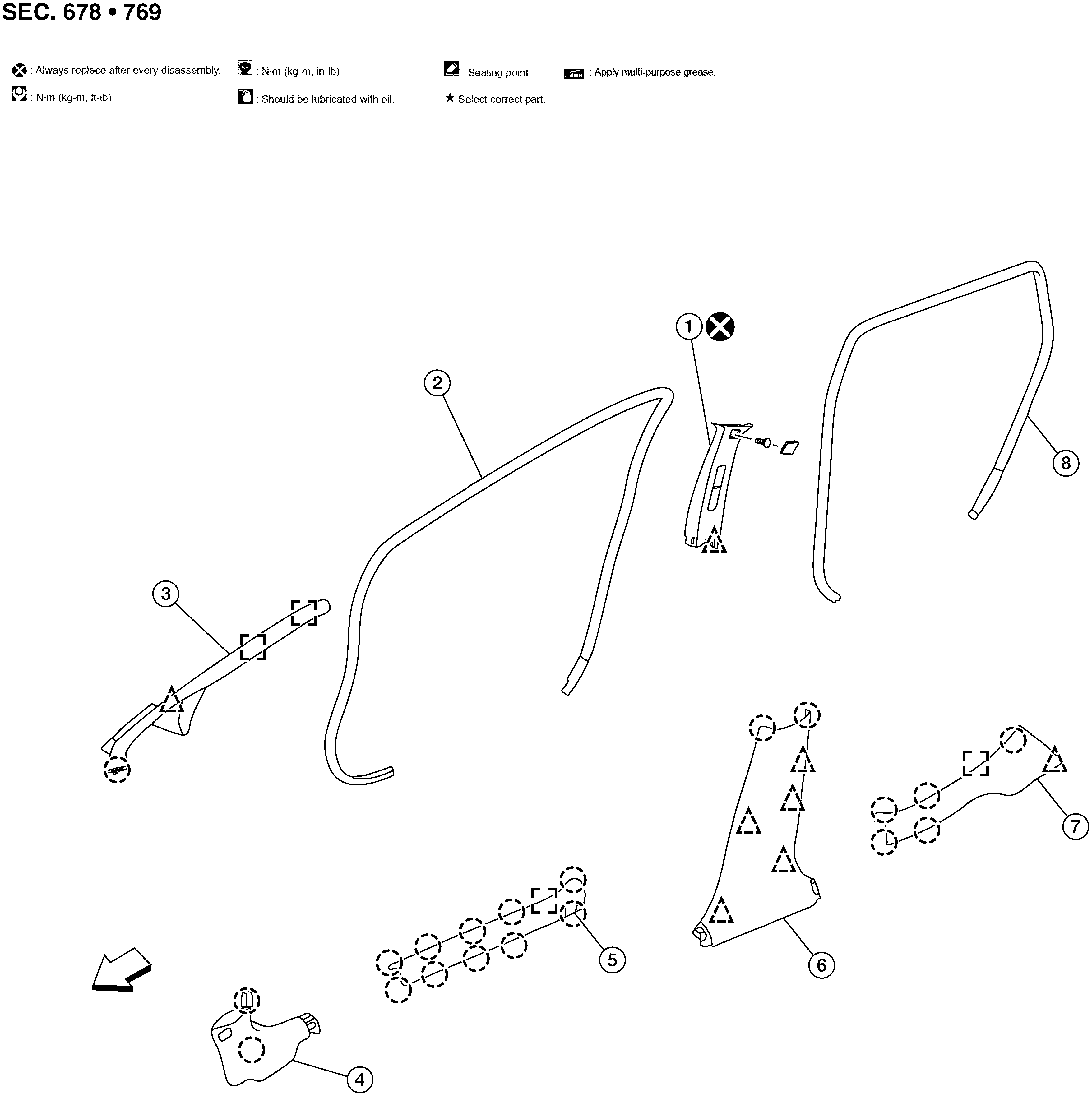

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center pillar upper finisher (RH)	2.	Front body side welt (RH)	3.	Front pillar finisher (RH)
4.	Dash side finisher (RH)	5.	Front kicking plate (RH)	6.	Center pillar lower finisher (RH)
7.	Rear kicking plate (RH)	8.	Rear body side welt (RH)		Front
	Clip		Pawl		Metal clip
