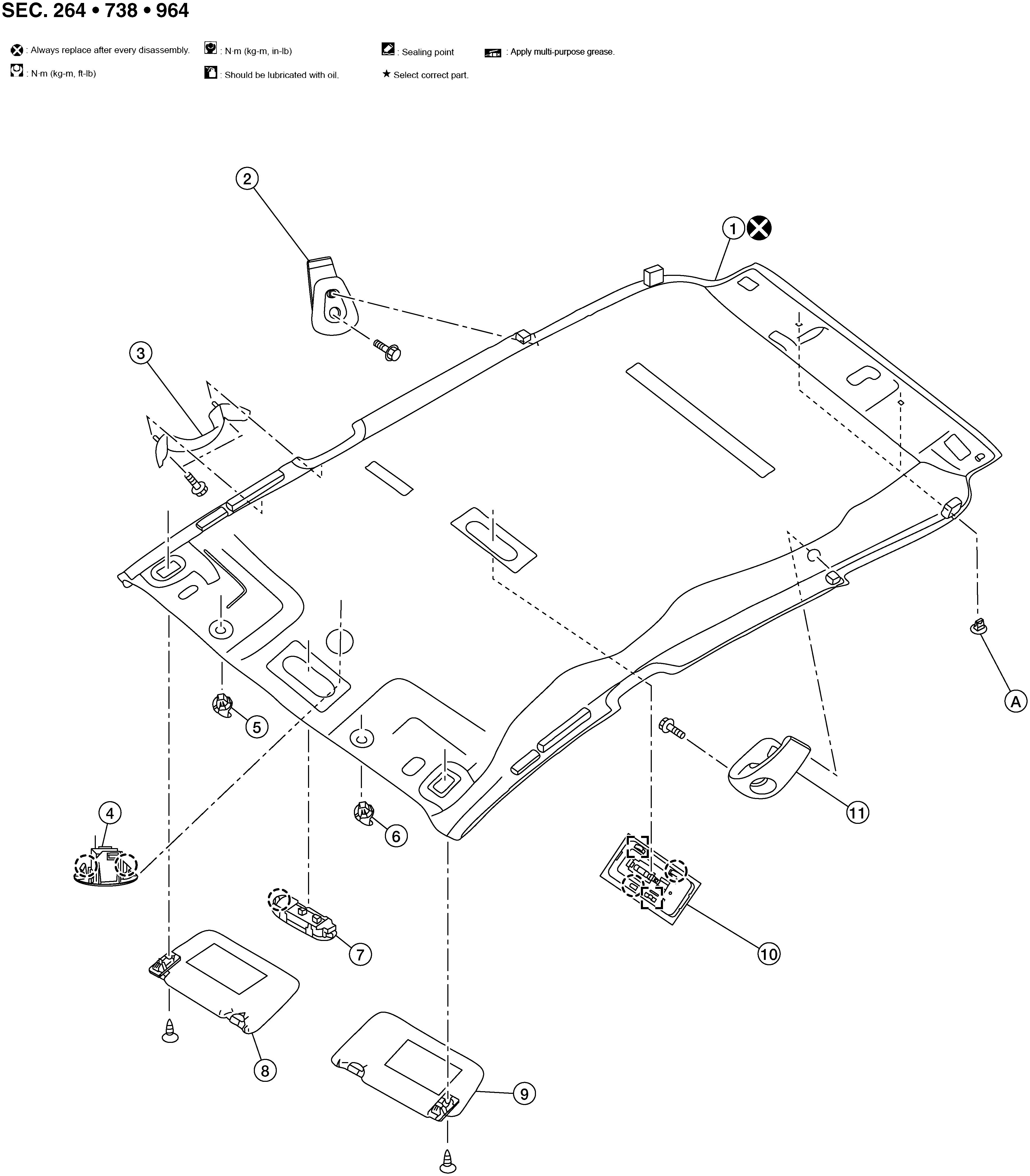

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Headlining
2.
Coat hanger (RH)
3.
Front assist grip (RH)
4.
Microphone (if equipped)
5.
Sun visor holder (RH)
6.
Sun visor holder (LH)
7.
Map lamp
8.
Sun visor (RH)
9.
Sun visor (LH)
10.
Interior room lamp
11.
Coat hanger (LH)
A.
Headlining clip
Pawl
Metal clip
