Exploded View

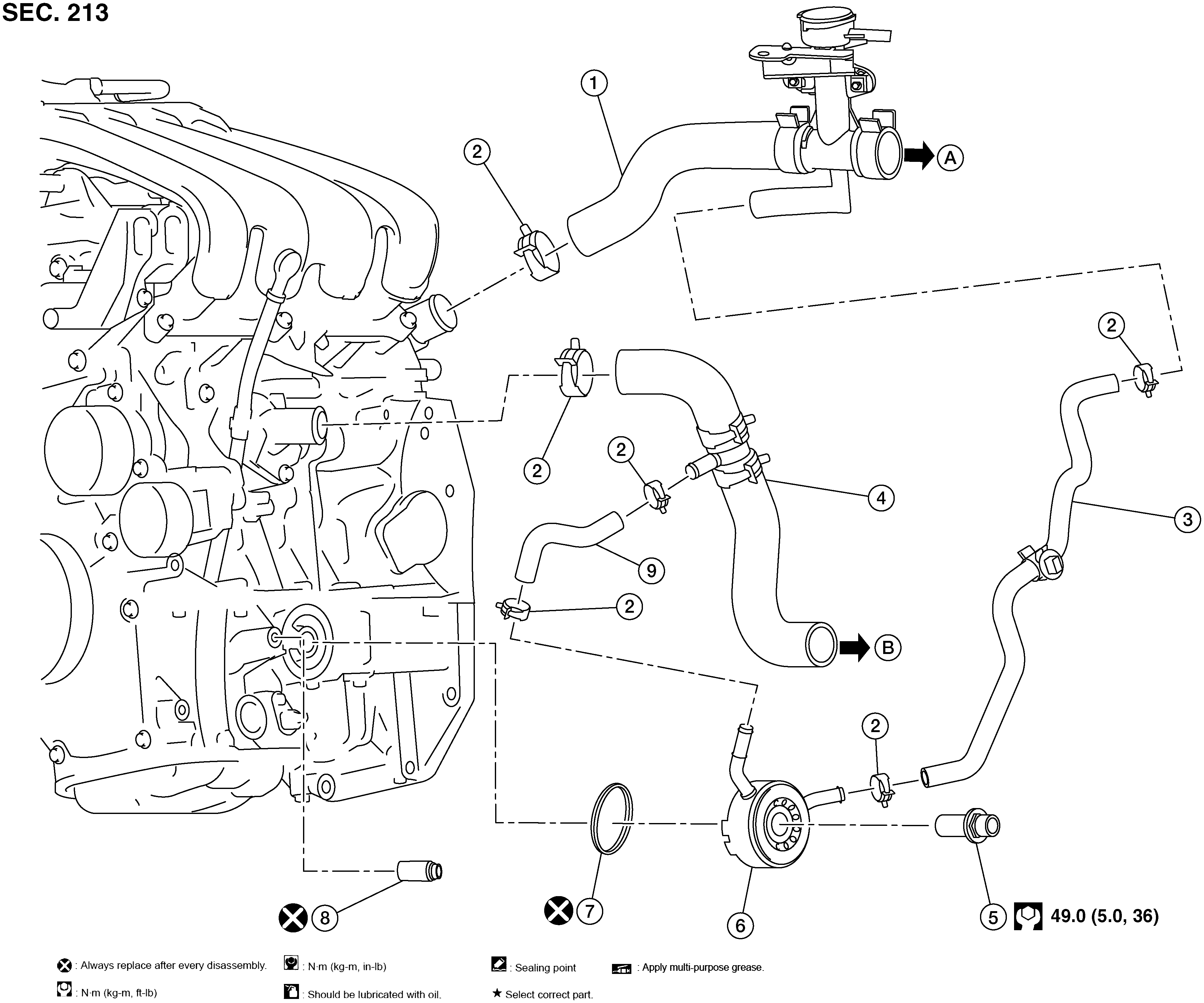

Fig 1: Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Radiator hose and radiator cap adapter assembly (upper)	2.	Hose clamp	3.	Water hose
4.	Radiator hose (lower)	5.	Connector bolt	6.	Oil cooler
7.	O-ring	8.	Relief valve	9.	Water hose
A.	To radiator (upper side)	B.	To radiator (lower side)
