Exploded View

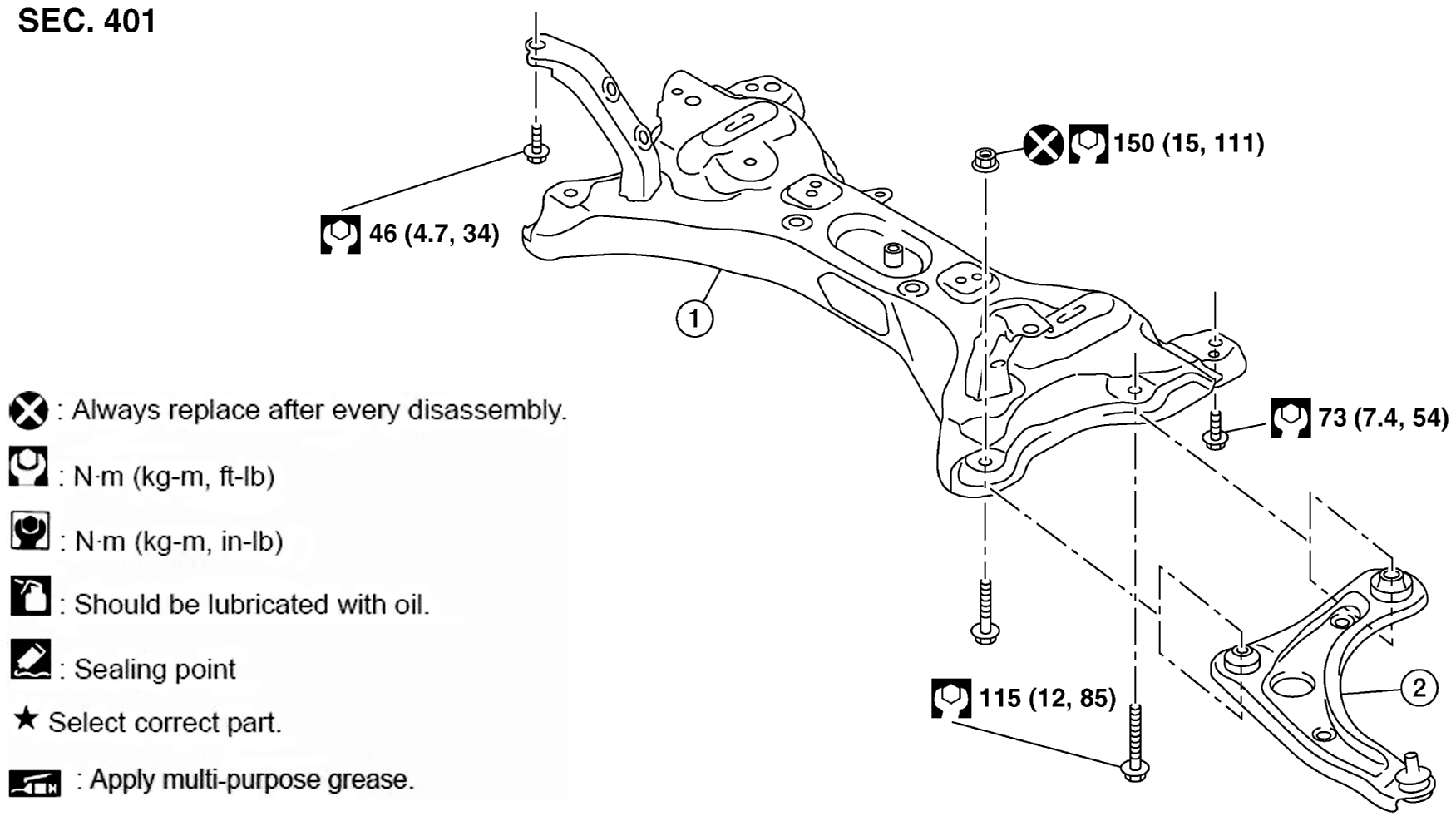

Fig 1: Transverse Link With Torque Specifications
GNSAWEIA0482ZZ-482Courtesy of NISSAN NORTH AMERICA, INC.
1. Front suspension member 2. Transverse link
