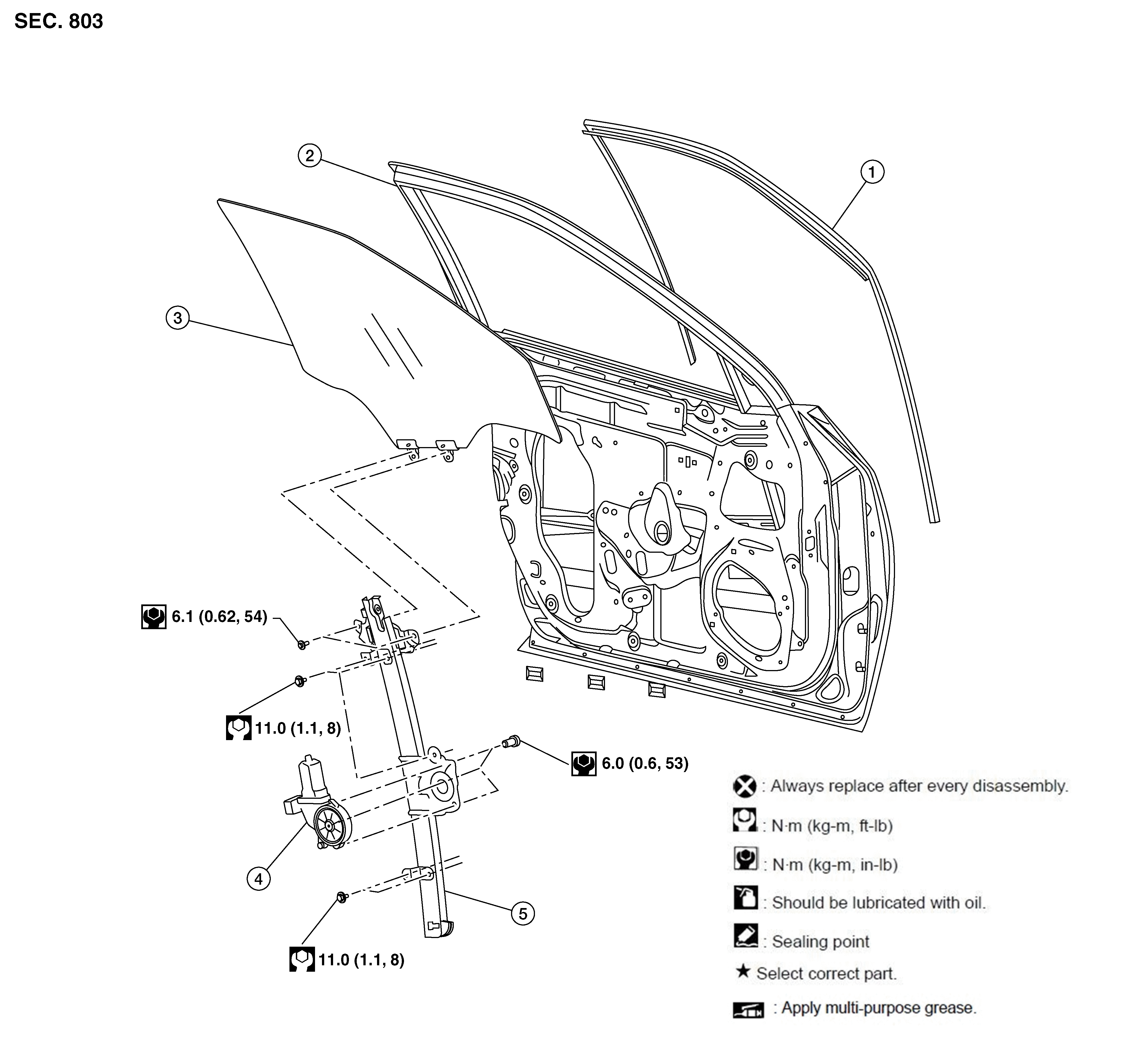

Exploded View

GNSAWKIA3522Z-522Courtesy of NISSAN NORTH AMERICA, INC.

1.

Door glass rubber run

2.

Door

3.

Door glass

4.

Front power window motor

5.

Door glass regulator
