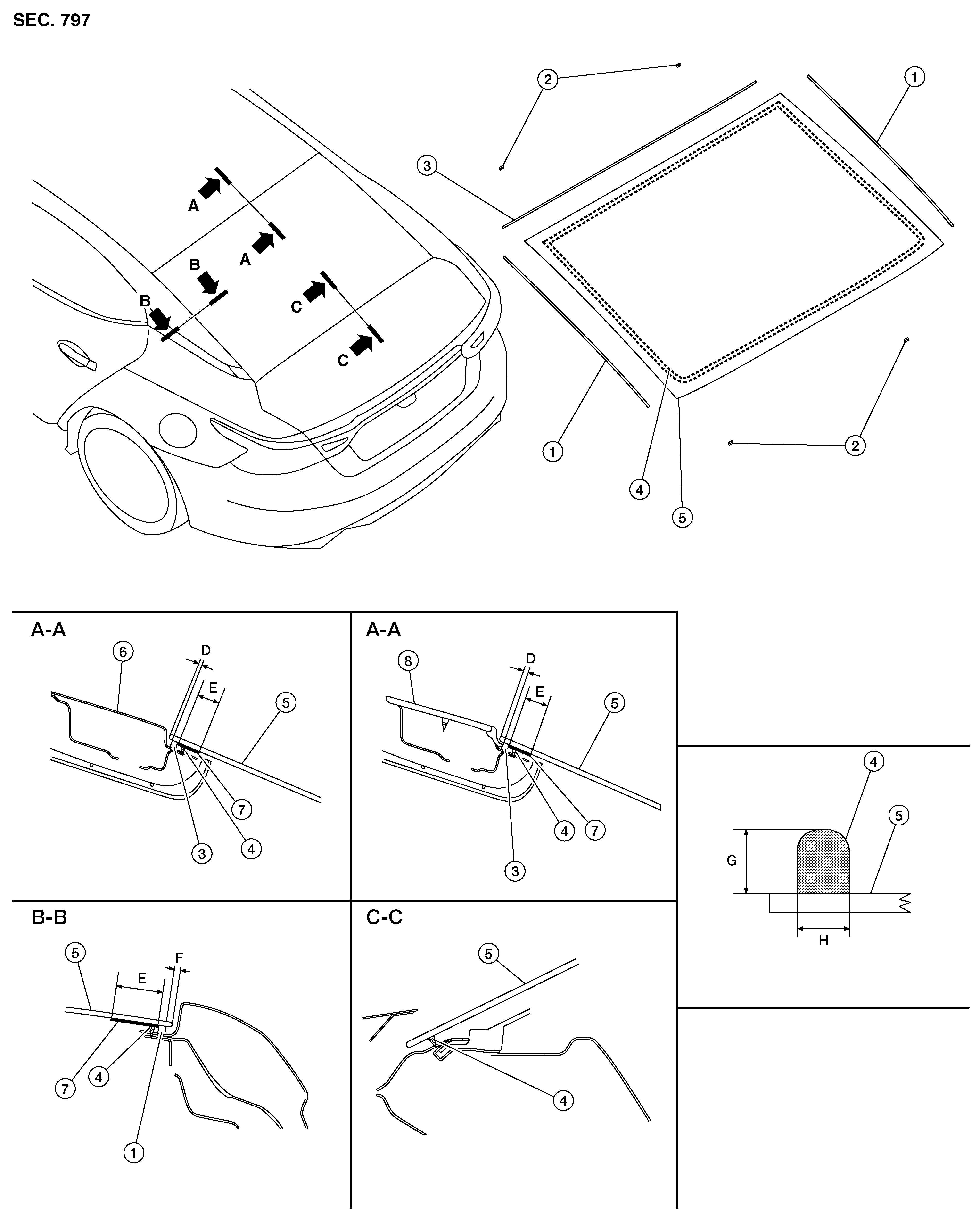

Exploded View

1.

Dam sealant rubber (side)

2.

Spacer

3.

Dam sealant rubber (upper)

4.

Adhesive

5.

Rear window glass

6.

Metal roof

7.

Glass primer

8.

Double panel sunroof

D.

2.7 mm (0.11 in)

E.

16 +2, -0 mm (0.63 +0.08, -0 in)

F.

4 mm (0.16 in)

G.

12 +2, -0 mm (0.47 +0.08, -0 in)

H.

7 +2, -0 mm (0.28 +0.08, -0 in)
