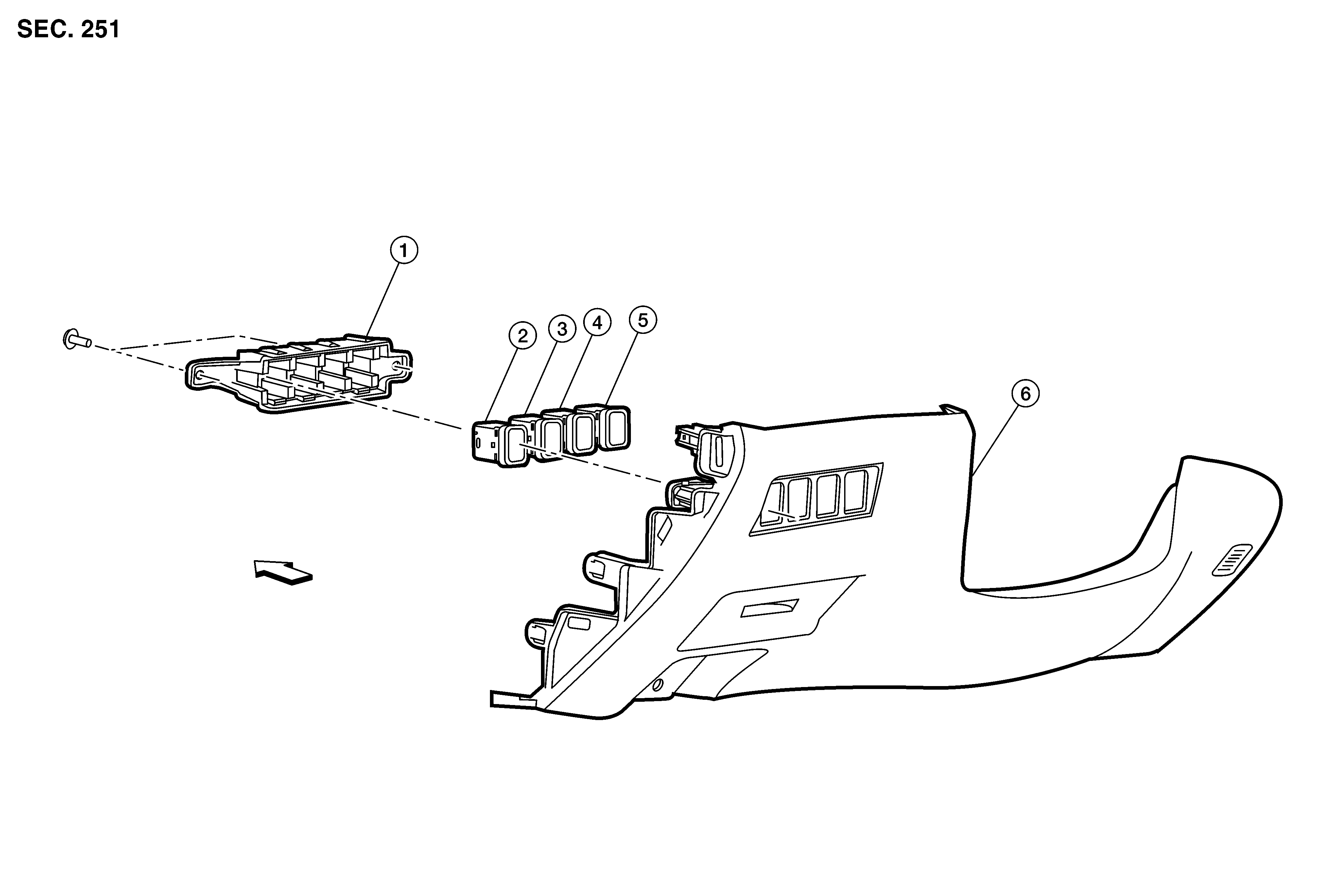

Exploded View

GNSALJIA1725Z-725Courtesy of NISSAN NORTH AMERICA, INC.

1.

Switch carrier

2.

Trunk lid opener switch

3.

VDC OFF switch

4.

Heated steering wheel switch (if equipped)

5.

Rear sunshade switch (if equipped)

6.

Instrument lower panel LH

SYMBOL

Front
