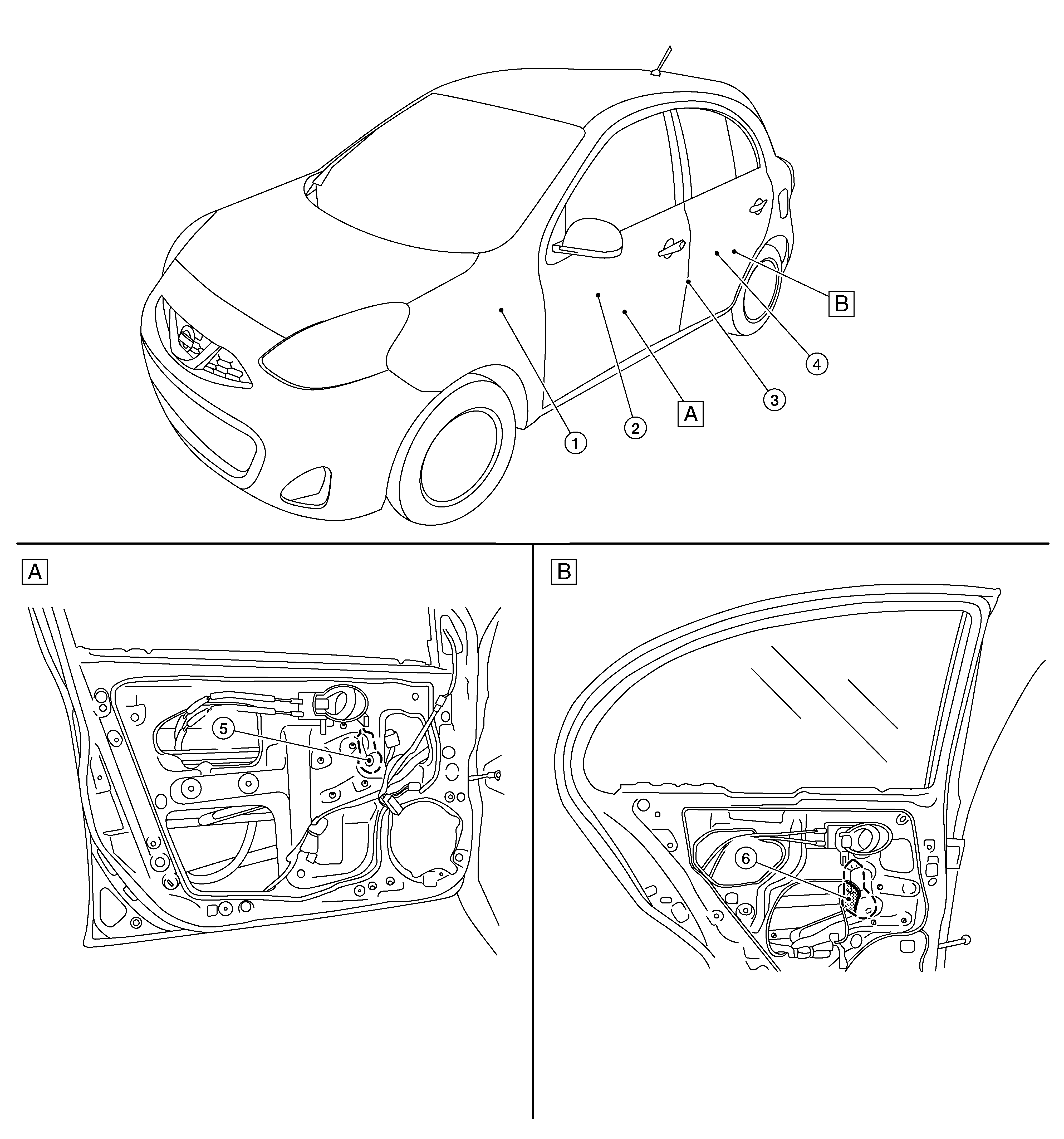

Component Location

A.

View with LH front door finisher removed

B.

View with LH rear door finisher removed

No.

Component parts

Function

1.

BCM

• Supplies power supply to power window switch.
• Controls retained power.
• Refer to Component Location for detailed installation location.

2.

Main Power Window And Door Lock/Unlock Switch

Refer to Main Power Window And Door Lock/Unlock Switch .

3.

Front Door Switch LH

• Inputs door open/close condition to BCM.
• Refer to Door Switch for detailed installation location.

4.

Rear Power Window Switch LH

Refer to Power Window Switch .

5.

Front Power Window Motor LH

Refer to Power Window Motor .

6.

Rear Power Window Motor LH

Refer to Power Window Motor .
