Exploded View

Fig 1: Front Wheel Sensor With Torque Specifications
GNSAWFIA0984Z-984SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Front wheel sensor

A.

Front wheel sensor harness connector

SYMBOL

Front

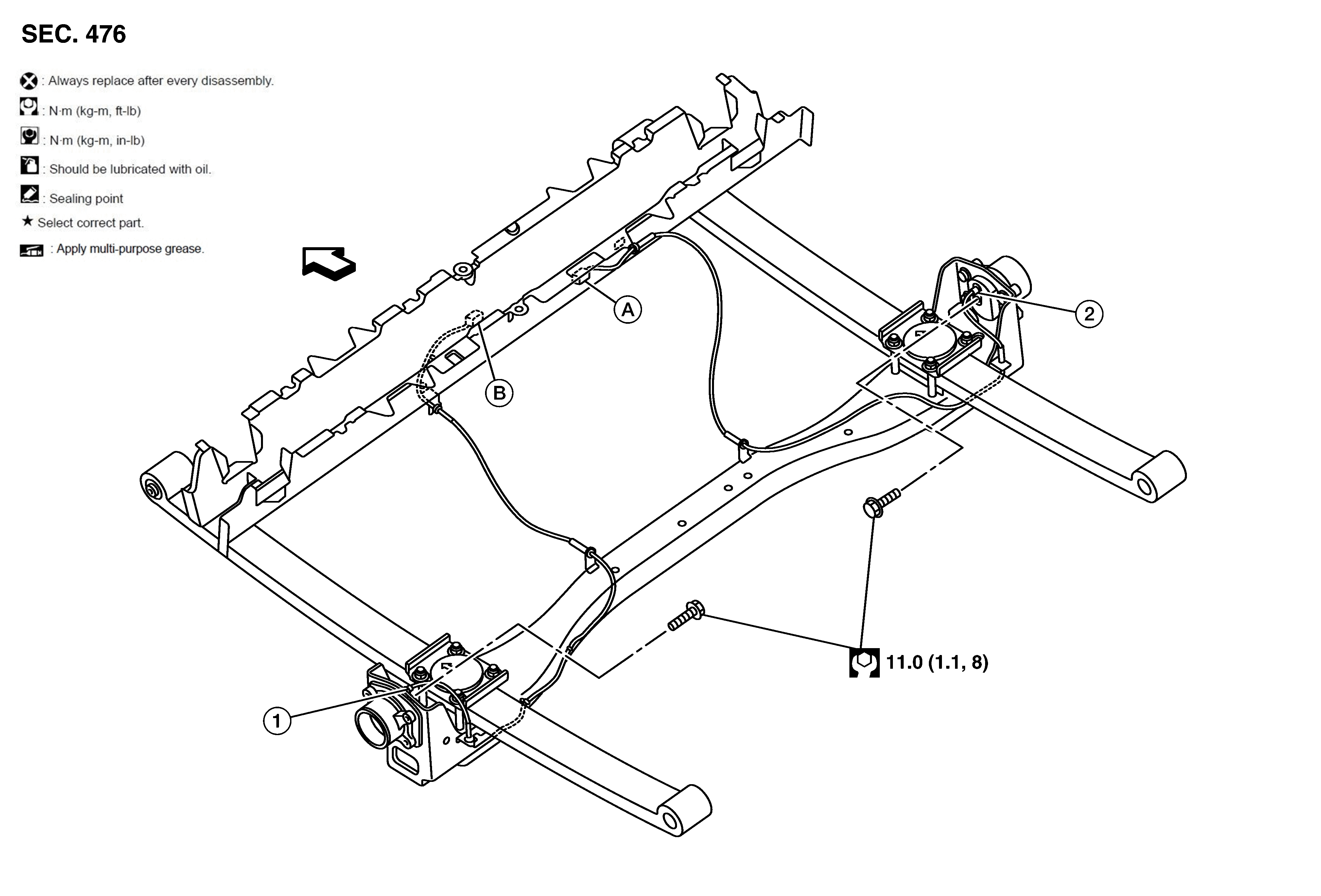

Fig 1: Rear Wheel Sensor With Torque Specifications
GNSAWFIA0985Z-985SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Rear wheel sensor (LH)

2.

Rear wheel sensor (RH)

A.

Rear wheel sensor harness connector (RH)

B.

Rear wheel sensor harness connector (LH)

SYMBOL

Front
