Exploded View

Fig 1: Front Stabilizer With Torque Specifications
GNSAWEIA0291Z-291Courtesy of NISSAN NORTH AMERICA, INC.

1.

Stabilizer bar

2.

Stabilizer clamp

3.

Stabilizer bushing

4.

Stabilizer connecting rod

5.

Front coil spring and strut

6.

Front suspension member

SYMBOL

Front

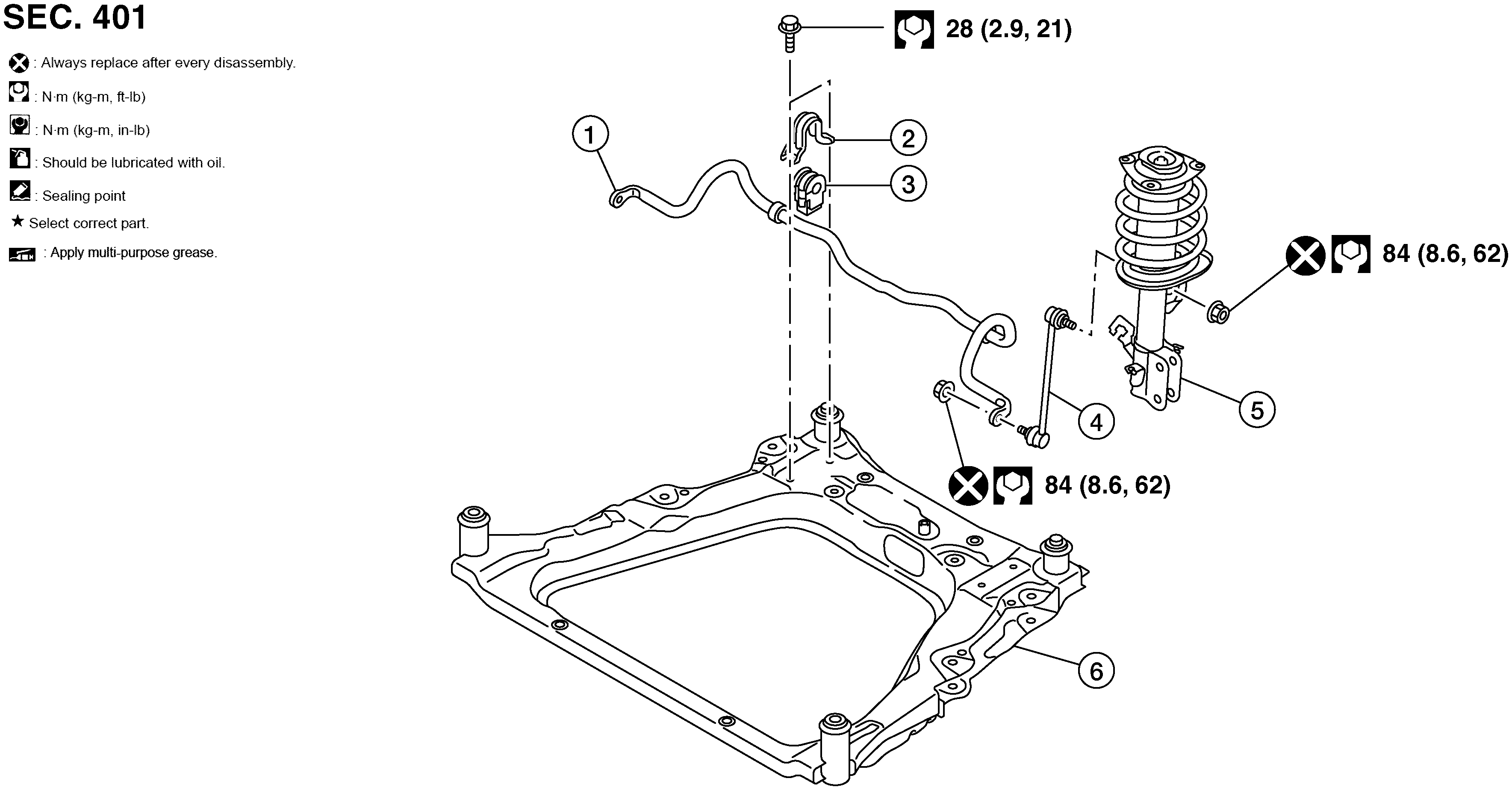

Fig 1: Stabilizer Bar With Torque Specifications
GNSAWEIA0499Z-499Courtesy of NISSAN NORTH AMERICA, INC.

1.

2.

Stabilizer clamp

3.

Stabilizer bushing

4.

Stabilizer connecting rod

5.

Front coil spring and strut

6.

Front suspension member
