Combination Switch Matrix (Without Variable Intermittent Wipers)
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

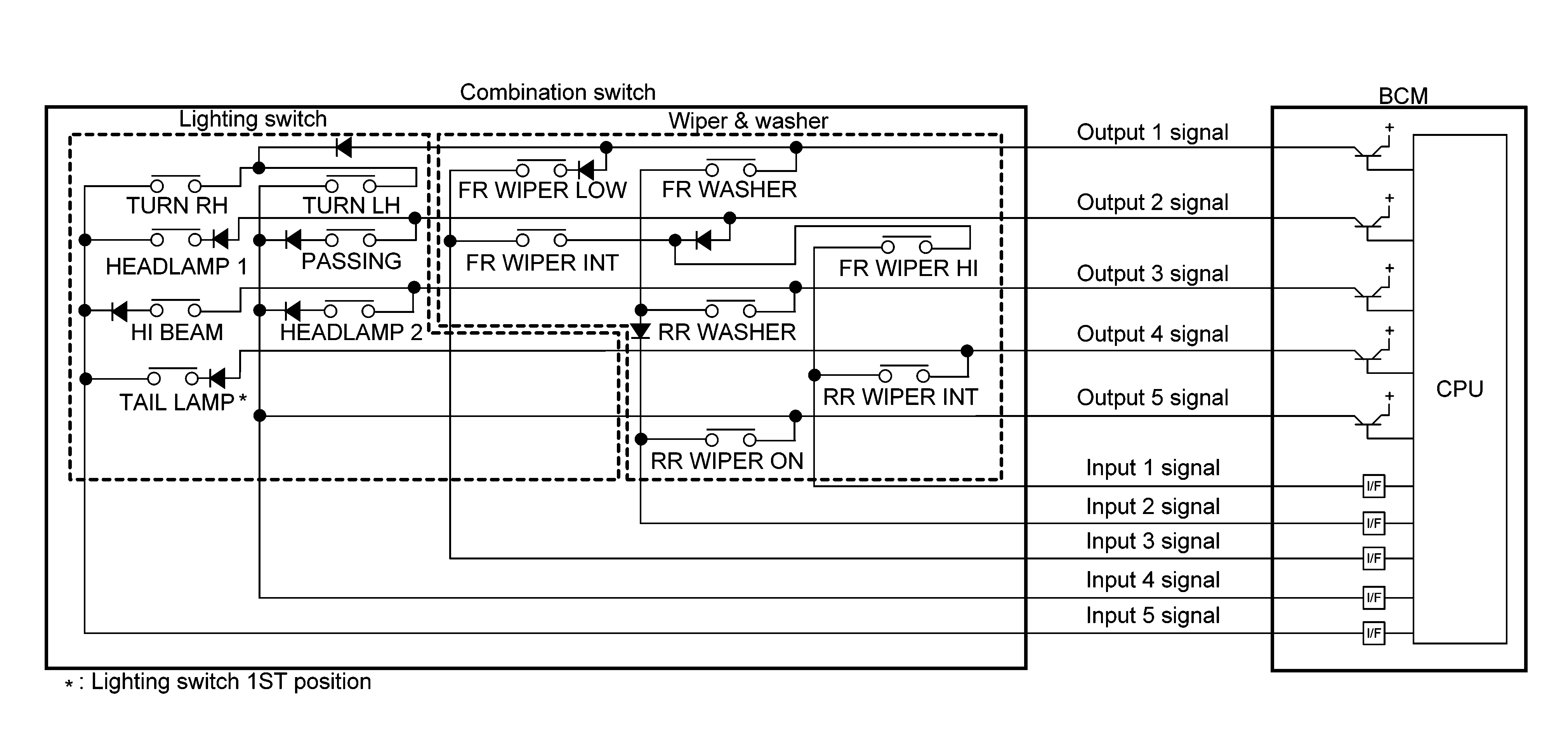

Combination Switch Circuit (Without Variable Intermittent Wipers)
COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST
| System | INPUT 1 | INPUT 2 | INPUT 3 | INPUT 4 | INPUT 5 |
|---|---|---|---|---|---|
| OUTPUT 1 | - | FR WASHER | FR WIPER LOW | TURN LH | TURN RH |
| OUTPUT 2 | FR WIPER HI | - | FR WIPER INT | PASSING | HEADLAMP 1 |
| OUTPUT 3 | - | RR WASHER | - | HEADLAMP 2 | HI BEAM |
| OUTPUT 4 | RR WIPER INT | - | - | - | TAIL LAMP |
| OUTPUT 5 | - | RR WIPER ON | - | - | - |
