System Description

The intelligent engine control function can be turned ON/OFF through the vehicle information display.

CORNERING CONTROL

For the purpose of reducing the operation of switching to depress the brake pedal during cornering, the operation information of the driver is computed by the chassis control module and a command is transmitted to TCM.
Based on the command from the chassis control module, TCM shifts the gear ratio of the transaxle to the low side and applies the engine brake.

Courtesy of NISSAN NORTH AMERICA, INC.

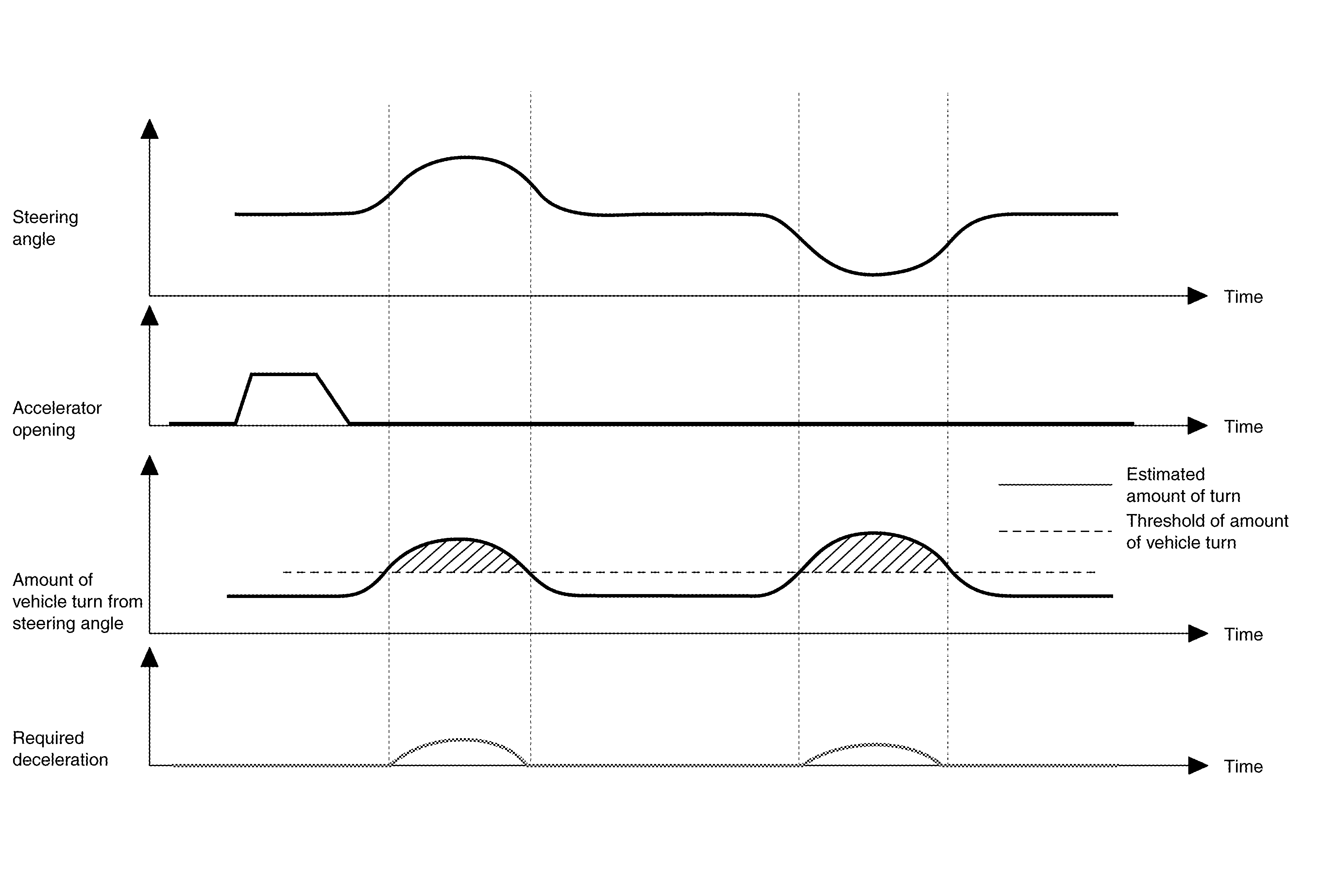

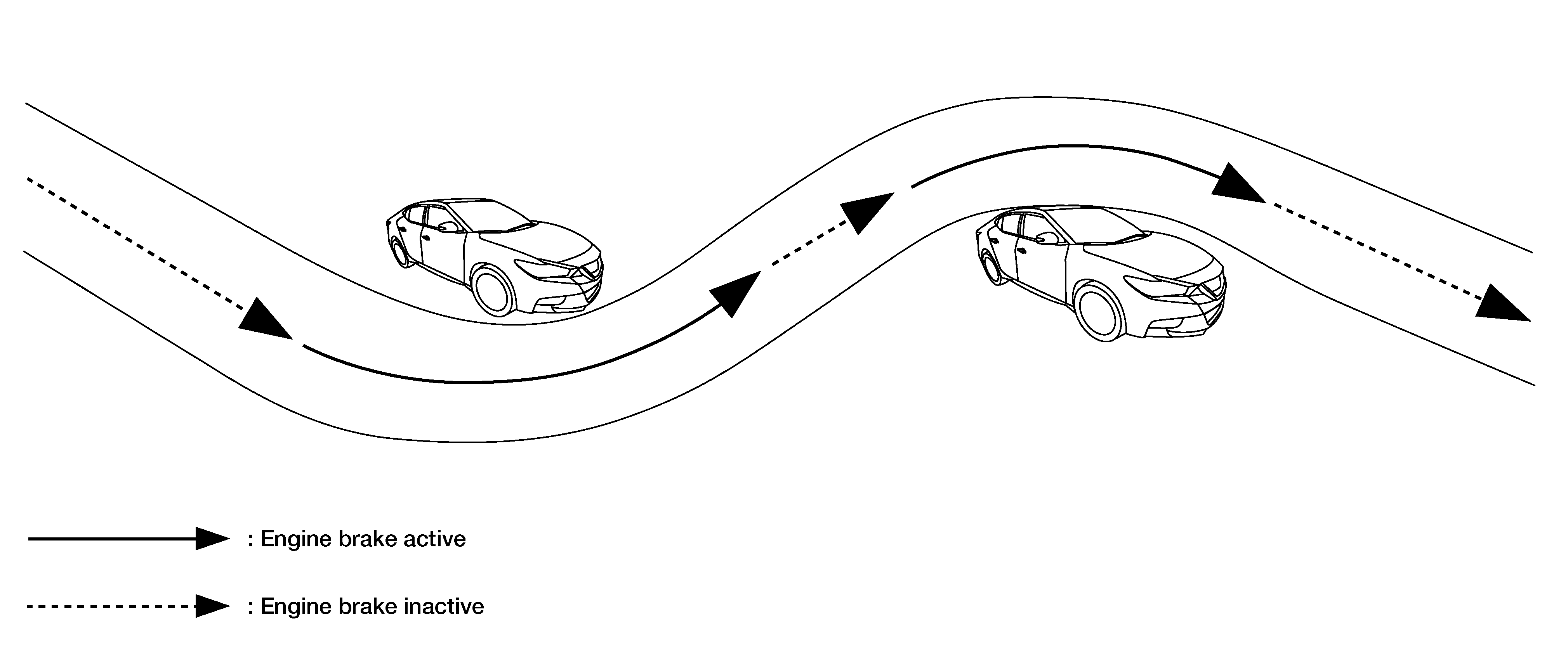

- The transaxle is controlled according to the steering operation of the driver as well as the accelerator pedal condition and cornering condition of the vehicle.

Courtesy of NISSAN NORTH AMERICA, INC.

BRAKING CONTROL

For the purpose of improving the feeling of effectiveness of the brake when decelerating, the brake operation amount of the driver is computed by the chassis control module and a command is transmitted to TCM.
Based on the command from the chassis control module, TCM shifts the gear ratio of the transaxle to the low side and applies the engine brake.

Courtesy of NISSAN NORTH AMERICA, INC.

- The transaxle is controlled according to the brake condition.

Courtesy of NISSAN NORTH AMERICA, INC.

SYSTEM DIAGRAM

NOTE: TCM is applied to CVT models.

Courtesy of NISSAN NORTH AMERICA, INC.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table:

Component parts	Signal description
ECM	Mainly transmits the following signals to chassis control module via CAN communication: Accelerator pedal position signal Estimate drive torque signal Request drive torque status signal
ABS actuator and electric unit (control unit)	Mainly transmits the following signals to chassis control module via CAN communication: Front LH wheel speed signal Front RH wheel speed signal Rear LH wheel speed signal Rear RH wheel speed signal VDC operation signal Side G signal Brake fluid pressure signal Steering angle signal Mainly receives the following signal from chassis control module via CAN communication: Intelligent engine brake control signal
BCM	Mainly transmits the following signal to chassis control module via CAN communication: Stop lamp switch signal
IPDM E/R	Mainly transmits the following signal to chassis control module via CAN communication: Ignition switch ON signal
TCM	Mainly transmits the following signal to chassis control module via CAN communication: CVT accept permission signal
Combination meter	Mainly transmits the following signal to chassis control module via CAN communication: Intelligent engine brake setting change request signal Mainly receives the following signals from chassis control module via CAN communication: Curve display request signal Tire display request signal Intelligent engine brake setting display request signal
