CVT Position: Adjustment

Shift the shift selector to the "P" position.
CAUTION: Turn wheels at least a quarter turn and be certain the park position mechanism is fully engaged.

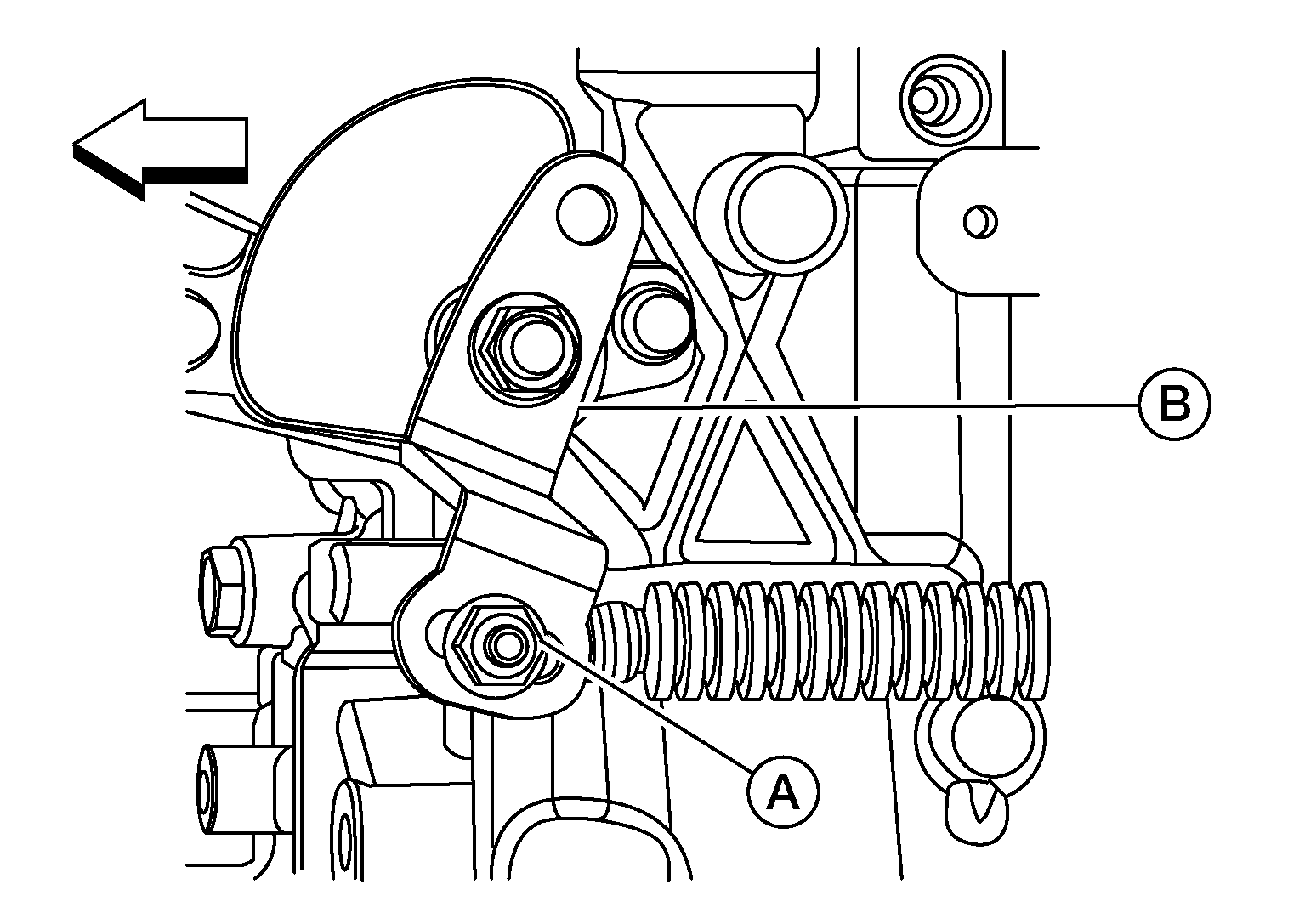

Loosen the control cable nut (A) and set manual lever (B) the "P" position.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

CAUTION: Do not apply force to the manual lever.
Position the manual lever in the "P" position.
Tighten the control cable nut to specified torque. Refer to Exploded View .
CAUTION: Hold manual lever securely in the "P" position when tightening control cable nut (A).
