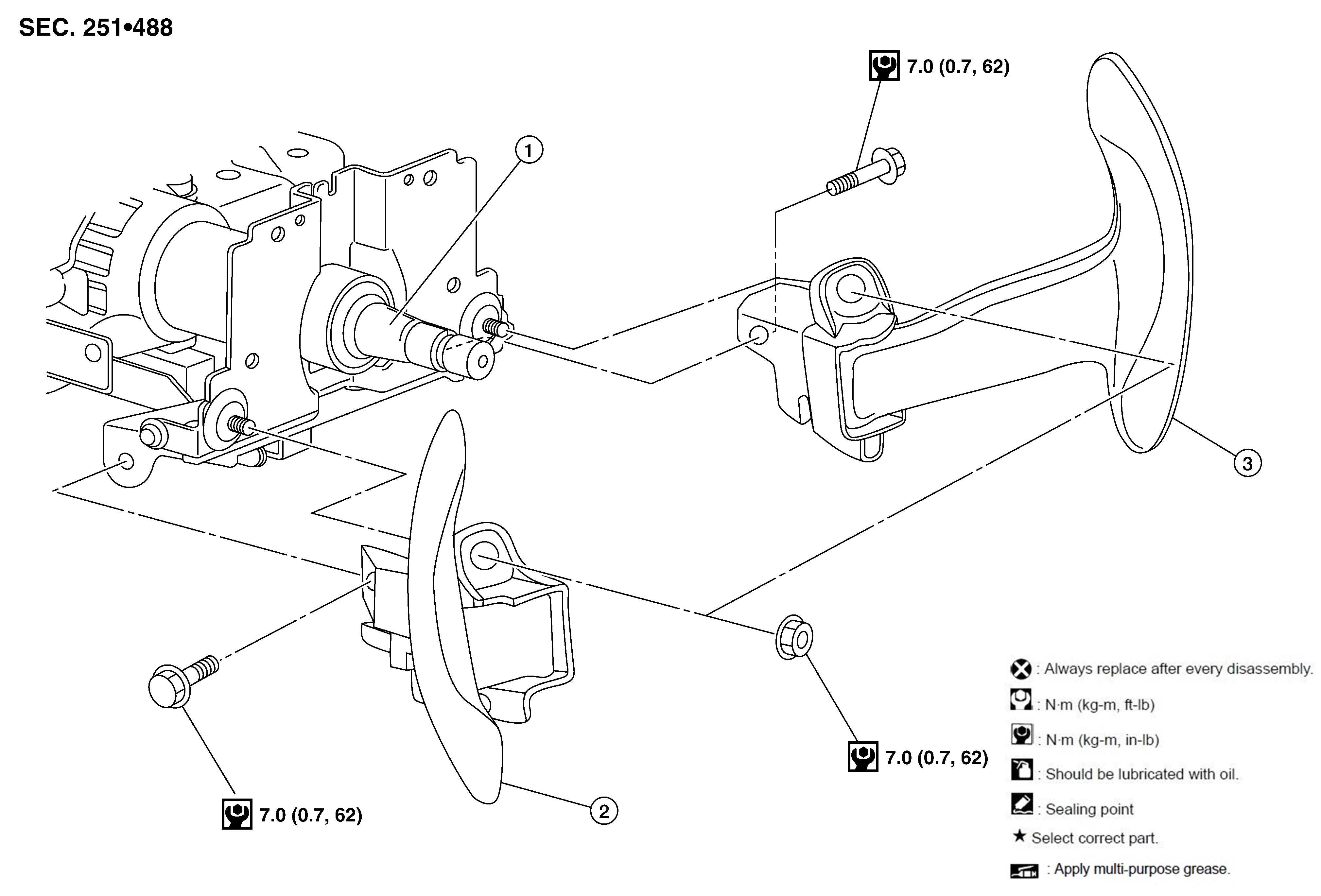

Exploded View

GNSAWDIA0557GB-557Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Paddle shifter (shift-down)

3.

Paddle shifter (shift-up)
