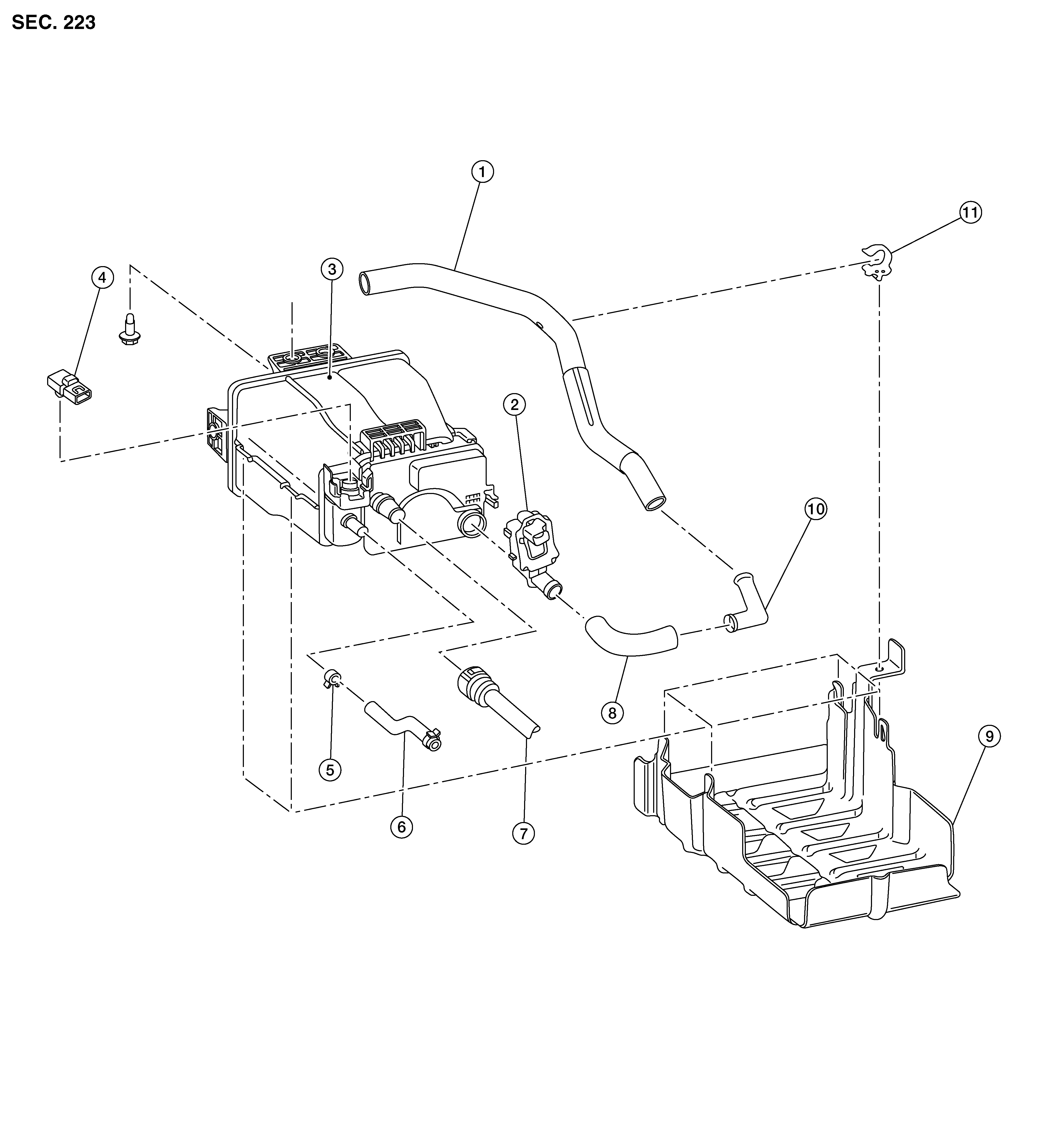

Exploded View

GNSALBIA06Z-006Courtesy of NISSAN NORTH AMERICA, INC.

1.

EVAP canister vent control valve hose

2.

EVAP canister vent control valve

3.

EVAP canister

4.

EVAP canister control pressure sensor

5.

Hose clamp

6.

EVAP canister purge hose

7.

EVAP canister vent line

8.

EVAP canister vent control valve hose

9.

Hose protector

10.

EVAP canister vent control valve hose connector

11.

Clip
