FUEL LEVEL SENSOR UNIT : Disassembly & Assembly: Notes

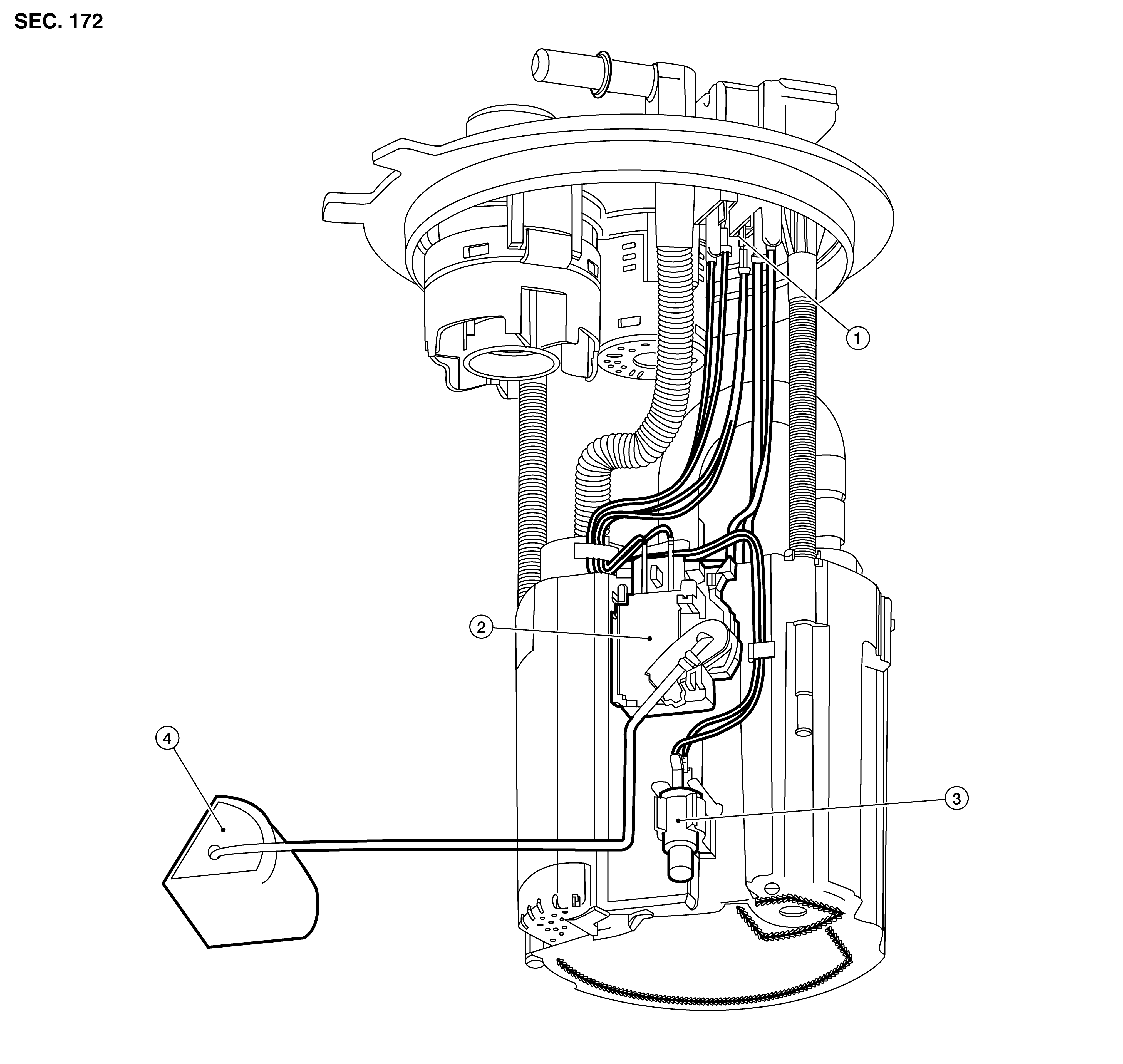

GNSDB112037Courtesy of NISSAN NORTH AMERICA, INC.

1.

Harness connectors

2.

Level sending unit module

3.

Fuel temperature sensor

4.

Float arm assembly
