Removal and Installation: Installation
Installation is in the reverse order of removal.
CAUTION:
- During installation, finger-tighten all of the bracket and joint retaining bolts, then tighten them to specification.
- When installing the steering column cover, check that the vehicle harness is not stuck in the cover.
- Replace the steering column if it has been dropped or sustained an impact.
- For intermediate shaft bolt direction, refer to Exploded View .

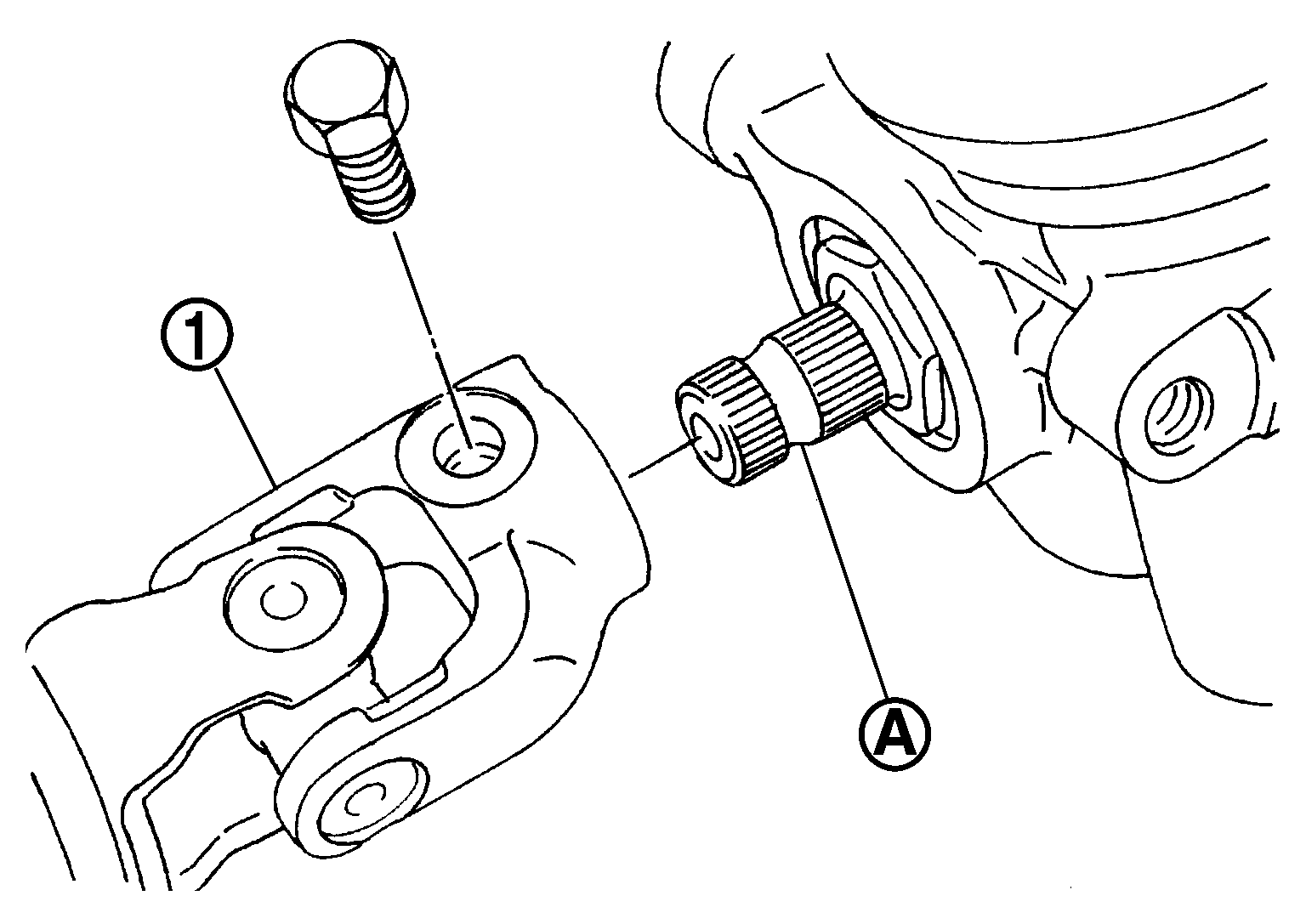

- When connecting intermediate shaft upper side (1) and column shaft, make sure the bolt is securely seated in groove (A) of column shaft before final tightening.
- After installing steering column, perform self-diagnosis with CONSULT to ensure correct operation. Refer to CONSULT Function .
- Inspect steering column after installation. Refer to Inspection .
- Adjust the neutral position of the steering angle sensor. Refer to Description .
