CVT Position: Adjustment

  1. Move the shift selector to the "P" position.
    CAUTION: Rotate the wheels at least a quarter turn and be certain the transaxle is locked in the "P" position.

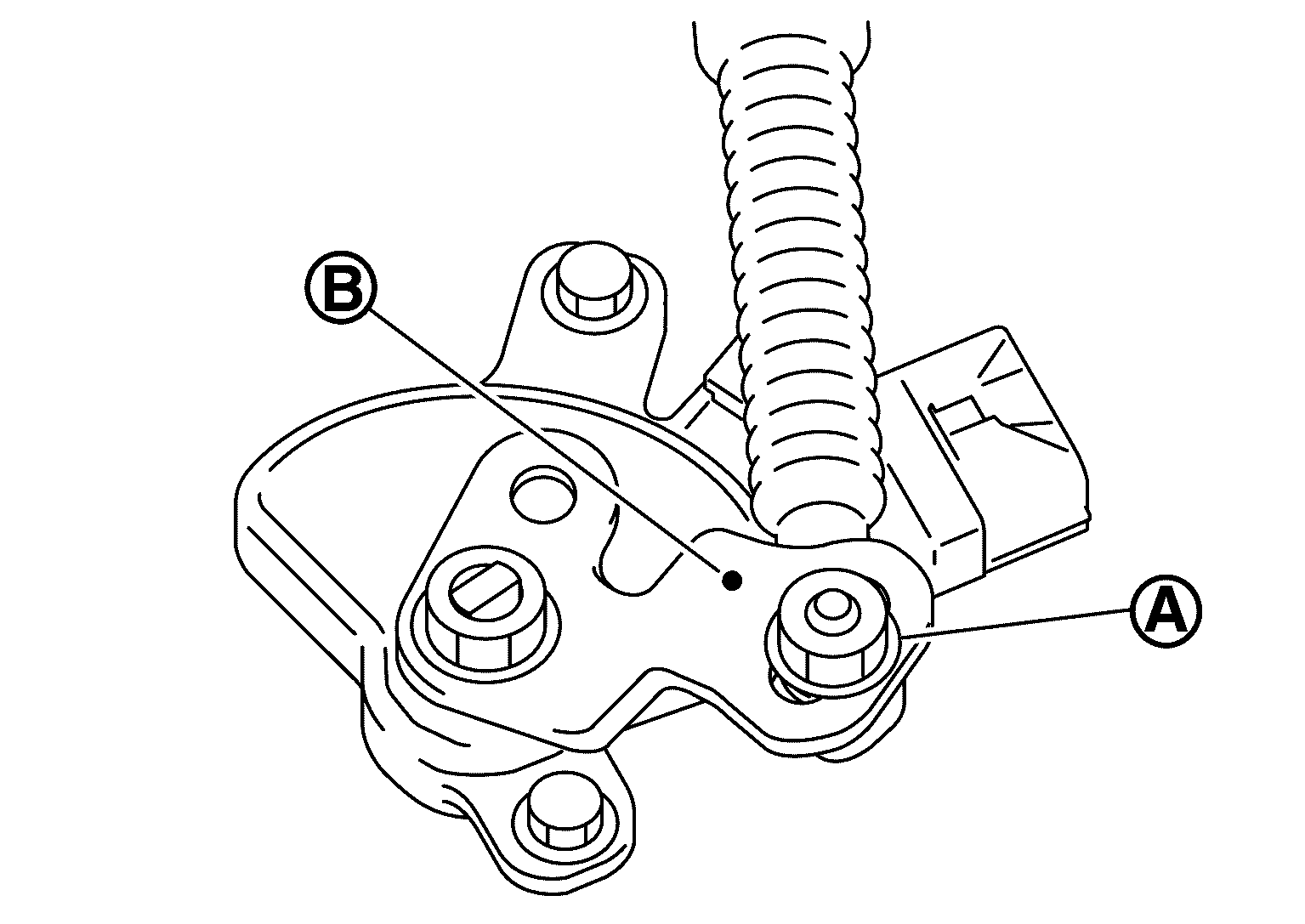

  2. Remove nut (A) and set manual lever (B) to the "P" position.
    GNSJSDIA1875Z-875Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not apply force to the manual lever.
  3. Tighten nuts to the specified torque. Refer to Exploded View .
    CAUTION: Do not move the manual lever when tightening.
