Function Description

The AEB system measures the distance from a vehicle ahead using the distance sensor installed in the front bumper and lane camera unit installed in the windshield glass.
The AEB system detects a pedestrian using the lane camera unit installed in the windshield glass.
When the system judges that a vehicle or pedestrian is being approached, "approach warning" is displayed in the combination meter and at the same time a warning chime sounds, and the brake is operated.
When it is further judged that the vehicle or pedestrian may collide with the vehicle ahead, the system operates the brake strongly to avoid collision while it displays AEB warning on the combination meter and rings a warning chime.

Courtesy of NISSAN NORTH AMERICA, INC.

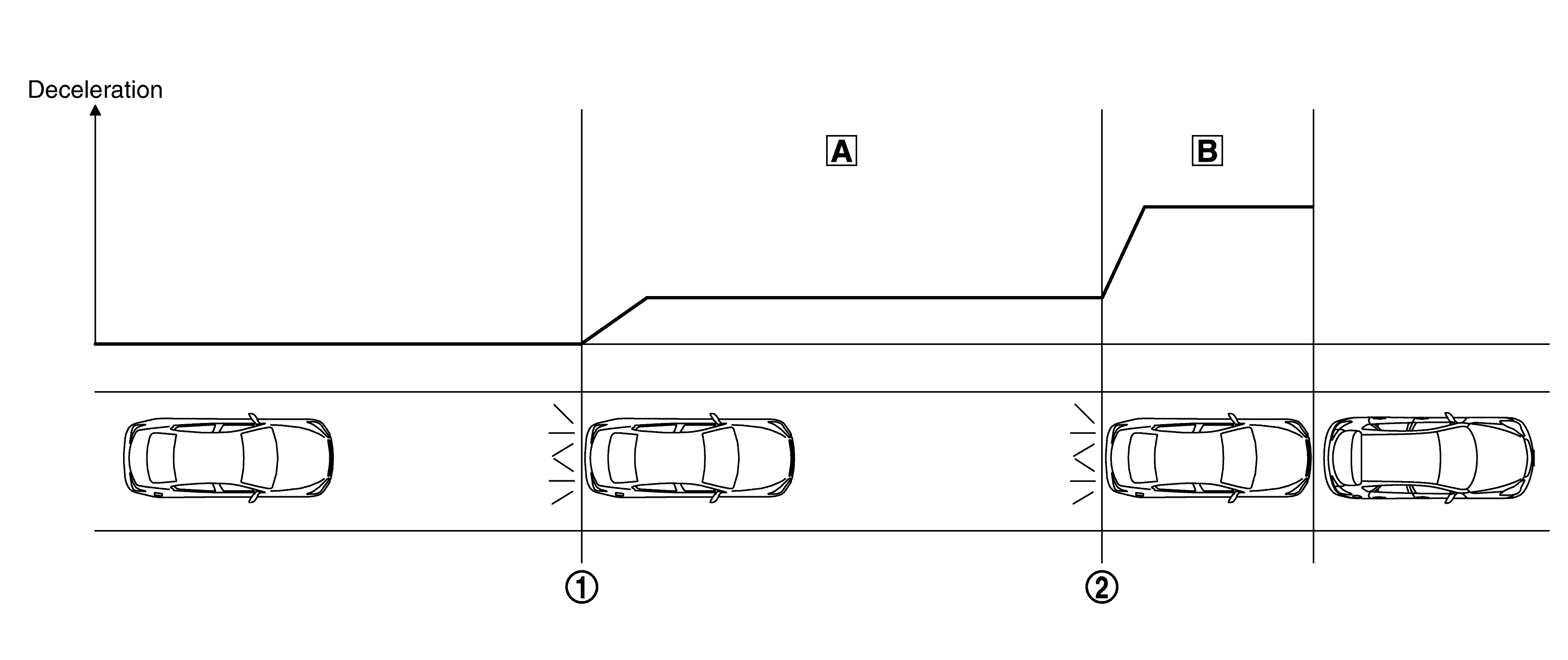

	Start of warning and partial brake		Start of harder brake
	Applies partial braking		Harder brake

Situation		Brake	Warning
No obstacle approached		No operation	--
	Start of warning and partial brake	Courtesy of NISSAN NORTH AMERICA, INC. Partial brake	Sounds the buzzer Blinks vehicle ahead indicator
	Start of harder brake	Harder brake Courtesy of NISSAN NORTH AMERICA, INC.	Sounds the buzzer (Higher pitched buzzer) Indicates AEB warning

CAUTION: It is the driver's responsibility to stay alert, drive safely and be in control of the vehicle at all times. As there is a performance limit, it may not provide a warning or brake in certain conditions.
