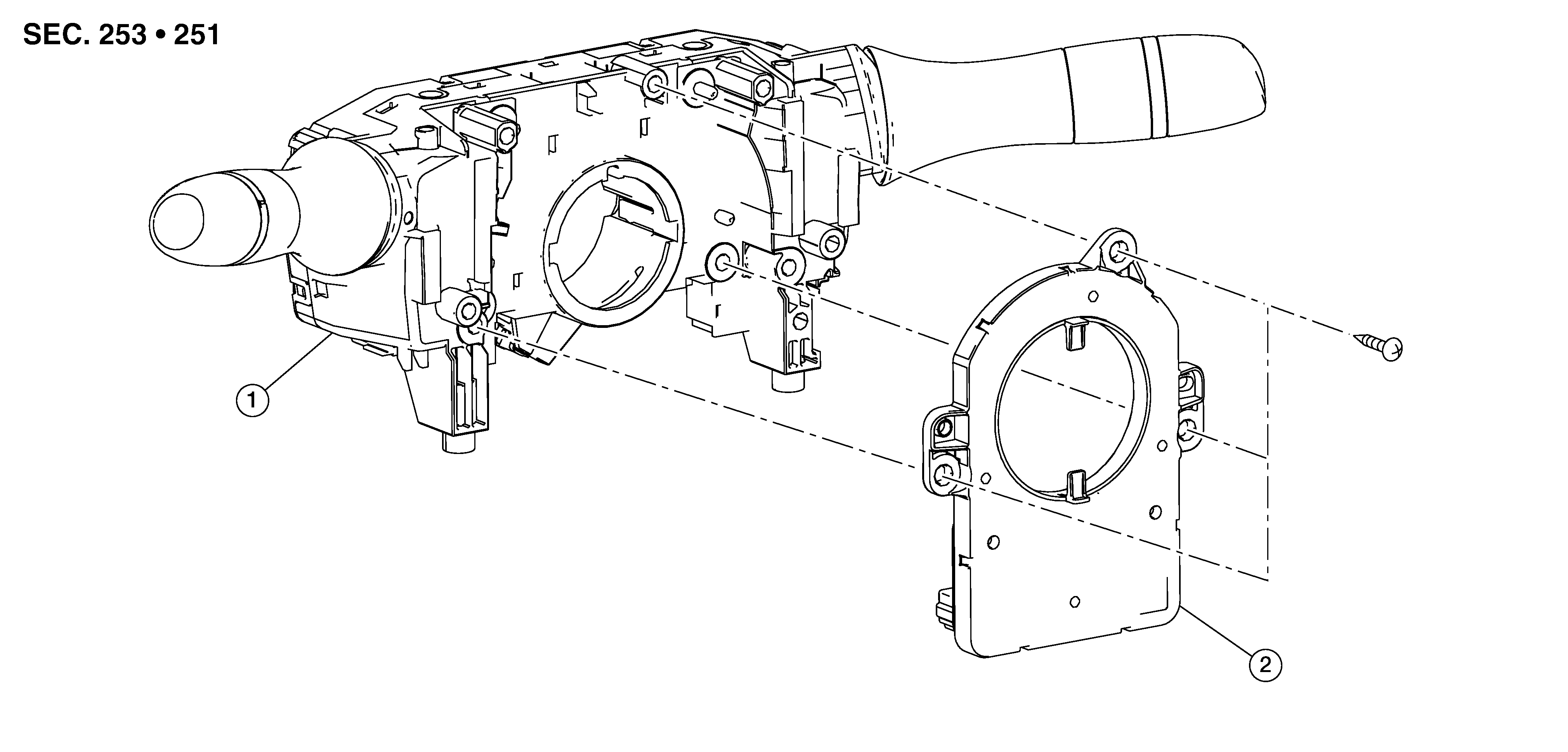

Exploded View

GNSALOIA0363Z-363Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination switch

2.

Chassis control module (with built in steering angle sensor)
