Exploded View

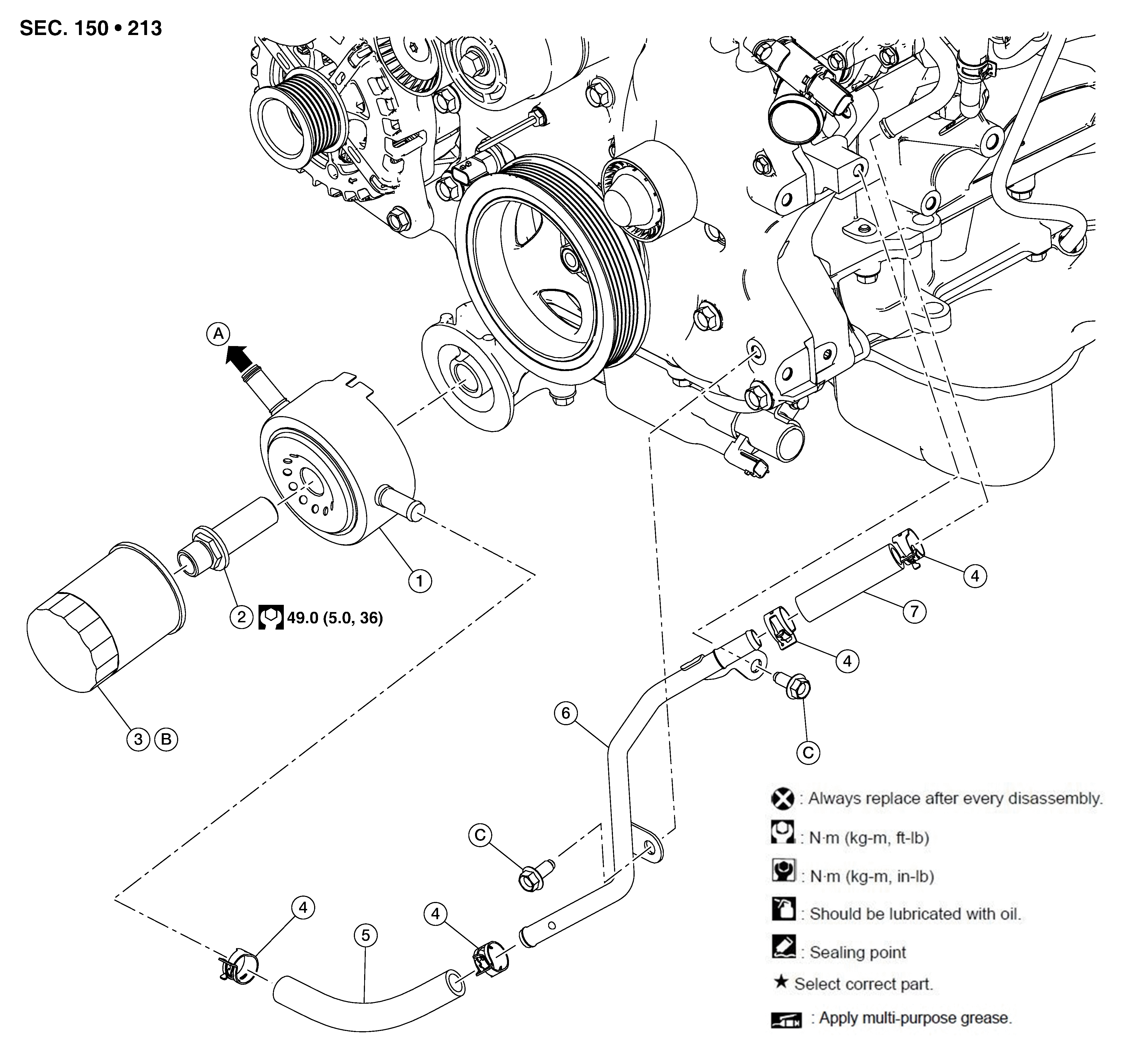

Fig 1: Oil Cooler Components With Torque Specifications
GNSALBIA0823Z-823Courtesy of NISSAN NORTH AMERICA, INC.

1.

Oil cooler

2.

Connector bolt

3.

Oil filter

4.

Clamp

5.

Water hose A

6.

Water pipe

7.

Water hose B

A.

To water hose. Refer to Exploded View .

B.

Refer to Removal and Installation .

C.

Refer to Removal and Installation .
