Removal and Installation: Removal

  1. Remove battery. Refer to Exploded View .
  2. Disconnect the harness connectors from ECM.
  3. Remove nuts (A), and then remove ECM (1).

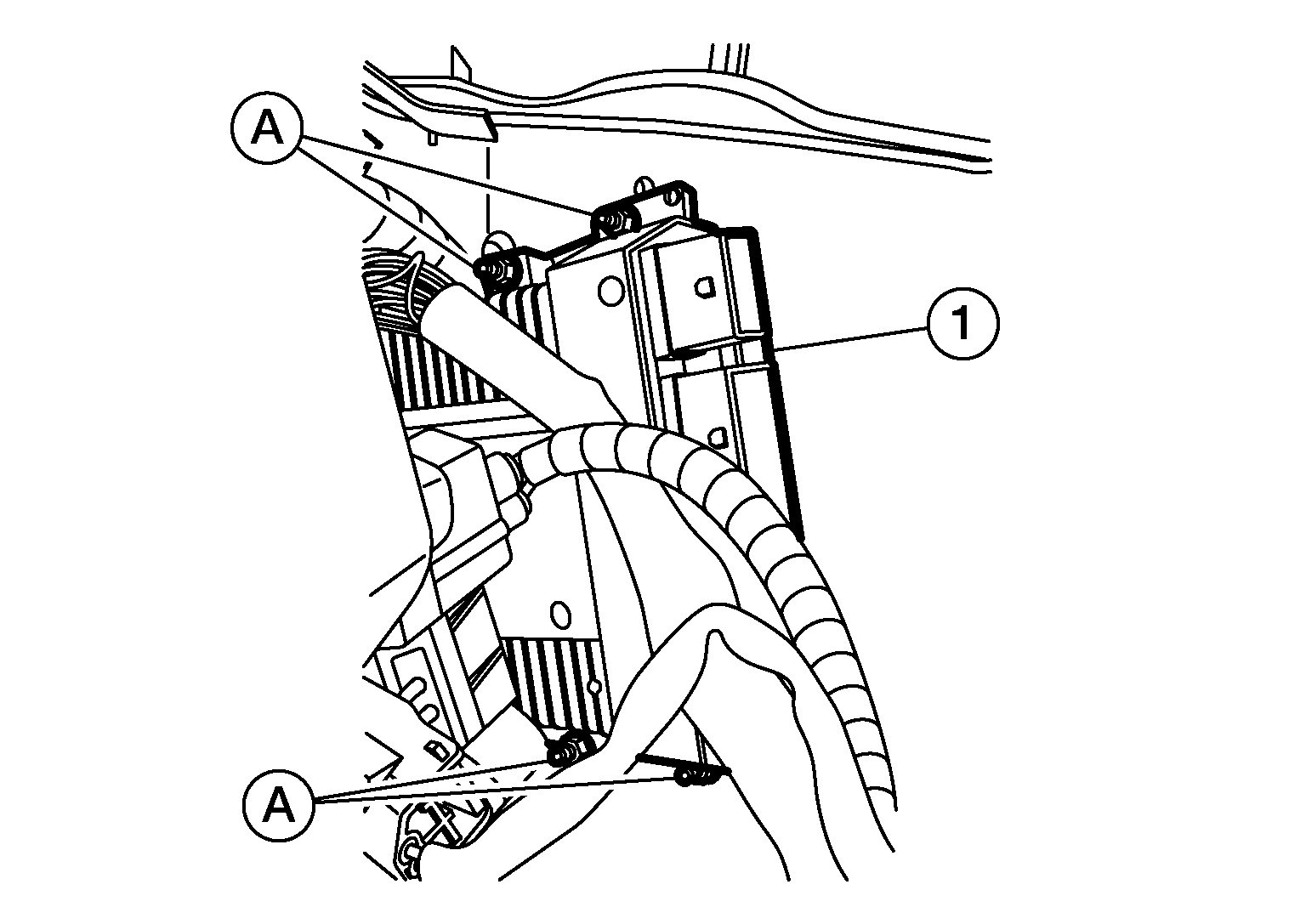

    GNSAWBIA0448Z-448Courtesy of NISSAN NORTH AMERICA, INC.
