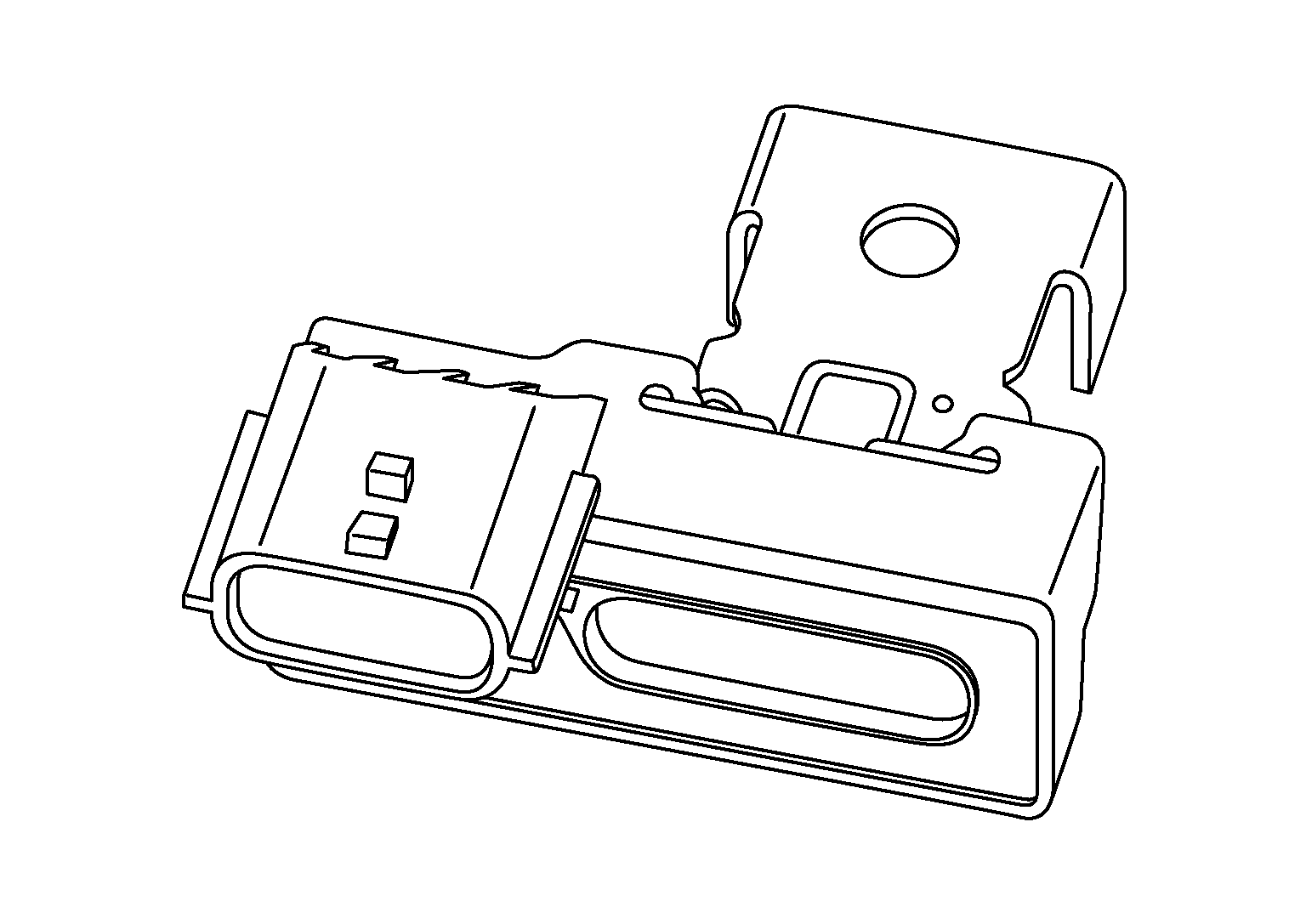

Battery Current Sensor (With Battery Temperature Sensor)
The battery current sensor is installed to the battery negative cable.
The sensor measures the charging/discharging current of the battery. Battery temperature sensor is integrated in battery current sensor.
Courtesy of NISSAN NORTH AMERICA, INC.
