Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

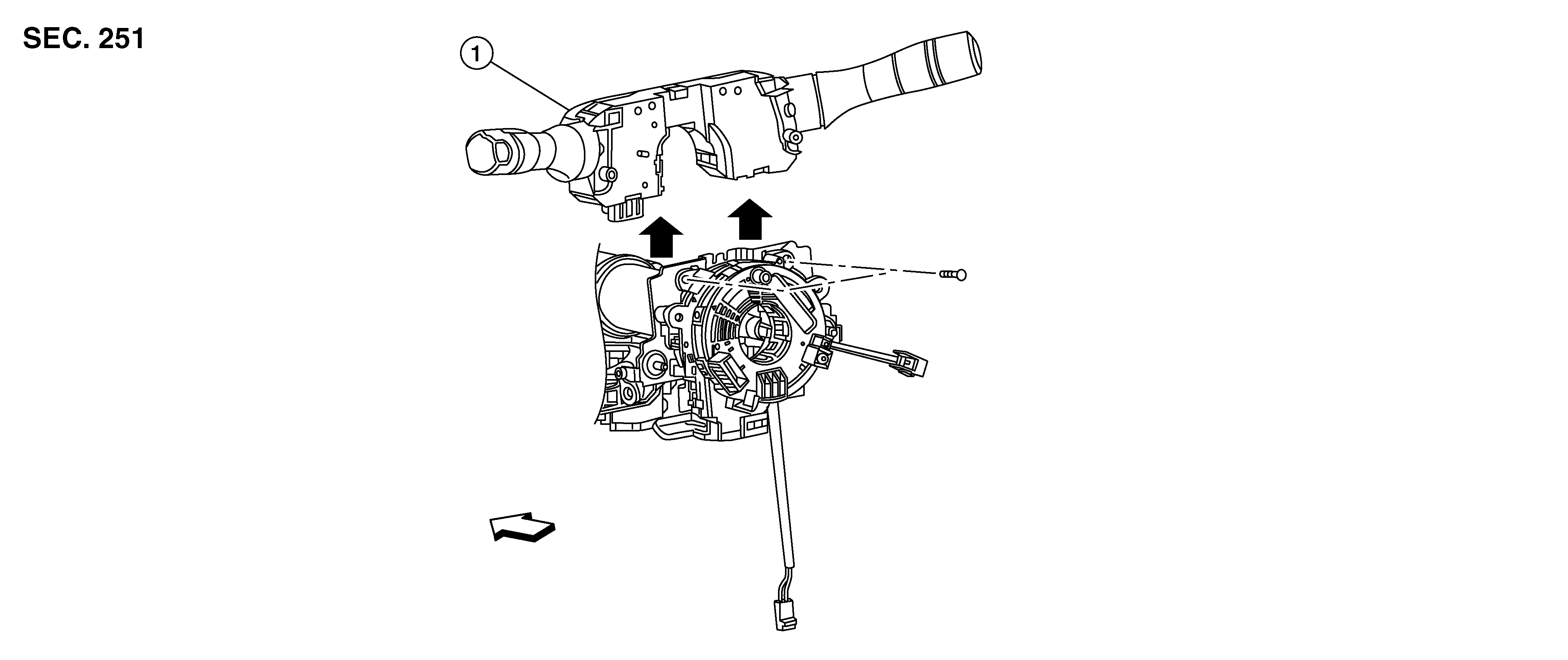

GNSALMIA0829Z-829Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination switch

SYMBOL

Front

NOTE: Shown with the steering wheel removed for clarity only.
